Broadcast Quality & Performance Recorder
Utilizing the highly reliable Compact Flash Card the HD-R1 records 44.1 to 96kHz, 16/24 bit PCM or MP3 files. The ability to control the HD-R1 remotely is provided via RS-232, Parallel, and RJ45 100Mbit Ethernet. File transfer can be accomplished via Ethernet and/or USB (type "A" connector).

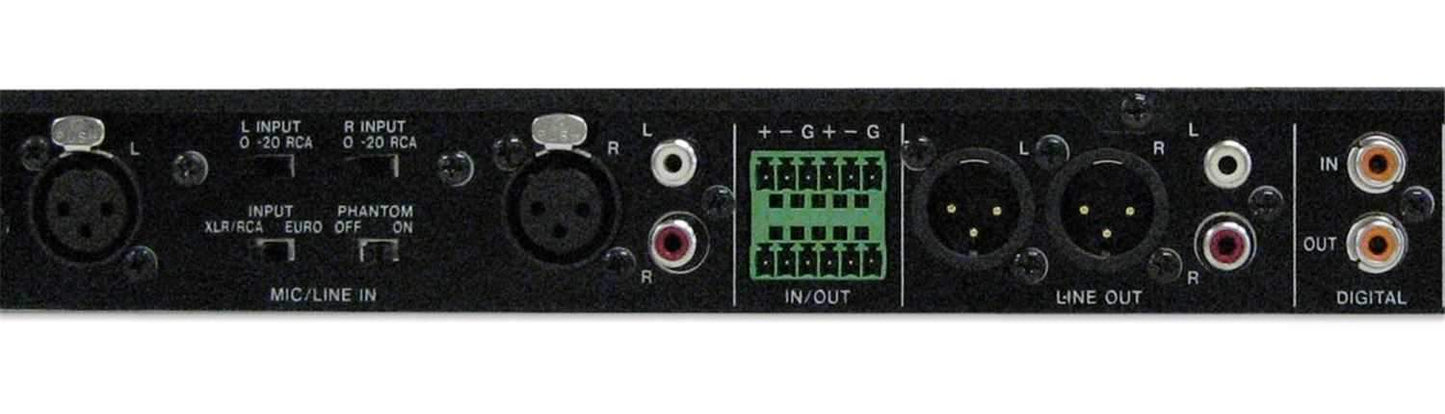

To further enhance the HD-R1's feature set, Mic preamps (w/20dB pad) and Phantom Power (rear-panel selectable) have been included. The HD-R1 offers a variety of contractor-friendly I/O options; such as, Unbalanced (RCA), Balanced (XLR and Euroblock), and S/PDIF Digital (Coaxial and Optical).
And of course... the traditional source device features are Power-on-Play, Front Panel Rotary Input Level Controls, Headphone Jack with level control, and a variety of Playback Modes.
Features:- 1U Rack-mount Solid-State Recorder
- Compact Flash Card
- USB host interface for USB Flash Cards
- Audio data formats: PCM (16/24 bit), MP3
- Sampling rates supported: 44.1, 48, 88.2, 96kHz
- Mic/Line XLR (with 20dB pad) balanced I/O
- Phantom Power (rear panel switch and front LED indicator)
- Euroblock terminal (Input and Output)
- Unbalanced RCA (Input and Output)
- Front panel rotary input level controls
- RS-232 interface for control
- RJ45 100Mbit/s Ethernet interface for file transfer and control
- 25-pin parallel remote control interface
- 16 Direct Play via D=SUb25 pin parallel interface
- Power on play (front panel selectable)
- S/PDIF Digital In/Out (Coaxial and Optical)
- Headphone Jack w/level control
- Input through and Auto Fade function
- Input monitoring / mixing of live stereo input along with playback
- Program Play, Folder Play, Shuffle Play, Interval Play modes, etc...
- Applicable Recording Media: Compact Flash
- Recording Format: WAV, MP3
- Quantization: 16/24 bit liner, MP3
- Sampling Frequency: 44.1/48/88.2/96kHz
- MIC/LINE INPUT - Connector: XLR-3-31 (1: GND, 2: HOT, 3: COLD), balanced + Euro Block Terminal, balanced
- LINE INPUT Connector: RCA, unbalanced
- LINE OUTPUTS - Connector: XLR-3-31 (1: GND, 2: HOT, 3: HOT), balanced + Euro Block Terminal, balanced + Connector: RCA, unbalanced
- COAXIAL INPUT - Connector: RCA, Format: IEC60958-2 (S/PDIF), Quantization: 16/24-bit
- HEADPHONE OUTPUT - Connector: 1/4" Stereo Phone Jack
- Serial Control Connector: D-Sub 9 pin
- Parallel Control COnnector: D-Sub 25 pin
- LAN Connector: RJ45
