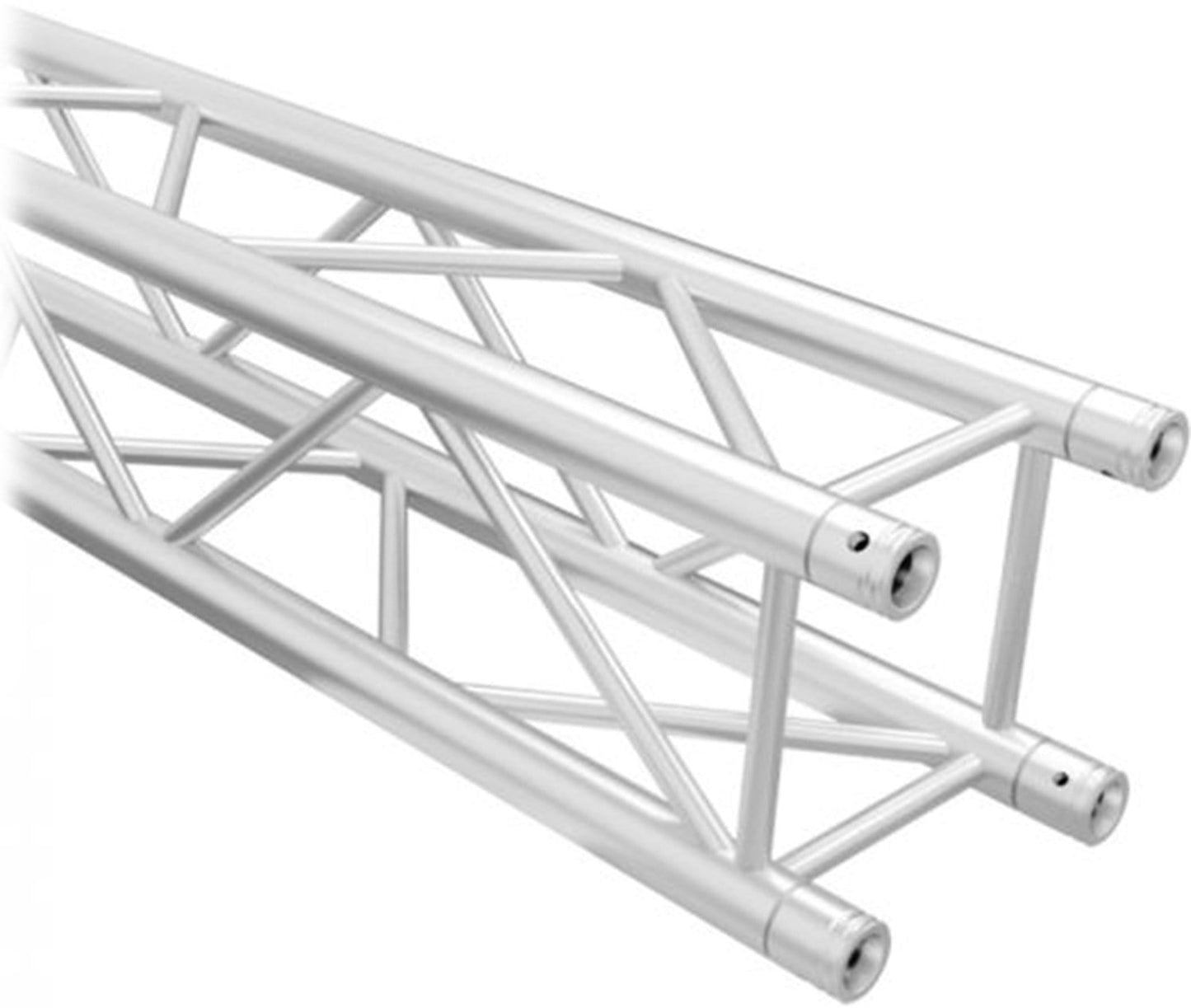

Square F34 Straight 7.38 Feet (2.25 Meters) 12-Inch Truss

The modular design of the F34 Square Aluminum Truss allows portability and ease of set-up. The trusses are connected using the simple, fast, and secure conical connection system, consisting of the conical receiver and the conical coupler, always secured together for safety, with the coupler pin, and r-clip. The F34 Square Aluminum Truss is a medium-duty truss that offers excellent weight loading capabilities while providing a decorative look. The F34 Truss Series are fabricated according to TUV specifications and made with the highest quality 6082-T6 alloy aluminum.

Specifications:

  • 7.38ft / 2.25m Overall Length
  • 11 7/16" (290mm) Overall Width
  • 2" (50mm) Outer Diameter Tubing
  • 3/4" (20mm) Diagonal Bracing
  • 0.08" (2mm) Wall Thickness
  • 13.60 kgs / 30 Lbs
