Description

Soundcraft 5042680 Vi3000 Digital Mixing System Console with Dante - 48kiloHertz

The Soundcraft Vi3000 features a completely redesigned control surface, offering 36 faders, 24 mono/stereo busses, and a sweeping black screen panel with four Vistonics II™ touchscreen interfaces that showcase sleek, updated 3D graphics. With four touchscreens, the Vi3000 is unique in its class, allowing simultaneous use by two engineers.

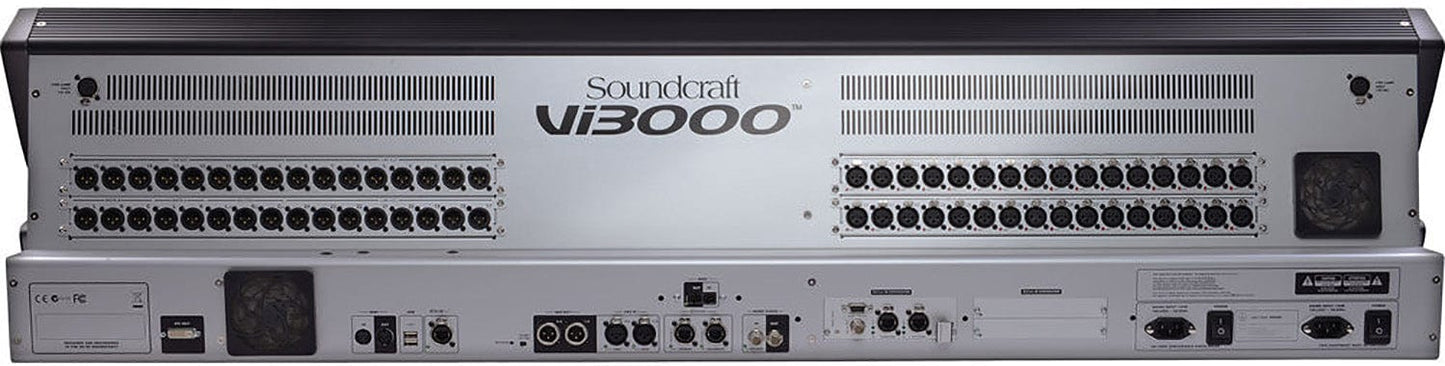

Connectivity is extensive with the Vi3000, including a full range of analog and digital inputs and outputs, MIDI, USB, Ethernet, DVI out, Dante/MADI record feed outputs, and a redundant power supply. It features two expansion bays for fitting MADI Stagebox cards to connect multiple Soundcraft Stagebox input expander modules. The console also supports the new Soundcraft Realtime Rack, a hardware/software unit developed with Universal Audio for access to 74 industry-standard UAD plug-ins. The Vi3000 is the first Soundcraft console to include a Dante interface as standard, ensuring seamless digital audio networking with Dante-enabled devices.

In addition to its expanded functionality, the Vi3000 retains key features of the Soundcraft Vi Series, such as FaderGlow™ illuminated faders that display different colors based on function, snapshot and cue storage and recall, compatibility with Soundcraft's ViSi app for remote control from an iPad, and built-in Lexicon reverb/delays, dbx compression, effects, and more.

Features:

  • Virtual Vi offline set up - Set up your shows offline and load them into the Vi3000 via USB
  • VM2 radio mic status monitoring - Monitor the status of SHURE ULX-D and QLX-D and HiQnet-compatible AKG radio mics directly from the console surface with realtime visual displays of battery life, RF status, mic muting and internal clipping
  • BSS DPR901ii Dynamic EQ - This acclaimed industry-standard DEQ is built in as standard with 8 instances available for inserting on any input or output channel. The DEQ can be used at the same time as the existing channel EQ and Dynamics sections
  • Copy/Paste channel bus and FX settings - Dedicated Copy and Paste buttons on the surface allow the settings of any channel, bus or FX section to be copied and pasted, dramatically cutting down the set up time
  • Copy/Paste processing elements - Operators can drill down to copy and paste even single processing elements, and the last paste operation can always be quickly reversed with an UNDO function
  • Settings Library - Along with a useful library of EQ and Dynamics settings, operators can store their own settings in the console or to a USB memory stick, making initial set up and transition between shows even easier
  • Sophisticated Cue List Management - Allows changes to be applied to multiple cues and recall scope to be set per snapshot
  • Advanced events integration - Cues can trigger or be triggered by MIDI or GPIO events, including MIDI timecode. Harman's HiQnet Venue recall function is tightly integrated within the Cue List
  • Automated microphone mixing - STUDER vMIX processing is built-in, with ability to seamlessly process up to two separate groups of 16 inputs, with clear and intuitive metering showing gain reduction
  • Snapshot crossfades - Snapshot recalls can use crossfades to transition smoothly from one setting to the next
  • ViSi Remote iPad® app - Control major functions and optimise your mix from anywhere in the venue. Adjust monitor levels from the stage. Includes control of EQ Dynamics and metering overview
  • All busses to stereo - All busses can be turned to stereo without tying up two busses, providing a massive 24 stereo mix capability – perfect for mixing large monitor applications
  • 4 Aux send points - With a total of 4 aux send points, monitor mix engineers have the flexibility to tailor mixes more closely to performers' requirements. Sends can be pre-EQ, precompressor, pre-fade or post-fade on a per channel/per bus basis
  • Aux VCA mode - VCA master faders can control the aux sends of their member channels on a per mix basis, with a FaderGlow illuminating in white to indicate the VCA's operation on the current mix. Monitor engineers can retain control of important global elements such as ambient mics while also having a monitor mix selected and adjusting groups of sources within the current mix using the Aux-VCAs. Blue illumination of FaderGlow indicates that the VCA is controlling the global channel level to all mixes
  • Auto-increase of ambient mic levels in monitor mixes between songs - Performers using in-ear monitors want to hear the audience between songs. No problem. Vi3000 has the facility to externally control the Gate or Ducking processing from a bus in the console, so all you have to do is insert a ducker on an ambient mic with an external source of the LR bus or a spare bus, and the audience level increases automatically when the performers stop playing

Specifications:

  • Frequency Response: Stagebox Mic input to Line output: +0/-1dB, 20Hz-20kHz
  • AES/EBU In to AES/EBU Out: +0/-0.2dB, 20Hz-20kHz
  • THD: 22Hz-22kHz
  • Stagebox Mic In (min gain) to Local Line Out: <0.003% @ 1kHz
  • Stagebox Mic In (max gain) to Local Line Out: <0.020% @ 1kHz
  • Local Line In to Line Out: <0.003% @ 1kHz
  • Mic Input E.I.N: <-126dBu (150Ω source)
  • Residual Noise: -91dBu Stagebox line output; no inputs routed, Mix fader @0dB
  • CMRR: 80dB @ 1kHz
  • Sampling Frequency: 48kHz
  • Latency: Stagebox Mic Input to Local Line output: < 2ms @48kHz
  • AES/EBU Input Sample Rate: 32-108kHz (with SRC enabled)
  • DSP Resolution: 40-bit floating point
  • Internal Clock Accuracy: < +/- 50ppm
  • Internal Clock Jitter: < +/- 2ns
  • External Sync: BNC Wordclock
  • Input & Output Levels: Mic Inputs: +28dBu max
  • Input & Output Levels: Line Inputs: +22dBu max
  • Input & Output Levels: Line Outputs: +22dBu max
  • Input & Output Levels: Nominal Operating Level: +4dBu (-18dBFS)
  • Input & Output Impedances: Mic Inputs: 2k7Ω
  • Input & Output Impedances: All other analogue Inputs: >10kΩ
  • Input & Output Impedances: Line Outputs: <75Ω
  • Input & Output Impedances: AES/EBU Outputs: 110Ω
  • Oscillator: 20Hz to 20kHz/Pink/White Noise, variable level
  • Oscillator: Stagebox HP Filter: 80Hz fixed, 12dB per octave
  • Oscillator: Channel HP Filter: 20Hz-600Hz, 18dB per octave
  • Oscillator: Channel LP Filter: 1kHz-20kHz, 18dB per octave
  • EQ (Inputs and Bus Outputs): HF: 20Hz-20kHz, +/-18dB, Q=0.3-8.7 or shelving
  • EQ (Inputs and Bus Outputs): Hi-Mid: 20Hz-20kHz, +/-18dB, Q=0.3-8.7
  • EQ (Inputs and Bus Outputs): Lo-Mid: 20Hz-20kHz, +/-18dB, Q=0.3-8.7
  • EQ (Inputs and Bus Outputs): LF: 20Hz-20kHz, +/-18dB, Q=0.3-8.7 or shelving
  • Metering: Internal 20-segment LED bargraphs plus 9-segment gain reduction meters for all inputs and outputs. Peak hold variable from 0-2s.
  • Mains Voltage Operating Range: 90-264V, 47-63Hz, auto-ranging
  • Mains Power Consumption: 300W
  • Temperature/Humidity Range: Operating Temperature Range: 0°C to 45°C (32°F to 113°F)
  • Temperature/Humidity Range: Relative Humidity: 0% - 90%, non-condensing Ta=40°C (104°F)
  • Temperature/Humidity Range: Storage Temperature Range: -20°C to 60°C (-4°F to 140°F)
  • Height (Console Only): 351mm (13.8")
  • Width (Console Only): 1446mm (56.9")
  • Depth (Console Only): 803mm (31.6")
  • Weight (Console Only): 54kg (119lb)
  • Height (with standard shipping carton): 595mm (23.5")
  • Width (with standard shipping carton): 1580mm (62.2")
  • Depth (with standard shipping carton): 950mm (37.4")
  • Weight (with standard shipping carton): 96kg (212lb)
  • Height (with factory flightcase): 1117mm (44.0")
  • Width (with factory flightcase): 1530mm (60.3")
  • Depth (with factory flightcase): 530mm (20.1")
  • Weight (with factory flightcase): 141kg (311lb)
