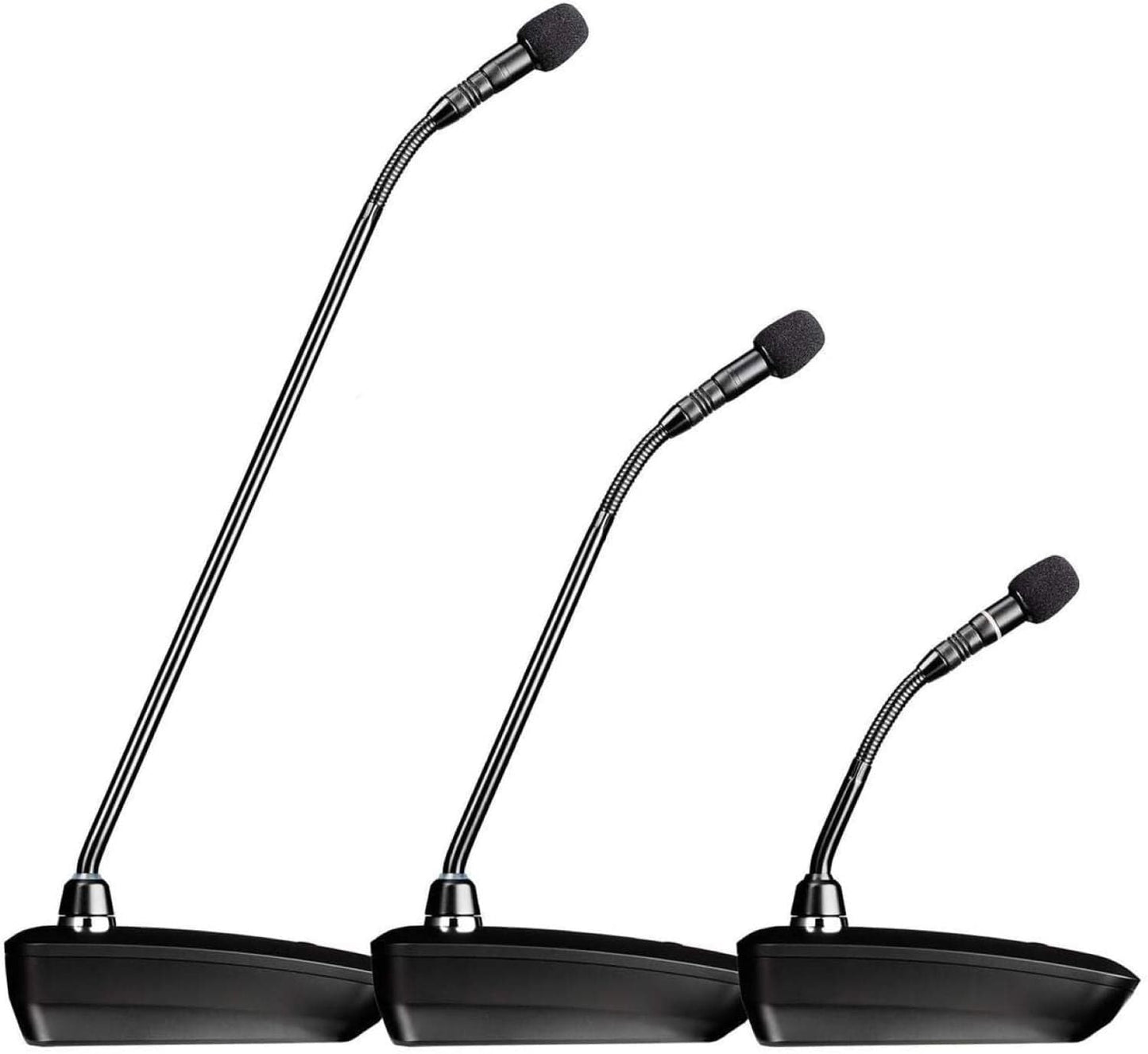

Shure ULXD8 Wireless Gooseneck Base Transmitter - G50 Band
The black Shure ULXD8 is a digital wireless base transmitter for Shure Microflex gooseneck microphones (available separately) and is compatible with ULX-D receivers. The gooseneck design allows you to place the mic close to the speaker and above the table surface, away from paper rustling or other noises. Ideal for use where wired mics are impractical, this tabletop transmitter is designed for quick setup and tear down, and can be put away in a docking station (available separately) for storing and charging when the mic is not in use.
Features:
- For ULX-D Digital Wireless Systems
- Works with Shure Microflex Gooseneck Mic
- 1/10/20mW RF Output Power
- Configurable Mute Button with Status LED
- High-Pass Filter Reduces Noise
- Secure AES-256 Encryption
- Networked Intelligent Charging
- 9 Hr with SB900A Rechargeable Battery
Specifications:
- RF Frequency Band: G50 (470 to 534 MHz)
- RF Bandwidth: 64 MHz
- Frequency Step Size: 25 kHz
- RF Channel Scanning: Auto-Scan
- Max Operating Range: 328.1' / 100 m
- Sample Rate/Resolution: 48 kHz / 24-Bit
- Latency: < 3 ms
- Encryption: AES 256
- Modulation: Proprietary
- Transmitter:
- Transmitter Type: Gooseneck Base
- RF Output Power: 1 / 10 / 20 mW
- Audio I/O: 1 x Proprietary 6-Pin Female Unbalanced Input (Lockable)
- Muting: Programmable Mute Switch
- Gain Range: 0 to 21 dB (3 dB Steps)
- Signal Processing: High-Pass Filter (-12 dB at 150 Hz, 12 dB/Octave Slope)
- Sync Method: IR
- Antenna: 1 x Internal
- Power Requirements: Battery
- Battery Type:
- 2 x AA (Included)
- 1 x Shure SB900A (Not Included)
- Approx. Battery Life:
- Med.: 8 Hours (Alkaline)
- Med.: 9 Hours (Lithium Shure SB900A)
- USB/Lightning I/O: 1 x USB-A (Charging, Host Connection)
- Display & Indicators: 1 x LED (Mute)
- Housing: Plastic
- Operating Temperature: 0 to 122°F / -17 to 50°C
- Dimensions: 3.1 x 1.6 x 5.4" / 78 x 41 x 137 mm
- Weight: 10.3 oz / 292 g (with Batteries)
- Packaging Info:
- Package Weight: 0.985 lb
- Box Dimensions (LxWxH): 6.7 x 4.4 x 3.25"
