Shure ULXD6 Wireless Boundary Microphone Transmitter - X52 Band

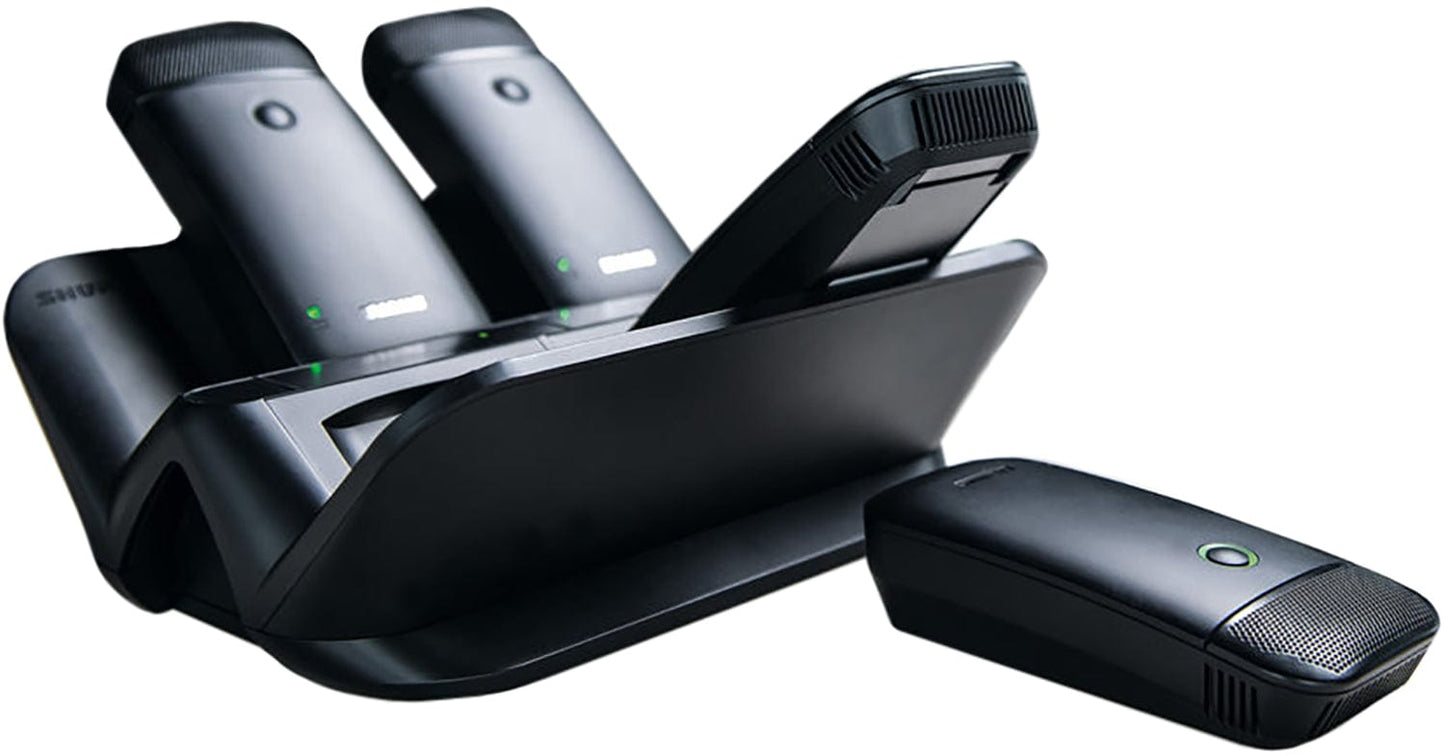

The black Shure ULXD6/C is a digital tabletop transmitter equipped with a cardioid boundary mic and compatible with ULX-D receivers. The cardioid polar pattern focuses audio capture in front of the mic and rejects much of the off-axis ambient noise, great for picking up one speaker or allowing two panelists sitting next to each other at a large table to share a single mic. The unit's low profile is ideal for applications such as video-conferencing where minimum visibility is required. A smart choice for situations where wired mics are impractical, this tabletop transmitter enables quick setup and tear down, and can be put away in a docking station (available separately) for storing and charging when the mic is not in use.
Features:
- For ULX-D Digital Wireless Systems
- Built-In Cardioid Boundary Mic
- 1/10/20mW RF Output Power
- Configurable Mute Button with Status LED
- High-Pass Filter Reduces Noise
- Secure AES-256 Encryption
- Networked Intelligent Charging
- 9 Hr with SB900A Rechargeable Battery
Specifications:
- RF Frequency Band: X52 (902 to 928 MHz)
- RF Bandwidth: 64 MHz
- Frequency Step Size: 25 kHz
- RF Channel Scanning: Auto-Scan
- Max Operating Range: 328.1' / 100 m
- Sample Rate/Resolution: 48 kHz / 24-Bit
- Latency: < 3 ms
- Encryption: AES 256
- Modulation: Proprietary
- Transmitter:
- Transmitter Type: Tabletop
- RF Output Power: 1 / 10 / 20 mW
- Audio I/O: No
- Muting: Programmable Mute Switch
- Gain Range: 0 to 21 dB (3 dB Steps)
- Signal Processing: High-Pass Filter (-12 dB at 150 Hz, 12 dB/Octave Slope?)
- Sync Method: IR
- Antenna: 1 x Internal
- Power Requirements: Battery
- Battery Type:
- 2 x AA (Included)
- 1 x Shure SB900A (Not Included)
- Approx. Battery Life:
- Med.: 8 Hours (Alkaline)
- Med.: 9 Hours (Lithium Shure SB900A)
- USB/Lightning I/O: 1 x USB-A (Charging, Host Connection)
- Display & Indicators: 1 x LED (Mute)
- Housing: Plastic
- Dimensions: 2.4 x 1.3 x 4.5" / 62 x 34 x 114 mm
- Weight: 8.5 oz / 241 g (with Batteries)
- Microphone:
- Microphone Type: Boundary
- Sound Field: Mono
- Polar Pattern: Cardioid
- Packaging Info:
- Package Weight: 0.95 lb
- Box Dimensions (LxWxH): 6.6 x 4.3 x 3.3"
