Description

Shure ULXD6/O=-H50 Omnidirectional Wireless Boundary Microphone for ULXD and QLXD Systems - H50 Band

Shure's ULXD6 Boundary Microphone Transmitter features a low-profile design ideal for tabletop use at meetings and events where wired microphones are impractical. When paired with a ULX-D or QLX-D digital receiver, the ULXD6 forms a system with low latency, long transmission range, and high channel count, ensuring exceptional performance in large meeting venues requiring live sound reinforcement.

Features:

  • Offers up to 9 hours of continuous battery life with Shure rechargeable batteries and over 8 hours with AA alkaline batteries
  • Works with the SBC850 and SBC450 Networked Charging Stations
  • Very low latency makes the ULXD6 ideal for meetings that require live sound reinforcement
  • Long transmission range (up to 300 feet/100 meters)for reliable performance in very large meetings at conference and convention centers
  • Compatible with the full line of Shure antennas and distribution components, allowing up to 200 ULXD6 boundary microphone transmitters to be used with just one pair of receiving antennas for efficient setup
  • Compatible with ULX-D® and QLX-D® digital receivers
  • Optional SB900A rechargeable batteries provide up to 9hours of runtime
  • Compatible with standard AA alkaline batteries

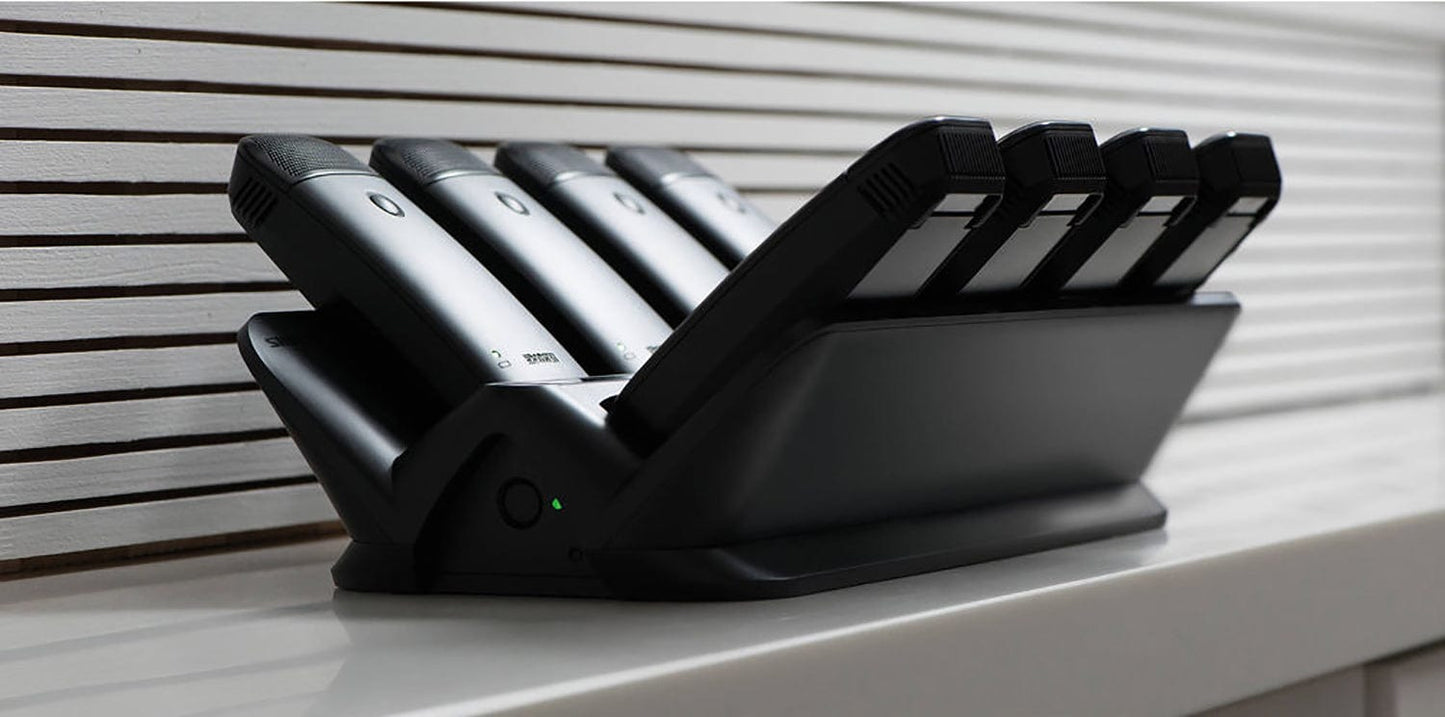

  • Optional SBC450 (4-bay) and SBC850 (8-bay) Networked Charging Stations allow convenient docking and charging when transmitters are not in use
  • Configurable Mute button (Toggle, Push-to-Mute, Push-to-Talk, disabled) and Mute LED behavior
  • Adjustable RF power, high-pass filter, and power lock settings

Specifications:

  • Gain Adjustment Range: 0 to 21 dB (in 3 dB steps)
  • Battery Type / Runtime @ 10 mW:
    • Shure SB900/SB900A Rechargeable Li-Ion / Up to 9 hours 20 minutes
    • AA batteries 1.5 V / Up to 8 hours 40 minutes
  • Dimensions (H x W x D): 113.94 mm x 61.83 mm x 34.28 mm (4.48 in. x 2.43 in. x 1.35 in.)
  • Weight: 241 g with AA batteries
  • Operating Temperature Range: 0°C (32°F) to 45°C (113°F)
  • Housing: Molded Plastic
  • RF Output:
    • Antenna Type: Integrated PIFA
    • Impedance: 50 Ω
    • Occupied Bandwidth:
    • Modulation Type: Shure proprietary digital
  • Power: 1 mW, 10 mW, 20 mW (varies by region)
