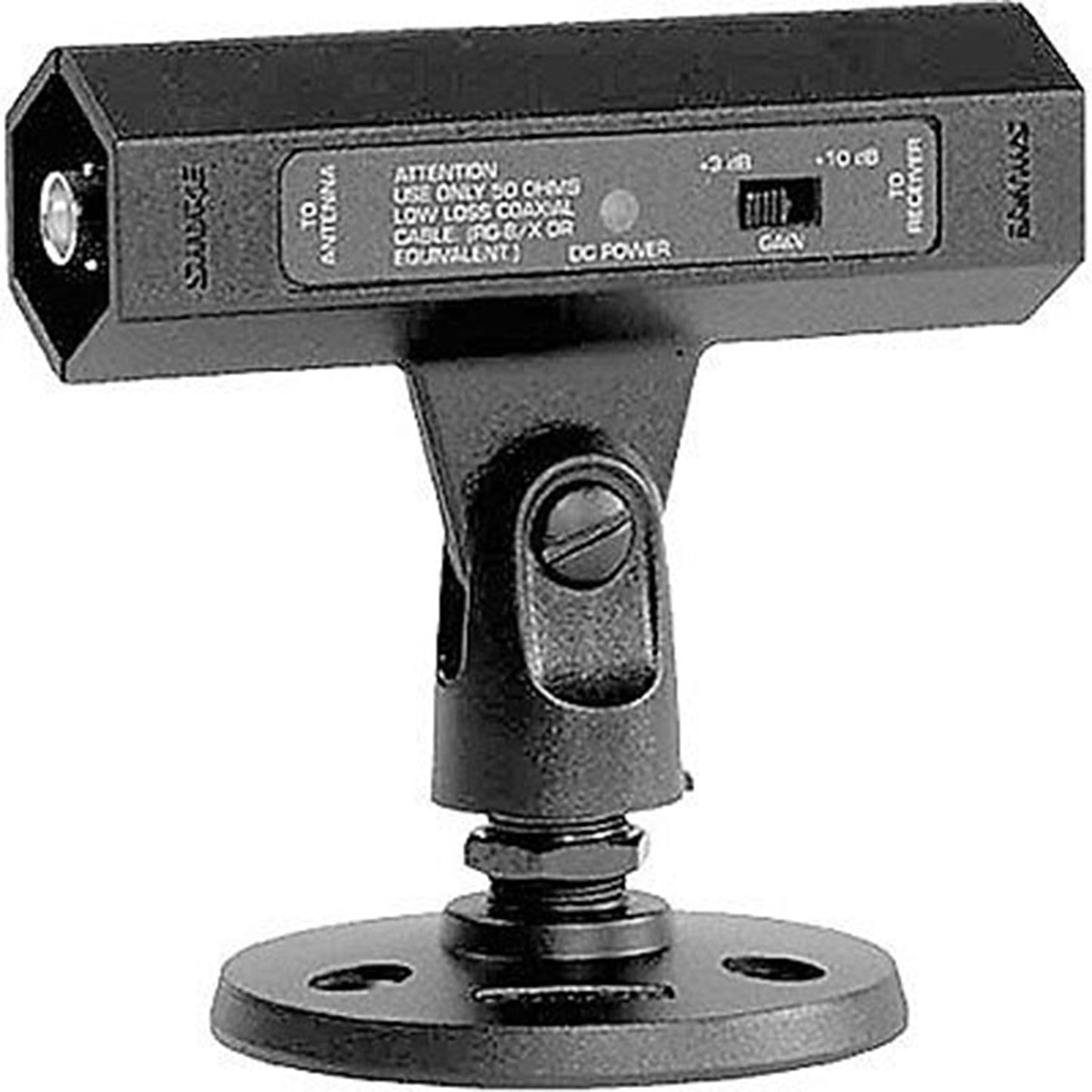

Shure UA830USTV Wideband Antenna Amplifier

Shure UA830USTV Wideband Antenna Amplifier

The Shure UA830USTV is a low-noise, in-line antenna amplifier intended for remote-mounting antennas to a Shure Model U4 or ULX receiver or Model UA845, or UA844 distribution amplifier in a large installation, effectively shortening the distance from the transmitters. The unit receives power through its output port from the Shure receiver or distribution amplifier. When an antenna is remote-mounted, the UA830USTV amplifies the received radio signals to compensate for insertion loss in the coaxial cable. A gain selector switch adjusts for longer lengths of coaxial cable.

Features:

• Compatible with the Shure Model U4 or ULX wireless microphone receiver and the Shure Model UA845, or UA844 Antenna Distribution System
• Mountable on supplied desk-/wall-mount or on a microphone stand
• Two-position gain selector switch to adjust for longer coaxial cable lengths (3 dB position for cables under 25' (7.5 m), 10 dB position for cables over 25' (7.5 m)
• Isolates antennas from cable interactions
• Extremely durable under the heaviest use
• Shure quality, ruggedness, and reliability

Specifications

• Shure UA830USTV Specs:
  • Operating Frequency: 470-698MHz
  • Connection Type: Coax (PG-8)
• Packaging Info:
  • Package Weight: 1.3 lb
  • Box Dimensions (LxWxH): 11 x 5.4 x 3.4"
