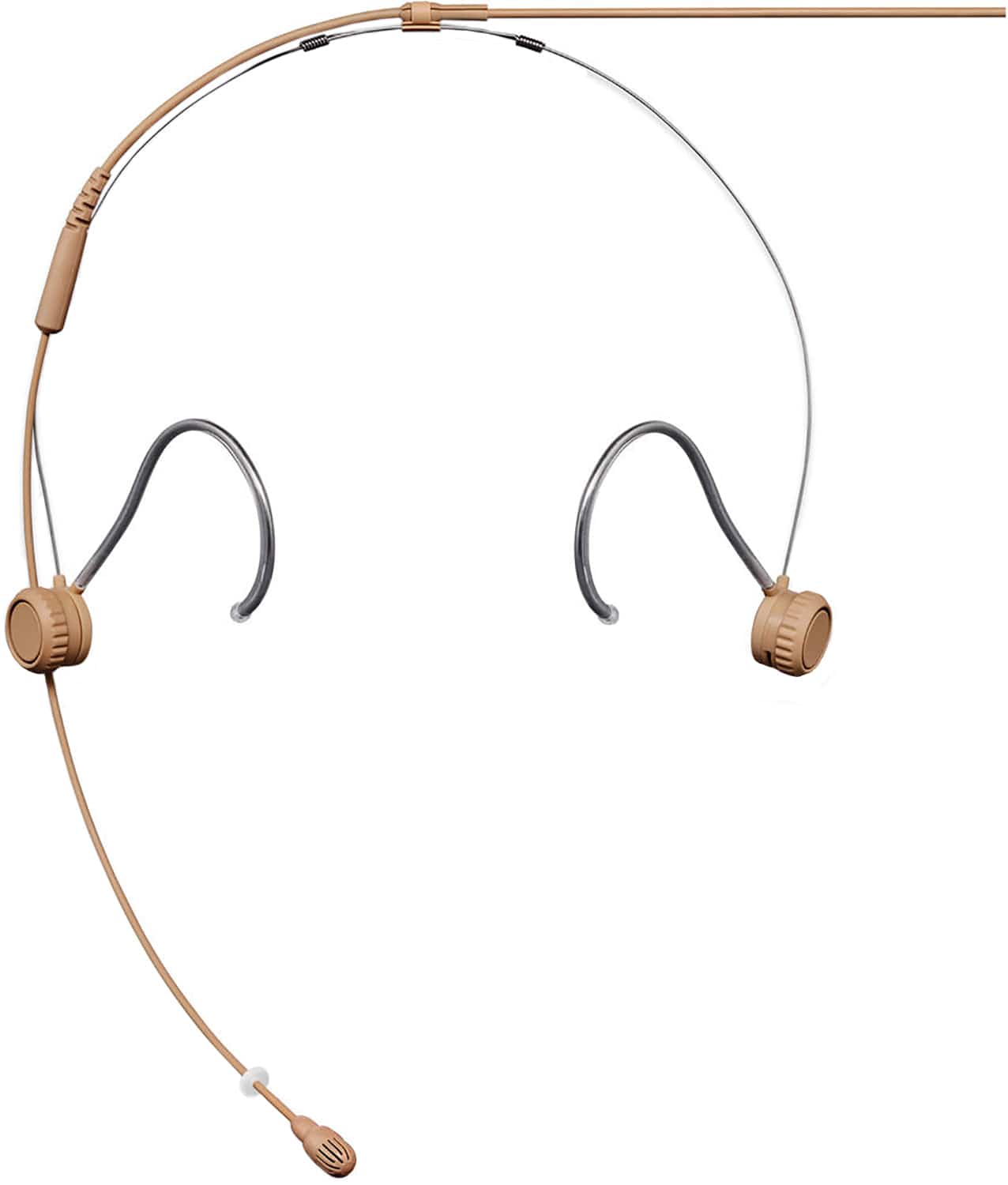

Shure TH53C/O-MDOT TwinPlex TH53 Subminiature Omnidirectional Headset Microphone with MDOT - Cocoa
The TwinPlex™ TH53 offers the natural sound of the TwinPlex element combined with the ease of an ultra-light and fully adjustable headset frame. With an innovative clutch system, the TH53 headset allows for quick adjustment in boom arm length and pitch—all with a simple turn of a knob. Plus, switchable sides and a durable 1.6 mm cable with redundant ground round out this professional headset that overachieves in reliability, audio quality, and comfort.
Features:
- Comfortable, lightweight, and fully adjustable headset for use in theater, broadcast, and speech applications
- Innovative clutch system allows for fast boom arm length and pitch adjustment
- Twice the surface area of other subminiature microphones for pristine, natural response and robust low-frequency response due to the patent pending dual-diaphragm design
- Improved off-axis consistency yields accurate reproduction regardless of vocal source position or movement
- Best-in-class low self-noise and dynamic range for cleaner audio production
- Interchangeable sweat- and moisture-resistant frequency caps prevents sweat-outs due to an invisible syperhydrophobic nanoscopic coating
- Paintable 1.6 mm cable that is immune to memory effect and kinks
- Dual redundant ground in cable serves as secondary shield for longevity
- Sound signature: Natural
- Sensitivity: Low
- Colors: Cocoa
- Connectors: MicroDot
- Accessories: Ships with accessories and storage case
Specifications:
- Microphone Capsule: Dual-Diaphragm, Prepolarized Condenser
- Polar Pattern: Omnidirectional
- Frequency Response: 20 Hz to 20 kHz
- Sensitivity: -45.0 dBV (5.62 mV) at 1kHz
- Self-Noise, A-Weighted, Equivalent Acoustical: 24.5 dB SPL-A
- Signal-To-Noise Ratio: 69.5 dB
- Output Clipping Level: 3.0 dBV,1 kHz at 1% THD, typical
- Maximum SPL: 142.0 dB SPL 1 kHz at 1% THD, typical
- Dynamic Range: 117.5 dB typical
- Microphone Current Draw: 120 to 240 μA, typical
- Bias Voltage Recommended Operating Voltage: 5 VDC
- Housing Molded ABS
- Polarity: Positive pressure at diaphragm leads to negative voltage with respect to ground
- Cable Diameter: 1.6 mm
- Cable Length: 66 in. (1.67 m)
- Microphone Length: 19 mm
- Microphone Diameter: 5.6 mm
- Net Weight with Cable:
- Boom arm, with cable: 12.0 g (0.42 oz.)
- Headset frame: 6.0 g (0.21 oz.)
- Microphone Capsule: Dual-Diaphragm, Prepolarized Condenser
- Polar Pattern: Omnidirectional
- Frequency Response: 20 Hz to 20 kHz
- Sensitivity: -45.0 dBV (5.62 mV) at 1kHz
- Self-Noise, A-Weighted, Equivalent Acoustical: 24.5 dB SPL-A
- Signal-To-Noise Ratio: 69.5 dB
- Output Clipping Level: 3.0 dBV,1 kHz at 1% THD, typical
- Maximum SPL: 142.0 dB SPL 1 kHz at 1% THD, typical
- Dynamic Range: 117.5 dB typical
- Microphone Current Draw: 120 to 240 μA, typical
- Bias Voltage Recommended Operating Voltage: 5 VDC
- Housing Molded ABS
- Polarity: Positive pressure at diaphragm leads to negative voltage with respect to ground
- Cable Diameter: 1.6 mm
- Cable Length: 66 in. (1.67 m)
- Microphone Length: 19 mm
- Microphone Diameter: 5.6 mm
- Net Weight with Cable:
- Boom arm, with cable: 12.0 g (0.42 oz.)
- Headset frame: 6.0 g (0.21 oz.)
