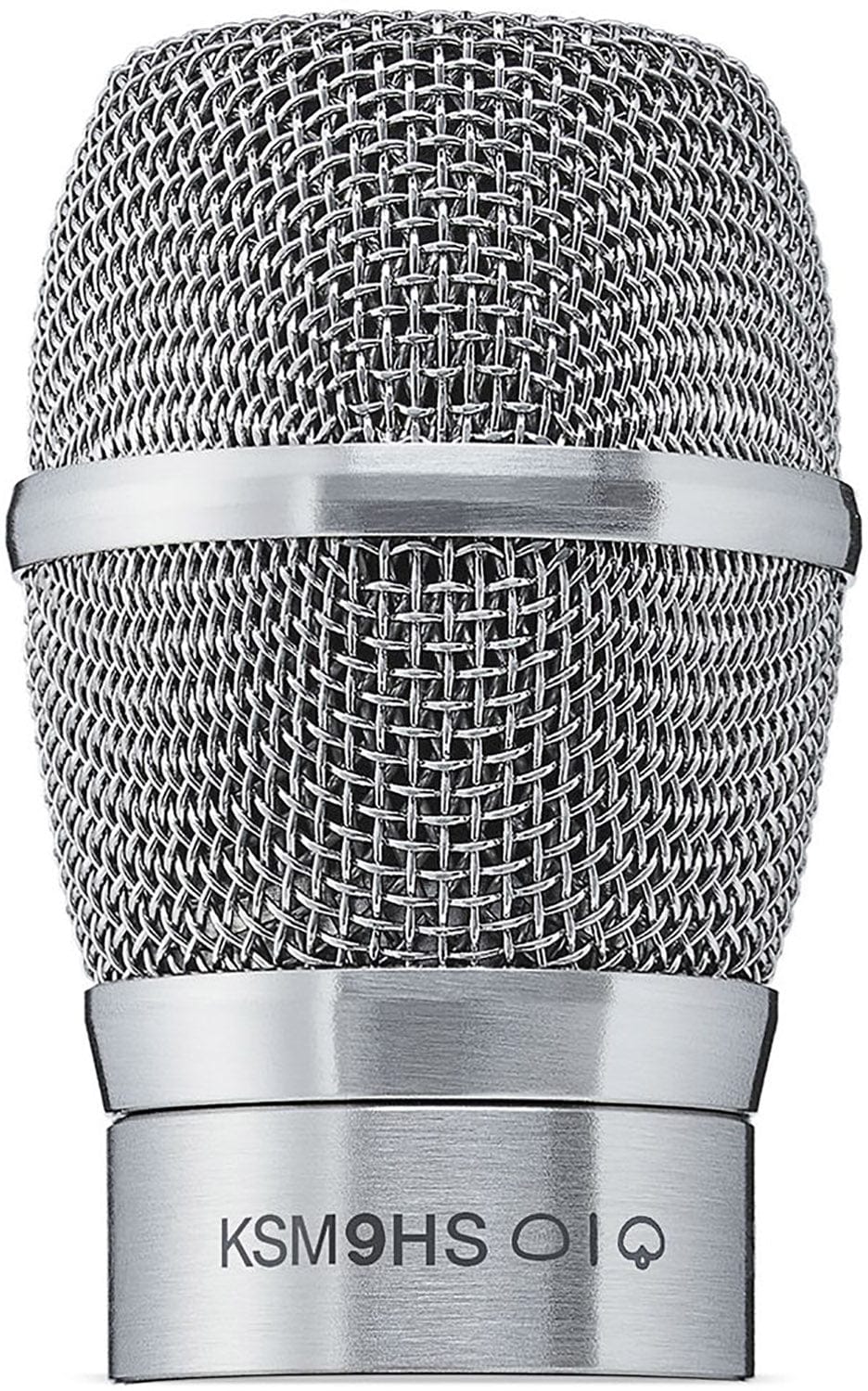

Shure RPW190 Replacement Wireless Capsule for KSM9HS Microphone - Nickel

This Shure Wireless Head in nickel serves as a replacement for a damaged or malfunctioning component in a KSM9HS handheld condenser microphone. It boasts dual 3/4" gold-layered, low-mass Mylar diaphragms and offers switchable hypercardioid and subcardioid polar patterns, providing versatility for various performance needs. With a wide frequency response of 50 Hz to 20 kHz, the capsule enriches vocal quality and character.

Features:

• For KSM9HS Handheld Condenser Microphone
• Hypercardioid/Subcardioid Polar Pattern
• 50 Hz to 20 kHz Frequency Response
• Dual 3/4" Gold-Layered Mylar Diaphragms

Specifications:

• Element Type: Condenser
• Polar Pattern: Hypercardioid / Subcardioid/Wide Cardioid
• Performance
  • Frequency Range: 50 Hz to 20 kHz
• Maximum SPL:
• Hypercardioid: 150.8 dB SPL (2.5-Kilohm Load): 150.9 dB SPL (1-Kilohm Load)
• Subcardioid/Wide Cardioid: 153.0 dB SPL (2.5-Kilohm Load): 153.1 dB SPL (1-Kilohm Load)
• Off-Axis Rejection: >60 dB
• Sensitivity:
  • Hypercardioid: -50.5 dBV/Pa at 1 kHz
  • Subcardioid/Wide Cardioid: -53.0 dBV/Pa at 1 kHz
• Dynamic Range:
  • Hypercardioid: 130.8 dB (2.5-Kilohm Load): 130.1 dB (1-Kilohm Load)
  • Subcardioid/Wide Cardioid: 130.1 dB (2.5-Kilohm Load): 130.6 dB (1-Kilohm Load)
• Signal-to-Noise Ratio:
  • Hypercardioid: 73.3 dB
  • Subcardioid/Wide Cardioid: 71.3 dB
