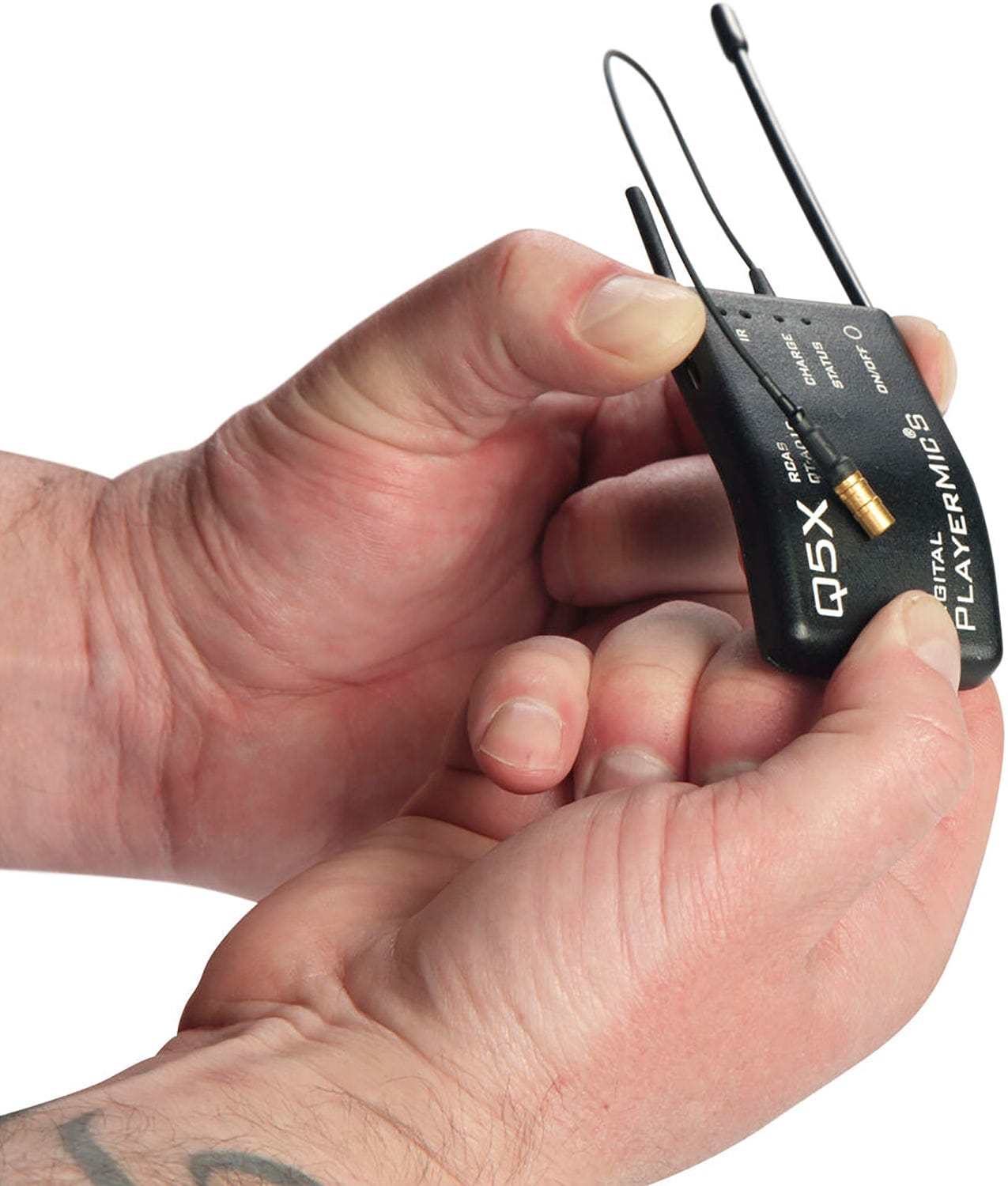

Shure QTAD10PS=-G56 AD10PS PlayerMic Short Transmitter - 470-636 MegaHertz

Designed for athletes and active performers, the Shure Q5X QT-AD10PS PlayerMic Short is an ultra-compact, thin, and flexible digital wireless bodypack transmitter that is compatible with Axient Digital series receivers. This small transmitter features a rugged and bendable polymer casing, designed to be both safe and extremely comfortable to wear, allowing athletes, performers, and entertainers to forget it's even there. The PlayerMic Short includes a LEMO 1-pin connector to accommodate a compatible lavalier (sold separately) and is ideal for a wide range of applications, including location shooting, reality TV, entertainment events, and sports broadcasting.

Features:

  • For Athletes, Performers & Entertainers
  • For Axient Digital Systems
  • Thin, Flexible & Rugged Polymer Chassis
  • LEMO 1-Pin Connector
  • Gain Adjustment, Detachable Antennas
  • 2/10/20mW RF Output, AES-256 Encryption
  • 3520 Scannable Frequencies
  • High-Density Mode for More Channels
  • 4 Hours on Built-In Rechargeable Battery
  • Requires MicCommander for Setup

Specifications:

  • RF Frequency Band: 470-636 MHz
  • RF Bandwidth: Up to 200 kHz (Max)
  • Frequency Step Size: 25 kHz
  • RF Channel Scanning: Auto-Scan
  • Encryption: AES 256
  • Modulation: Proprietary
  • Transmitter:
    • Transmitter Type: Bodypack
    • RF Output Power: 2 / 10 / 20 mW
    • Audio I/O: 1x LEMO 1-Pin Male Unbalanced Input (Locking)
    • Muting: Via Control App
    • Sync Method: 2.4 GHz QPSK
    • Antenna:
      • 1x 1/4 Wave External
      • 1x External
    • Power Requirements: Battery
    • Battery Type: 1x Built-In Rechargeable (Included, Not Replaceable)
    • Approx. Battery Life: 4 Hours (Lithium Rechargeable) or 8 Hours (Lithium Rechargeable)
    • Housing : Rubber, Polymer
    • Operating Temperature: -4 to 122°F / -20 to 50°C
    • Storage Temperature: -4 to 113°F / -20 to 45°C
    • Dimensions: 1.7 x 2.9 x 0.5" / 42 x 74.5 x 11.5 mm (without Antennas)
    • Weight: 1.6 oz / 46.3 g
