Shure QTAD10AL=-K55 AD10A AquaMic Long Life Waterproof Wireless Bodypack Transmitter - 606-694 MegaHertz

The Shure Q5X QT-AD10AL AquaMic is a waterproof digital wireless bodypack transmitter with extended battery life and is compatible with Axient Digital series receivers. The transmitter features a LEMO 6-pin connector ready to accommodate the compatible lavalier of choice (available separately) and is well suited to a wide variety of uses, including filmmaking, reality TV, and sports broadcasting.

Engineered to handle unpredictable on-set conditions and inclement weather, the AquaMic features an IP68-rated waterproof aluminum casing without controls or a screen, making it impervious to dust and fully water-submersible at a depth up to 100 feet. Setup is handled remotely via the Q5X's Remote Control Audio System (RCAS) using the handheld MicCommander module (available separately). The transmitter provides up to 16 hours of operation on its built-in rechargeable battery and features a selectable 2/10/20mW RF output power.

Features:

• Reality TV, Film, Sports Broadcasting
• For Axient Digital Systems
• Dustproof and Waterproof Transmitter
• LEMO 6-Pin Connector
• Gain Adjustment, Detachable Antennas
• 2/10/20mW RF Output, AES-256 Encryption
• 3520 Scannable Frequencies
• High-Density Mode for More Channels
• 16 Hours on Built-In Rechargeable Battery
• Requires MicCommander for Set Up

Specifications:

• RF Frequency Band: 606-694 MegaHertz
• RF Bandwidth: Up to 200 kHz (Max)
• Frequency Step Size: 25 kHz
• RF Channel Scanning: Auto-Scan
• Built-In Recorder: No
• Timecode Support: No
• Mobile App Compatible: No
• Encryption: AES 256
• Modulation: Proprietary
• Transmitter:
  • Transmitter Type: Bodypack
  • RF Output Power: 2 / 10 / 20 mW

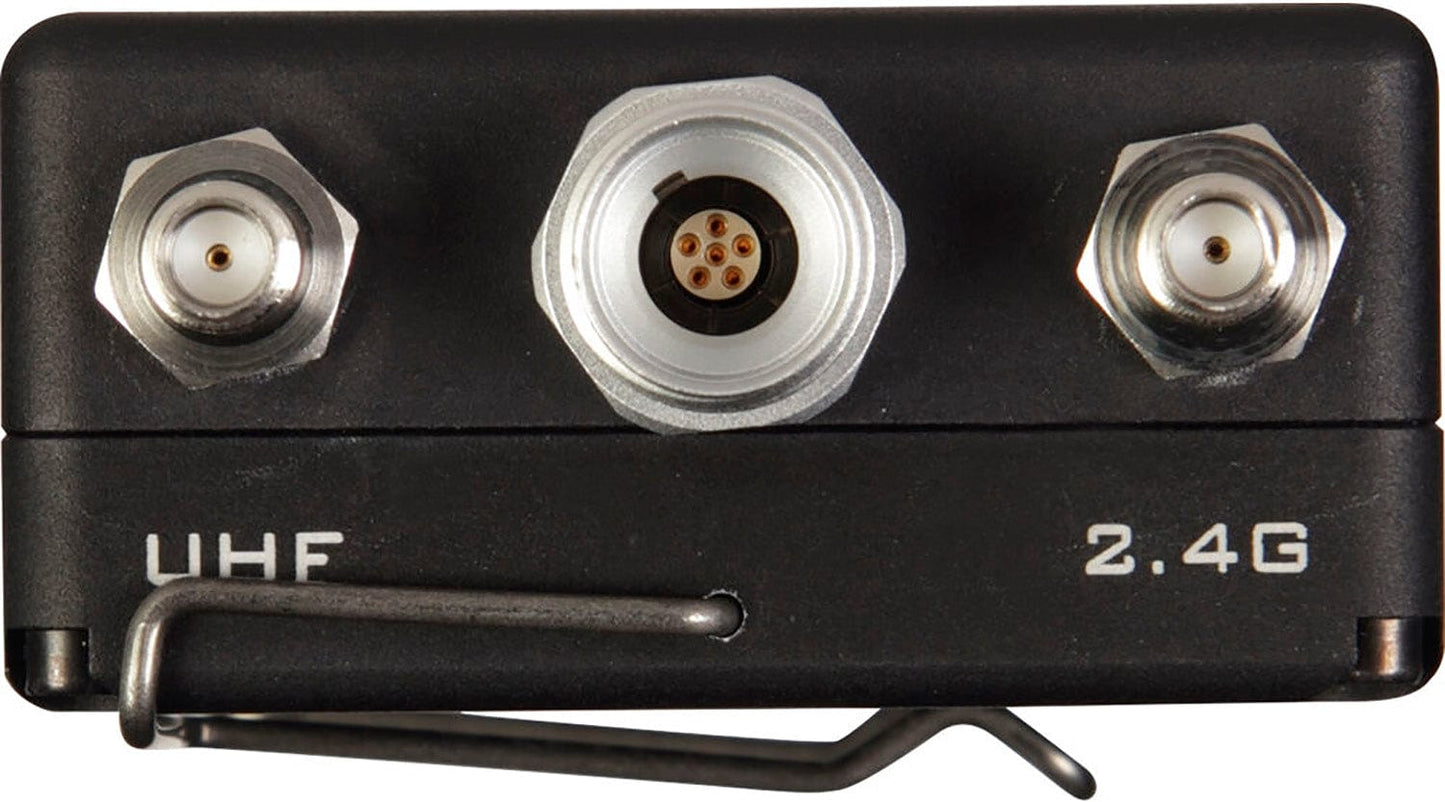

  • Audio I/O: 1x LEMO 6-Pin Male Unbalanced Input (Locking)
  • Included Cable Connector: No
  • Muting: Via Control App
  • Auto-Level Control: No
  • Memory Card Support: No
  • Sync Method: 2.4 GHz QPSK
  • Antenna:
    • 1x 1/4 Wave Flexible Whip, Detachable (Beltpack)
    • 1x External, Detachable (Beltpack)
  • Power Requirements: Battery
  • Battery Type: 1x Built-In Rechargeable (Included, Not Replaceable)
  • Approx. Battery Life: Med. - 16 Hours (Lithium Rechargeable)
  • Display & Indicators: No
  • Housing: Aluminum
  • Operating Temperature: -4 to 122°F / -20 to 50°C
  • Storage Temperature: -4 to 113°F / -20 to 45°C
  • Dimensions: 1.8 x 2.6 x 0.7" / 46 x 65 x 19 mm (without Antennas)
  • Weight: 3.7 oz / 104 g (with Batteries)
