Shure QLXD24 System with QLXD2/BETA58A Handheld Transmitter - J50A Band
The Shure QLXD24/B58 rackmount digital wireless handheld microphone system provides performers, presenters, and broadcasters with professional-quality audio, reliable RF performance, and secure AES 256-bit encryption. Rugged and easy-to-use, it is ideal for sound-reinforcement applications in medium-sized venues and houses of worship as well as A/V installations in conference, educational, and corporate facilities.
Features:
- For Presenters and Performers
- Beta 58A Dynamic Supercardioid Mic
- Handheld Transmitter
- Switching-Diversity Rackmount Receiver
- 1760 Auto-Scan Frequencies
- Selectable 1/10mW RF Power
- LCD Display, Ethernet Port
- Interchangeable Capsule Design
- 9-Hr AA Batteries
- Expandable to 60 Mic Channels/330' Range
Specifications:
- System:
- Wireless Technology: Analog UHF
- Number of RF Channel Frequencies: 1760
- Included Transmitters: 1 x Handheld
- Diversity: Antenna Diversity
- RF Frequency Band: J50A (572 to 608 MHz - 614 to 616 MHz)
- RF Bandwidth: 44 MHz
- Frequency Step Size: 25 kHz
- RF Channel Scanning: Auto-Scan
- Max Operating Range: 330' / 100.6 m
- Max Transmitters per Band: 60
- Built-In Recorder: No
- Timecode Support: No
- Mobile App Compatible:
- Yes: Android & iOS
- App Name: ShurePlus Channels
- Functionality: Remote Control
- OS Compatibility:
- Windows 10 or Later
- macOS 10.14 or Later
- Sample Rate/Resolution: 48 kHz / 24-Bit
- Latency: < 2.9 ms
- Dynamic Range: 120 dB
- Encryption: AES 256
- Modulation: Proprietary
- Receiver:
- Receiver Type: Tabletop / Rackmount
- Mounting Options: Rackmount (with Included Hardware)
- Rackmount Size: 1 RU (1/2 Rack)

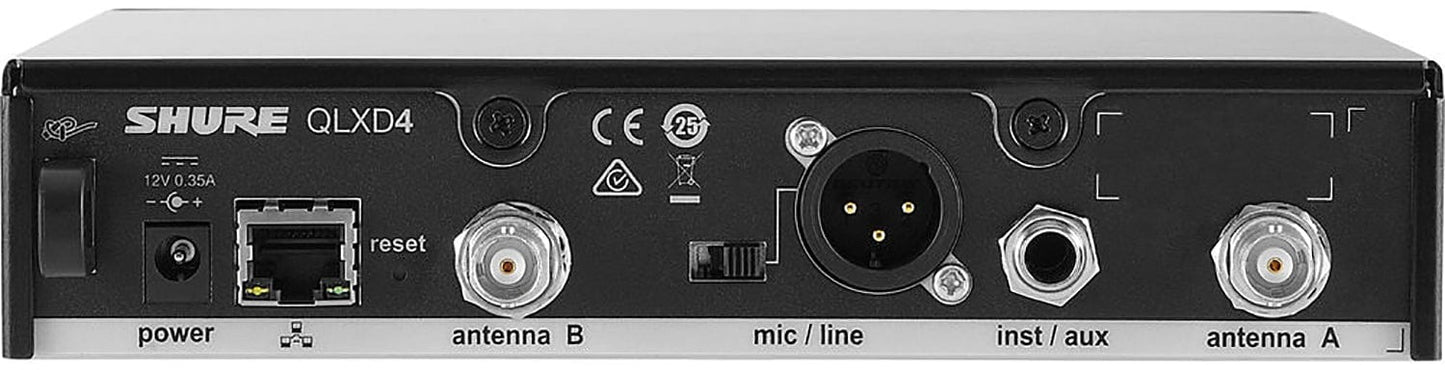

- Antenna: 2 x 1/2 Wave External, Detachable (Rear-Mount)
- Number of Audio Channels: 1
- Audio I/O:
- 1 x XLR 3-Pin Male Balanced Output
- 1 x 1/4" TRS Female Balanced Output
- Gain Range: -18 to +42 dB (1 dB Steps)
- Pad: 30 dB
- Audio Output Level:
- XLR Output: +18 dBV (Line Level)
- XLR Output: -12 dBV (Mic Level)
- 1/4" Output: +12 dBV (Instrument Level)
- Phantom Power Protection: 1/4", XLR Output
- Network I/O: 1 x RJ45 (10/100 Mb/s)
- Network Protocols: DHCP, Manual IP
- Word Clock I/O: No
- USB/Lightning Connectivity: No
- Impedance:
- XLR Output: 100 Ohms (Balanced)
- 1/4" Output: 100 Ohms (Balanced)
- 1/4" Output: 50 Ohms (Unbalanced)
- Adjacent Channel Isolation: >70 dB
- Spurious: Rejection >80 dB
- Power Requirements: AC/DC Power Adapter
- AC/DC Power Adapter: 12 VDC at 0.4 A, Center-Positive (Included)
- AC Input Power: 100 to 240 VAC, 50 / 60 Hz at 150 mA
- Display & Indicators:
- 1 x Backlit LCD (AF Level, Channel, Group, Menu Navigation, Metering, RF Level, Transmitter Battery Status)
- 1 x LED (Sync)
- 1 x LED (Peak)
- Housing: Metal
- Operating Temperature: 0 to 122°F / -18 to 50°C
- Dimensions: 7.8 x 1.6 x 5.9" / 197 x 41 x 151 mm (without Antennas)
- Weight: 1.7 lb / 777 g (without Antenna)
- Transmitter:
- Transmitter Type: Handheld
- RF Output Power: 1 / 10 mW
- Audio I/O: No
- Auto-Level Control: No
- Gain Range: 0 to 21 dB (3 dB Steps)
- Frequency Response: 30 Hz to 20 kHz
- Sync Method: IR
- Antenna: 1 x 1/4 Wave
- Power Requirements: Battery
- Battery Type:
- 2 x AA (Included)
- 1 x Shure SB900A (Not Included, Replaceable)
- Approx. Battery Life: 9 Hours (Alkaline)
- Display & Indicators: 1 x Backlit LCD (Channel, Group, RF Output Power)
- Housing: Aluminum
- Dimensions: 2 x 10.1" / 51 x 256 mm
- Weight: 12.2 oz / 347 g (without Batteries)
- Microphone:
- Microphone Type: Handheld Capsule
- Color: Black
- Sound Field: Mono
- Capsule: Dynamic
- Polar Pattern: Supercardioid
- Frequency Range: 50 Hz to 16 kHz
- Sensitivity: -51.5 dBV/Pa
- Packaging Info:
- Package Weight: 9.135 lb
- Box Dimensions (LxWxH): 19.4 x 17.4 x 4"
