Description

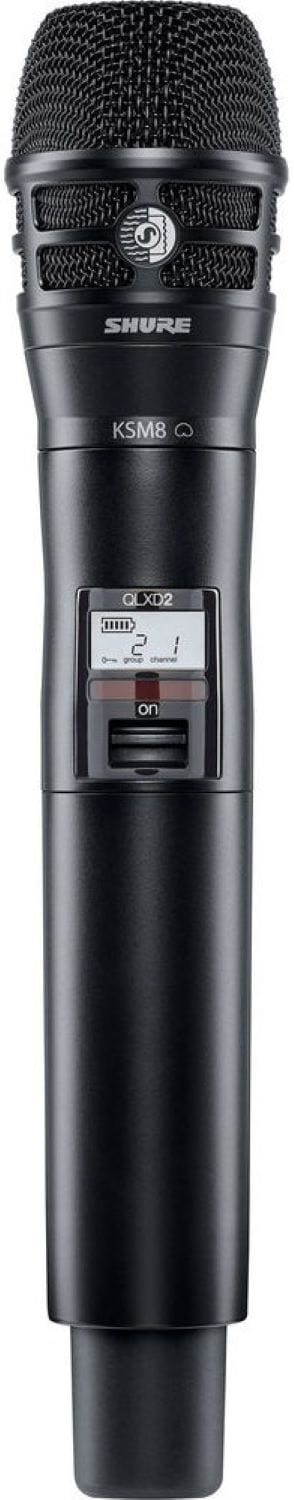

Shure QLXD2/K8B Handheld Transmitter with KSM8 Capsule - G50 Band

The black Shure ULXD2/K8 is a digital handheld wireless microphone transmitter compatible with ULX-D receivers. It comes equipped with a KSM8 dual-diaphragm dynamic capsule that minimizes proximity effect, delivering a consistent sound even when the distance between the mic and the sound source varies. The cardioid polar pattern provides a clean, richly detailed signal with reduced feedback, great for speech and vocals in live venues. With a rugged, yet lightweight aluminum housing, the ULXD2/K8 transmitter delivers pristine audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound-reinforcement applications.

Features:

  • For ULX-D Digital Systems
  • KSM8 Dynamic Cardioid Mic, Black
  • Dual-Diaphragm Capsule
  • Interchangeable Capsule Design
  • Automatic Gain Adjustment
  • 1/10/20mW RF Output Power
  • Mute Mode, Backlit LCD
  • Secure AES-256 Encryption
  • Networked Intelligent Charging
  • 12 Hr with SB900A Rechargeable Battery

Specifications:

  • RF Frequency Band: G50 (470 to 534 MHz)
  • RF Bandwidth: 64 MHz
  • Frequency Step Size: 25 kHz
  • RF Channel Scanning: Auto-Scan
  • Max Operating Range: 328.1' / 100 m
  • Sample Rate/Resolution: 48 kHz / 24-Bit
  • Latency: < 2.9 ms
  • Encryption: AES 256
  • Modulation: Proprietary
  • Transmitter:
    • Transmitter Type: Handheld
    • RF Output Power: 1 / 10 / 20 mW (Switchable)
    • Audio I/O: No
    • Muting: Off/On Switch
    • Gain Range: 0 to 21 dB (3 dB Steps)
    • Sync Method: IR
    • Antenna: 1x Internal Single-Band Helical
    • Power Requirements: Battery
    • Battery Type:
      • 2x AA (Included)
      • 1x Shure SB900A (Not Included, Replaceable)
    • Approx. Battery Life:
      • Med.: 11 Hours (Alkaline)
      • Med.: 12 Hours (Lithium Shure SB900A)
    • Display & Indicators: 1x Backlit LCD (Channel, Group, Mute, RF Output Power, Sync)
    • Housing: Aluminum
    • Operating Temperature: 0 to 122°F / -17 to 50°C
    • Storage Temperature: -20 to 165°F / -28 to 73°C
    • Dimensions: 10.9 x 2" / 278 x 51 mm
    • Weight: 12.3 oz / 348 g
  • Microphone:
    • Microphone Type: Handheld Capsule
    • Sound Field: Mono
    • Capsule: Dynamic
    • Polar Pattern: Cardioid
    • Frequency Range: 40 Hz to 16 kHz
    • Sensitivity: -51 dBV/Pa at 1 kHz
    • Dynamic Range:
      • Hypercardioid: 130.8 dB
      • Wide-Angle Cardioid: 131.3 dB
