Shure P3TRA215TWP-H20 PSM300 Twinpack Pro Monitoring System with Earphones - H20 Frequency
The Shure P3TRA215TWP PSM 300 Twin Pack Pro offers an ideal monitoring solution for up to two performers, featuring a durable metal construction multi-body-pack system-in-a-box with SE215 Sound Isolating™ earphones for precise stereo mixes on stage. Delivering detailed 24-bit digital audio and reliable wireless performance, the PSM®300 Stereo Personal Monitor System ensures clear sound with patented Audio Reference Companding, minimal noise, and no artifacts. With a coverage range of over 300 ft (90 m) and no dropouts, setup is simple with one-touch frequency scan and sync for clean wireless channels. Adjust volume effortlessly with MixMode® technology or stereo mode to craft a personalized mix from two audio channels.
Features:
- PSM 300 Monitor System:
- Send two channels of audio wirelessly to performers onstage
- 24-bit digital audio provides clear, detailed sound
- Patented Audio Reference Companding sounds more like wired
- Up to 90 dB signal-to-noise ratio
- Exceptionally wide stereo separation
- Solid analog RF connection over a 300' (90m) range
- Create a personal mix from the body-pack with MixMode® technology or stereo mode
- Frequency scan and IR sync quickly finds and assigns a clean channel
- Half-rack, single channel transmitter with included rack mount kit
- P3R body-pack systems available with SE112 Sound Isolating™ Earphones
- P3RA professional body-pack systems available with SE215 Sound Isolating™ Earphones
- P3T Wireless Transmitter:
- Single channel, half-rack transmitter with included rack mount kit
- Sends a stereo or mono mix wirelessly to performers onstage
- Rock-solid wireless connection to P3R receiver over 300' (90m) range
- One-touch IR sync instantly links transmitter to receiver
- Up to 30 mW output power (region dependent)
- 24 MHz tuning range (region dependent)
- ¼" (6.3mm) TRS balanced inputs and loop outputs
- High-contrast LCD menu with detailed L/R audio output meters
- Detachable antenna
- External power supply
- Selectable line/aux level

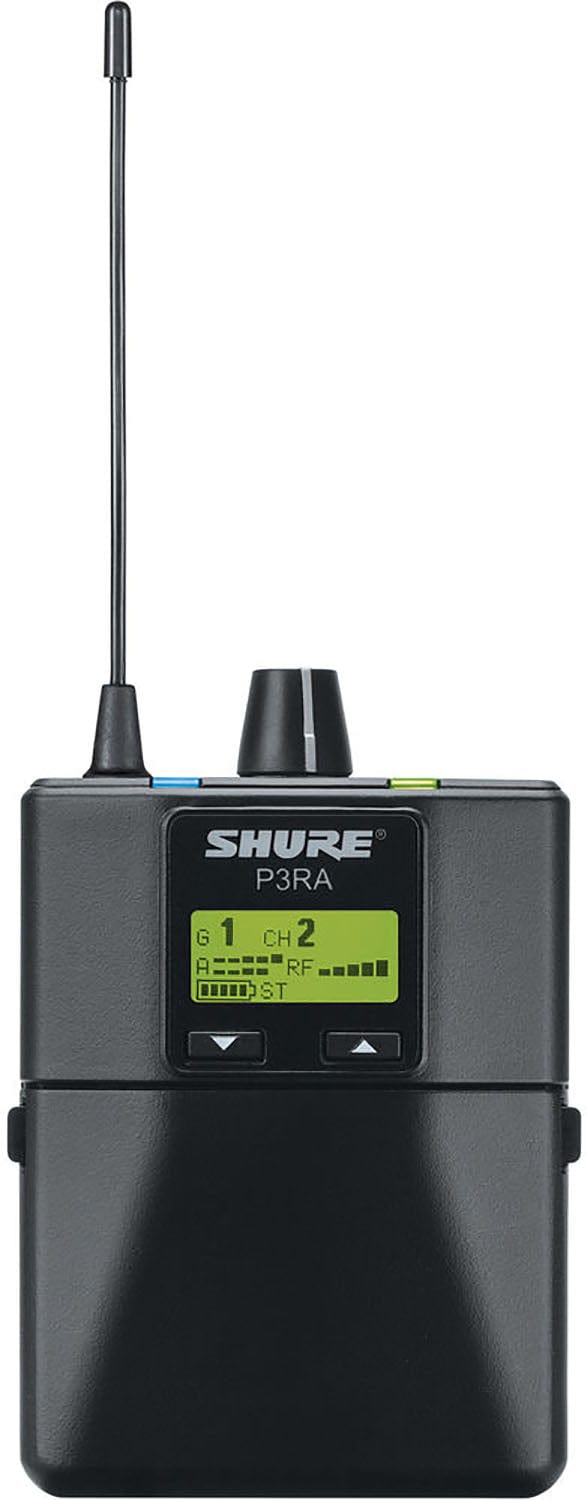

- P3R Wireless Body-pack Receiver:
- Slim, lightweight, durable form factor
- Frequency scan and IR sync quickly finds and assigns a clean channel
- MixMode® technology enables adjustment of two independent monitoring mix levels
- Stereo mode enables adjustment of left/right balance
- Easy to adjust volume knob and mix control
- 2 AA batteries provide up to 6 hours of continuous operation
- Power save mode preserves battery life when earphones are not connected
- Power and battery status LED
Specifications:
- SE215 Sound Isolating™ Earphones:
- Single dynamic driver delivers clear sound with deep bass performance in a discrete, durable design.
- Sound Isolating™ design featuring fit kit with a variety of sleeves blocks up to 37 dB of outside noise so you can hear the details of your music.
- Secure, over-the-ear design ensures earphones stay in place and cables out of the way for unmatched, long-wearing comfort.
- Gold-plated MMCX connector has a lock-snap mechanism allowing 360-degree rotation for a comfortable fit.
- Detachable cable is durable enough to withstand everyday wear, yet allows for easy replacement in case of damage.
- Includes a zippered carrying case and fit kit with selection of sleeves.
- Designed to withstand the rigors of live performance with two-year warranty.
- PSM 300 Monitor System:
- RF Carrier Range: 488-937.5MHz (Varies by region, see frequency range and output power table)
- Compatible Frequencies (per band): up to 15
- Tuning Bandwidth: 24MHz maximum (Note: varies by region)
- Operating Range (Environment dependent): 90m (300')
- Audio Frequency Response: 38Hz-15kHz
- Signal-to-Noise Ratio (A-weighted): 90dB (typical)
- Total Harmonic Distortion (ref. ±34 kHz deviation @1kHz): <0.5% (typical)
- Companding: Patented Shure Audio Reference Companding
- Spurious Rejection (ref. 12dB SINAD): >80dB (typical)
- Frequency Stability: ±2.5ppm
- MPX Pilot Tone: 19kHz (±1Hz)
- Modulation: FM*, MPX Stereo (ref. ±34kHz deviation @ 1kHz)
- Operating Temperature: 0 ° to 145°F (-18 ° to +63°C)
- P3T Wireless Transmitter:
- RF Output Power: 10, 20, 30mW
-
- Note: varies by region
- RF Output Impedance: 50 Ω (typical)
- Net Weight: 1.73LBs (783g)
- Dimensions (HxWxD): 1.7 x 7.8 x 6.8" (43 x 198 x 172mm)
- Power Requirements: 12-15V DC, 260mA maximum
- Audio Input:
- Connector Type: 6.35mm (1/4") TRS
- Polarity: Tip positive with respect to ring
- Configuration: Electronically balanced
- Impedance: 40kΩ (actual)
- Nominal Input Level: Switchable, +4dBu, -10dBV
- Maximum Input Level: +4dBu: +22dBu; -10dBV: +12.2dBu
- Pin Assignments: Tip=hot, Ring=cold, Sleeve=ground
- Phantom Power Protection: Up to 60V DC
- Audio Output:
- Connector Types: 6.35mm (1/4") TRS
- Configuration: Electronically balanced
- Impedance: Connected directly to inputs
- P3R Wireless Body-pack Receiver:
- Active RF Sensitivity (at 20dB SINAD): 2.2 μV
- Image Rejection: >90dB
- Adjacent Channel Rejection: >60dB
- Inter-modulation Attenuation: >50dB
- Blocking: >60dB
- Audio Output Power (1kHz @ <1% distortion, peak power, @32Ω): 80mW (per output)
- Minimum Load Impedance: 16Ω
- Headphone Output: 3.5mm (1.8") stereo
- Net Weight (without batteries): 0.22LBs (98g)
- Dimension (HxWxD): 4.33 x 2.52 x 0.83" (110 x 64 x 21mm)
- Battery Life (continuous use): 5-7 hours, AA batteries
- SE215 Sound Isolating™ Earphones:
- Sensitivity: 107 dB SPL/mW
- impedance: 20Ohm
- Frequency Range: 22Hz - 17.5kHz
- Cable Style: 64" Detachable (at ear) with wire-form fit
- Colors: Available in Clear or Translucent Black
- Speaker Type: Dynamic MicroDriver
- Connectors: Gold-Plated 3.5mm Stereo Mini Plug
- Isolation: Up to 37dB
- Driver: Dynamic MicroDriver
