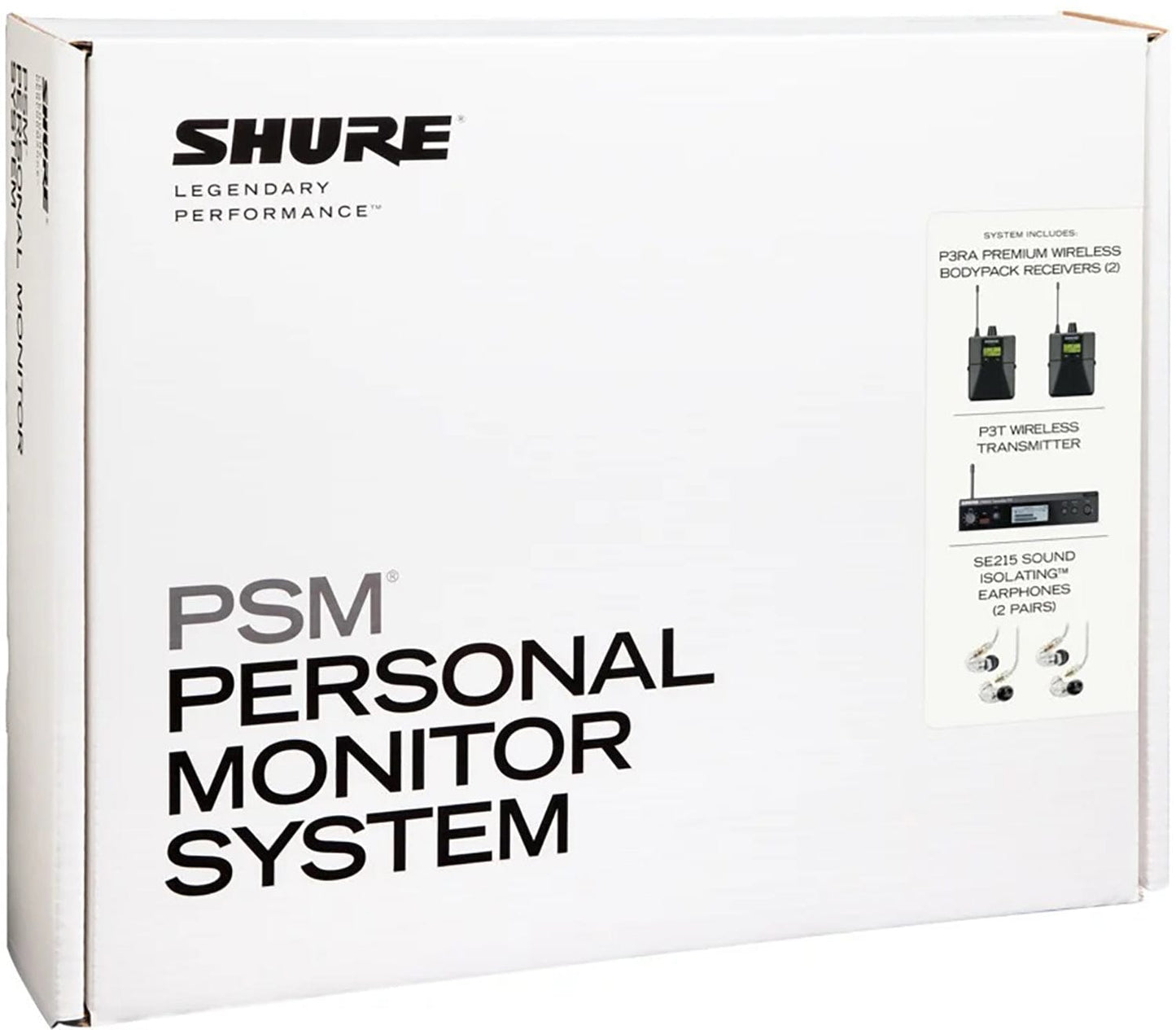

Shure P3TRA215TWP-G20 PSM300 Twinpack Pro Monitoring System with Earphones - G20 Frequency
The Shure PSM 300 Twin Pack Pro offers an ideal monitoring solution for two performers, featuring a durable metal construction multi-bodypack system-in-a-box. It includes SE215 Sound Isolating™ earphones designed for clear, precise stereo mixes on stage, with the option to use the SB900A rechargeable battery for added convenience.
Features:
- PSM 300 Monitor System:
- Send two channels of audio wirelessly to performers onstage
- 24-bit digital audio provides clear, detailed sound
- Patented Audio Reference Companding sounds more like wired
- Up to 90 dB signal-to-noise ratio
- Exceptionally wide stereo separation
- Solid analog RF connection over a 300' (90m) range
- Create a personal mix from the body-pack with MixMode® technology or stereo mode
- Frequency scan and IR sync quickly finds and assigns a clean channel
- Half-rack, single channel transmitter with included rack mount kit
- P3R body-pack systems available with SE112 Sound Isolating™ Earphones
- P3RA professional body-pack systems available with SE215 Sound Isolating™ Earphones
- P3T Wireless Transmitter:
- Single channel, half-rack transmitter with included rack mount kit
- Sends a stereo or mono mix wirelessly to performers onstage
- Rock-solid wireless connection to P3R receiver over 300' (90m) range
- One-touch IR sync instantly links transmitter to receiver
- Up to 30 mW output power (region dependent)
- 24 MHz tuning range (region dependent)
- ¼" (6.3mm) TRS balanced inputs and loop outputs
- High-contrast LCD menu with detailed L/R audio output meters
- Detachable antenna
- External power supply
- Selectable line/aux level
- P3R Wireless Body-pack Receiver:
- Slim, lightweight, durable form factor
- Frequency scan and IR sync quickly finds and assigns a clean channel
- MixMode® technology enables adjustment of two independent monitoring mix levels
- Stereo mode enables adjustment of left/right balance
- Easy to adjust volume knob and mix control
- 2 AA batteries provide up to 6 hours of continuous operation
- Power save mode preserves battery life when earphones are not connected
- Power and battery status LED
Specifications:
- PSM 300 Monitor System:
- RF Carrier Range: 488-937.5 MHz
- Compatible Frequencies Per band: up to 15
- Tuning Bandwidth: 24 MHz maximum (Note: varies by region)
- Operating Range Environment dependent: 90 m (300 ft)
- Audio Frequency Response: 38 Hz-15 kHz
- Signal-to-Noise Ratio A-weighted: 90 dB (typical)
- Total Harmonic Distortion ref. ±34 kHz deviation @1 kHz: <0.5% (typical)
- Companding: Patented Shure Audio Reference Companding
- Spurious Rejection ref. 12 dB SINAD: >80 dB (typical)
- Frequency Stability: ±2.5 ppm
- MPX Pilot Tone: 19 kHz (±1 Hz)
- Modulation: FM, MPX Stereo (ref. ±34 kHz deviation @ 1 kHz)
- Operating Temperature: -18 °C (0 °F) to +63 °C (145 °F)
- P3T Wireless Transmitter:
- RF Output Power: 10, 20, 30 mW Note: varies by region
- RF Output Impedance 50 O (typical)
- Net Weight 783 g (27.6oz.)
- Dimensions 43 x 198 x 172 mm (1.7 x 7.8 x 6.8 in.), H x W x D
- Power Requirements 12-15 V DC, 260 mA maximum
- Audio Input
- Connector Type 6.35 mm (1/4") TRS
- Polarity Tip positive with respect to ring
- Configuration Electronically balanced
- Impedance 40 kO (actual)
- Nominal Input Level Switchable, +4 dBu, -10 dBV
- Maximum Input Level +4 dBu: +22 dBu
- -10 dBV: +12.2 dBu
- Pin Assignments Tip=hot, Ring=cold, Sleeve=ground
- Phantom Power Protection Up to 60 V DC
- Audio Output
- Connector Types 6.35 mm (1/4") TRS
- Configuration Electronically balanced
- Impedance Connected directly to inputs
- P3R Wireless Body-pack Receiver:
- Active RF Sensitivity (at 20 dB SINAD): 2.2 microvolts
- Image Rejection: >90 dB
- Adjacent Channel Rejection: >60 dB
- Intermodulation Attenuation: >50 dB
- Blocking: >60 dB
- Audio Output Power 1 kHz @ <1% distortion, peak power, @32 ohms: 80 mW (per output)
- Minimum Load Impedance: 16 ohms
- Headphone output: 3.5 mm (1.8") stereo
- Net Weigh:t 196 g (6.9 oz.) (with batteries)
- Dimensions: 99 x 66 x 23 mm (H x W x D)
- Battery Life (continuous use); 4-5.5 hours, AA batteries, 5.5-7 hours, SB900A battery
- Performance:
- Frequency Range: G20: 488-512 MHz
- RF Output Power: 10, 20, 30 mW Note: varies by region
- RF Output Impedance: 50 Ohms (typical)
- Transmission Range: 300' (90 m)
- Audio Input:
- Connector Type: 1/4" TRS (6.35 mm)
- Polarity: Tip positive with respect to ring
- Configuration: Electronically balanced
- Impedance: 40 kOhms (actual)
- Nominal Input Level: Switchable, +4 dBu, -10 dBV
- Maximum Input Level: +4 dBu: +22 dBu, -10 dBV: +12.2 dBu
- Pin Assignments: Tip=hot, Ring=cold, Sleeve=ground
- Phantom Power Protection: Up to 60 VDC
- Audio Output:
- Connector Types: 1/4" TRS (6.35 mm)
- Configuration: Electronically balanced
- Impedance: Connected directly to inputs
- General:
- Antenna: 1/4 wave, detachable
- Power Requirement: 12 to 15 VDC, 260 mA maximum
- Dimensions (H x W x D): 1.7inch x 7.8inch x 6.8inch
- Net Weight: 27.6 oz
