Shure P3T=-J13 PSM300 Wireless Transmitter - J13 Band

The P3T is a wireless transmitter for use with the PSM 300 Personal Monitor System.

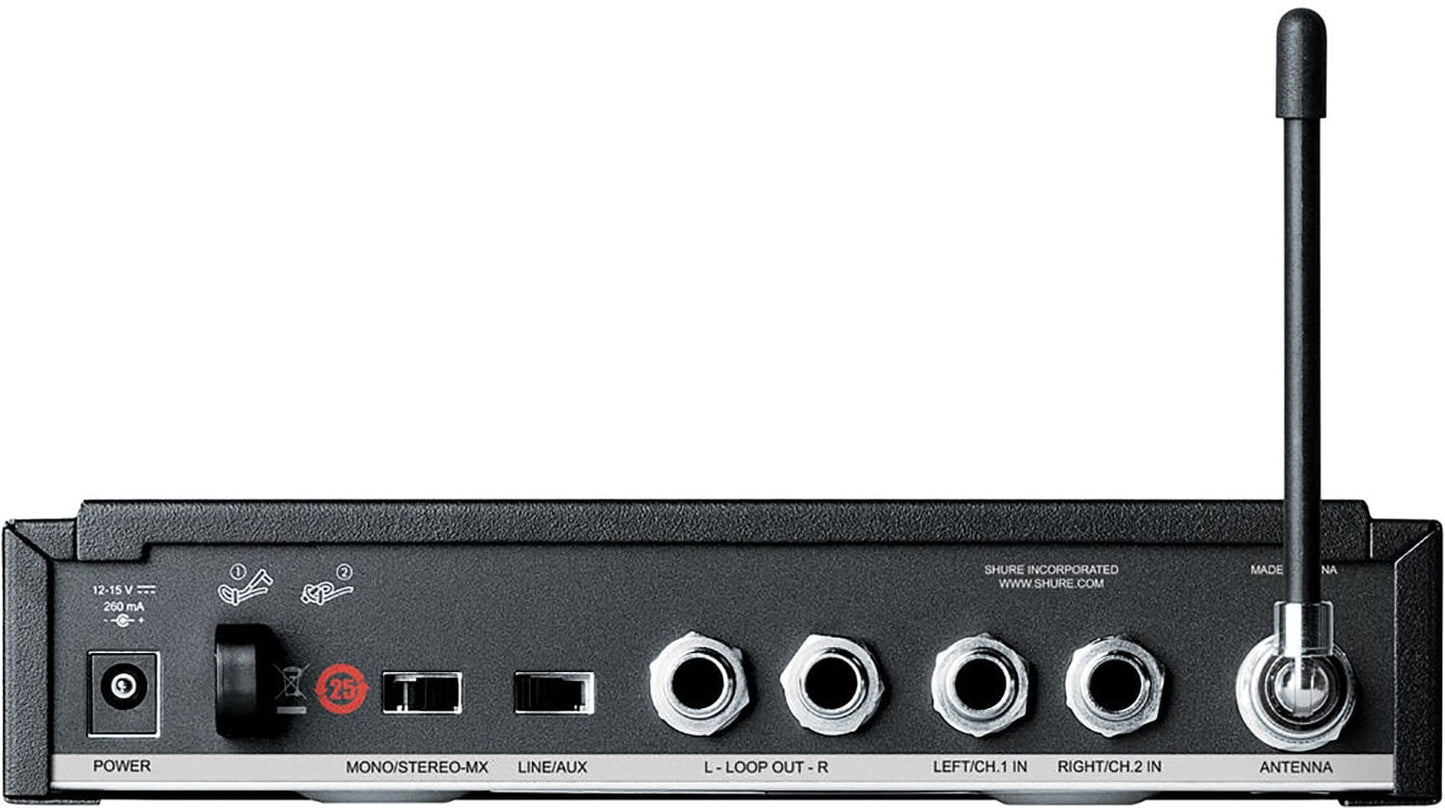

Dependable wireless transmission and 24-bit digital audio deliver a superior personal monitoring mix for every performance. Send 2 channels of audio to a bodypack receiver up to 90 meters away, with patented Audio Reference Companding to ensure transparent sound quality with no artifacts or dropouts. The rugged, half rack transmitter features easy front-panel controls including one-touch sync and input level knob to enable quick setup and easy operation. Rear-panel balanced inputs and loop outputs provide versatile connectivity to audio sources and other P3T units.

Features:

• Single channel, half-rack transmitter with included rack mount kit
• Sends a stereo or mono mix wirelessly to performers onstage
• Rock-solid wireless connection to PSM300 receivers over a 90 meter range
• One-touch IR sync instantly links transmitter to receiver
• Up to 30 mW output power (region dependent)
• Up to 24 MHz tuning range (region dependent)
• ¼” (6.3 mm) TRS balanced inputs and loop outputs
• High-contrast LCD screen with left/right audio output meters
• Detachable ¼ wave antenna
• Selectable line/aux level

Specifications:

• RF Output Power: 10, 20, 30 mW Note: varies by region
• RF Output Impedance: 50 Ω (typical)
• Net Weight: 783 g (27.6oz.)
• Dimensions: 43 × 198 × 172 mm (1.7 × 7.8 × 6.8 in.), H × W × D
• Power Requirements: 12–15 V DC, 260 mA maximum
• Audio Input:
• Connector Type: 6.35 mm (1/4") TRS
• Polarity: Tip positive with respect to ring
• Configuration: Electronically balanced
• Impedance: 40 kΩ (actual)
• Nominal Input Level: Switchable, +4 dBu, -10 dBV
• Maximum Input Level: +4 dBu: +22 dBu, -10 dBV: +12.2 dBu
• Pin Assignments: Tip=hot, Ring=cold, Sleeve=ground
• Phantom Power Protection: Up to 60 V DC
• Audio Output:
  • Connector: Types 6.35 mm (1/4") TRS
  • Configuration: Electronically balanced
  • Impedance: Connected directly to inputs
