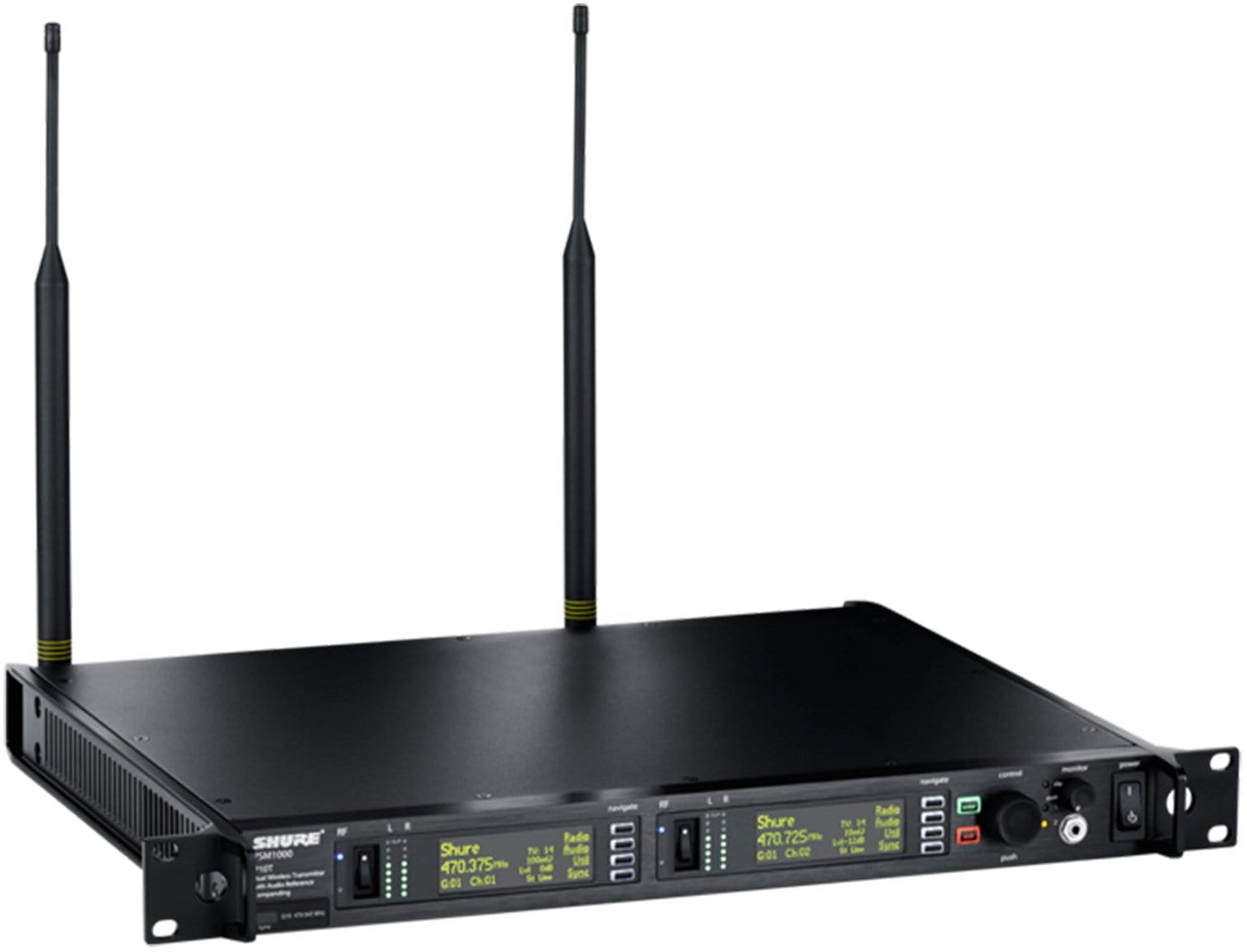

Shure P10T G10 In-Ear Monitor Transmitter 470-542Mhz
Shure’s P10T is a networkable, full-rack, dual-channel wireless transmitter used in conjunction with the P10R Wireless Bodypack Receiver as part of the PSM® 1000 Personal Monitor System. The P10T Wireless Transmitter combines state-of-the-art technology with touring-grade features for professional monitoring applications of any size with no room for error. It offers a 72 MHz to 80 MHz tuning bandwidth, networked remote control via Wireless Workbench® software, advanced rechargeability options, and PSM® 900 backwards compatibility.
Features:
- Touring-Grade Design and Performance
- Full-rack, dual-channel wireless transmitter in an all-metal chassis provides touring-grade performance
- Networked control via Ethernet connection vastly simplifies setup for high channel counts and enables remote control via Wireless Workbench software
- Internal power supply with IEC in/out ports enables easy power chaining in the rack
- Robust RF Performance and Networked Control
- Up to 80 MHz tuning bandwidth provides flexibility in today’s crowded and unpredictable RF environments
- Exceptional transmitter linearity vastly reduces frequency intermodulation and allows up to 39 compatible channels per frequency range
- Networked frequency coordination simplifies setup for high channel counts.
- IR sync enables you to send the identified frequencies and spectrum plot to the P10T transmitter directly
- Ethernet connectivity facilitates the programming of compatible frequency assignments from one transmitter to every other P10T transmitter on the network for vastly simplified and streamlined setup
- Spectrum display provides a front-panel spectrum plot with selectable zoom
- Advanced Setup and Operation - Full compatibility with Wireless Workbench and ShurePlus™ Channels software provides advanced RF spectrum plotting, comprehensive frequency coordination, and live monitoring and adjustment of transmitter settings, including:
- RF mute enable/disable
- RF output power adjustments
- Aux/line level
- Audio input level
- Channel/device name edit
Specifications:
- RF Carrier Range: 470–952 MHz (regionally dependent)
- Compatible Frequencies: 39 per band
- Tuning Bandwidth: 72 MHz – 80 MHz (regionally dependent)
- Operating Range (environment dependent): 90m (300ft)
- Audio Frequency Response: 35Hz – 15kHz
- Stereo Separation: 60 dB
- Signal-To-Noise Ratio (A-Weighted): 90 dB (typical)
- Total Harmonic Distortion(ref. ±34 kHz deviation @1 kHz): <0.5% (typical)
- Companding: Patented Shure Audio Reference Companding
- Spurious Rejection (ref. 12 dB SINAD): <80 dB (typical)
- Frequency Stability: ±2.5 ppm
- MPX Pilot Tone: 19 kHz (±0.3 kHz)
- Modulation: FM, MPX Stereo (±34 kHz deviation, nominal)
- Operating Temperature: -18 to +57 °C
