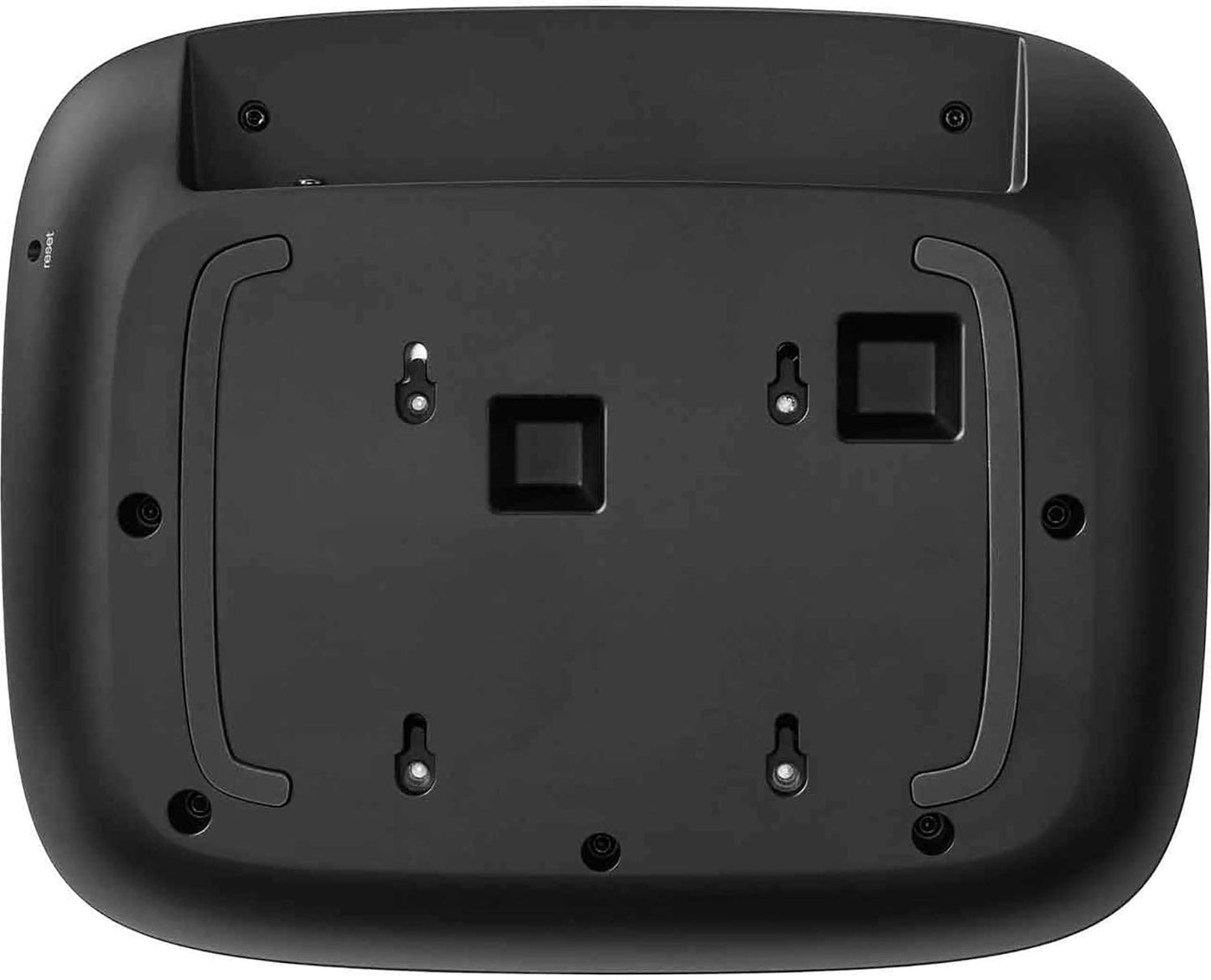

Shure MXWAPXD2=-Z10 2 Channel Access Point Transceiver for Microflex Wireless Microphone System

The MXWAPXD2 is a 2-channel access point for Microflex® Wireless neXt 2 systems. It combines sophisticated Automatic Frequency Management, powerful IntelliMix® DSP audio processing, convenient microphone charging, and flexible audio and control interfaces in a compact and discreet form factor

Features:

• Built-in charging slots for two MXW1X bodypack, MXW2X handheld, or MXW6X boundary transmitters
• Automatic Frequency Management finds open channels in the 1.9 GHz DECT band and avoids interference without interrupting audio
• Onboard IntelliMix® DSP includes automatic mixing, echo cancellation, noise reduction, and automatic gain control to eliminate annoying distractions
• Presets configure the system for presentations or conferences to send mic & program audio to remote participants, room loudspeakers, or both
• Analog, Dante, and USB-C interfaces for easy connection to a computer, sound system, and videoconferencing codec
• Dual RJ45 network ports allow Dante audio and control signals to be separated for increased security
• External USB-C power supply

Specifications:

• General:
  • Compatibility: Shure MXW neXt 2 MXW1X / MXW neXt 2 MXW2X / MXW neXt 2 MXW6X
• Display:
  • Panel Type: Direct View LED
  • Touchscreen: No
• Inputs / Outputs:
  • USB I/O:
    • 1 x USB-C (Power Only) Female Input
    • 1 x USB-C Female Input/Output
  • Audio I/O:
    • 2x Block 3-Pin Input
    • 2x Block 3-Pin Output
  • Ethernet:
    • 2 x Dante (RJ45) In, For MXA Ceiling Array Mics
    • 3 x Dante (RJ45) Out, For External DSP, MXN5, Dante Recorder
• Wireless:
  • Wireless: DECT
• Power:
  • Power Source: USB
• Environmental:
  • Environmental Protection: No
• Physical:
  • Color: Black
