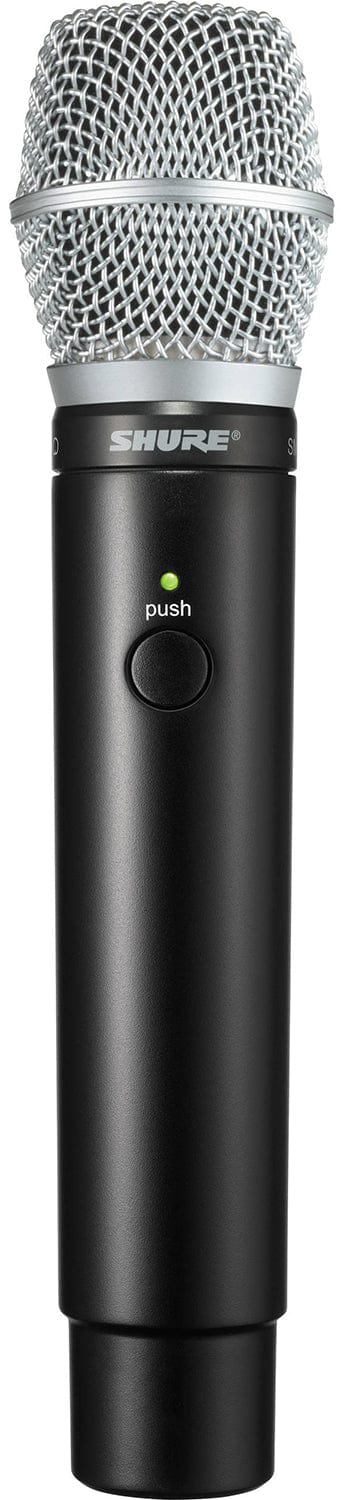

Shure MXW2/SM86 Handheld Transmitter with SM86 Capsule - Z10 Band

Coupled with the SM86 cartridge, the MXW2 is a handheld transmitter compatible with Microflex Wireless Systems. With lightweight but durable construction and integrated diversity antennas, the MXW2 delivers vivid lifelike sound, intelligent wireless performance, encrypted transmission, and advanced rechargeability for presentation and conferencing applications.

Features:

• Interchangeable microphone cartridges: Available with the SM58, SM86, Beta 58A and VP68 signature Shure microphones
• Dual transmit antennas: Maximizes transmission strength depending on hand placement
• Bi-directional wireless: Enables real time remote control of all wireless microphone settings
• Programmable mute button: Customize local or remote muting behavior per application, with options including push-to-talk, push-to-mute, and external control.
• Standby mode: Enabled remotely during breaks or periods of inactivity to significantly extend battery life when not in use.
• Wide working range: Reliable wireless coverage extends up to 160 feet (50 meters)
• Range warning alert: Emits beeping sound when range limit is exceeded
• Easy transmitter linking: Assign the microphone to an Access Point channel by simply docking it into a Networked Charging Station and pressing “link”
• Encrypted wireless: AES 256-bit encryption for secure transmission.
• Advanced Li-ion batteries: Smart lithium-ion internal batteries provide up to 9 hours of continuous use, charge to full in 2 hours, and enable remote monitoring over the network of remaining runtime and charge status in hours and minutes
• USB charging: Connects to any standard USB power source for “always on” usage.

Specifications:

• Transmitter:
  • Gain Adjustment Range: -25 to 15 dB (in 1 dB steps)
  • Maximum Input Level: -9 dBV (mic gain @ -16 dB)
  • Headphone Output: 1/8" (3.5 mm) dual mono (will drive stereo headphones)
  • Output Power: Headphone: 17.5 mW (1 kHz @ 1% distortion, peak power, @ 16 Ω)
  • Antenna Type: Internal, spatial diversity, linear polarization
  • Battery Type: Rechargeable Li-Ion
  • Battery Life: Up to 15 hours (Calculated with a new battery. Runtimes vary depending on battery health)
  • Charge Connector: USB 3.0 Type A
  • Housing: Molded plastic
  • Temperature Range: Recommended for Storage: 32 to 77°F (0 to 25°C)
  • Configuration: Unbalanced
  • Input Impedance: >20 kΩ (@ 1 kHz)
• Microphone:
  • Type: Condenser
  • Frequency Response: 50 Hz to 18 kHz
  • Polar Pattern: Cardioid
  • Sensitivity: -50 dBV/Pa (3.15 mV) 1 Pa = 94 dB SPL (@ 1 kHz)
  • Clipping Level: 3 dBV (1.41 V) (1,000 Ω Load at 1 kHz)
  • Maximum SPL: 147 dB (1,000 Ω load) (1% THD)
  • Self Noise: 23 dB typical, A-weighted
  • Dynamic Range: 124 dB (maximum SPL to A-weighted noise level) @ 1,000 Ω
  • Signal to Noise Ratio; 71 dB at 94 dB SPL (IEC 651) (S/N ratio is difference between 94 dB SPL and equivalent SPL of self-noise A-weighted.)
  • Power Requirements: 11 to 52 Vdc, 5.2 mA
• General:
  • Dimensions: 2.0 x 8.9" (51 x 226 mm)
  • Weight: 11.4 oz (323 g) with batteries and microphone capsule
• Packaging Info:
  • Package Weight: 1.3 lb
  • Box Dimensions (LxWxH): 11.1 x 5.4 x 3.3"
