Description

Shure DL4B/O-MTQG-A Duraplex Waterproof Lavalier Omnidirectional Microphone with MTQG Connector - Black

Available in lavalier or headset form, DuraPlex has been extensively tested to ensure an IP57 dust-resistant, waterproof rating. Whether shooting reality TV, mounting a professional theatrical tour, or wherever audio takes you, contending with the elements won’t slow you down. As comfortable on the beach as it is in a broadcast studio, DuraPlex features a neutral, full sound quality that lives up to the highest audio standards.

The advanced 1.6 mm Shure Plex cable, first introduced with the award-winning TwinPlex subminiature microphone, lasts longer than competing cables due to a dual redundant ground which doubles as a secondary shield. It also offers virtually zero “memory effect,” won’t kink, and is fully paintable.

Features:

  • 5 mm omnidirectional subminiature design for discrete placement and improved gain-before-feedback
  • IP57 dust-resistant, waterproof rated
  • Neutral, full sound quality for film, broadcast, speech, theater, and performance applications
  • Advanced 1.6 mm Shure Plex cable:
    • Dual redundant ground in cable serves as secondary shield for unprecedented longevity
    • Immune to memory effect and kinks
    • Fully paintable with typical theater paints, pens, and polishes
  • Presence Cap included for tailored frequency response provides additional vocal clarity and presence (3-4 dB boost near 10 kHz)
  • Available in four colors: Black, Cocoa, Tan, White
  • Available in two connector types: TA4F (mTQG) and LEMO

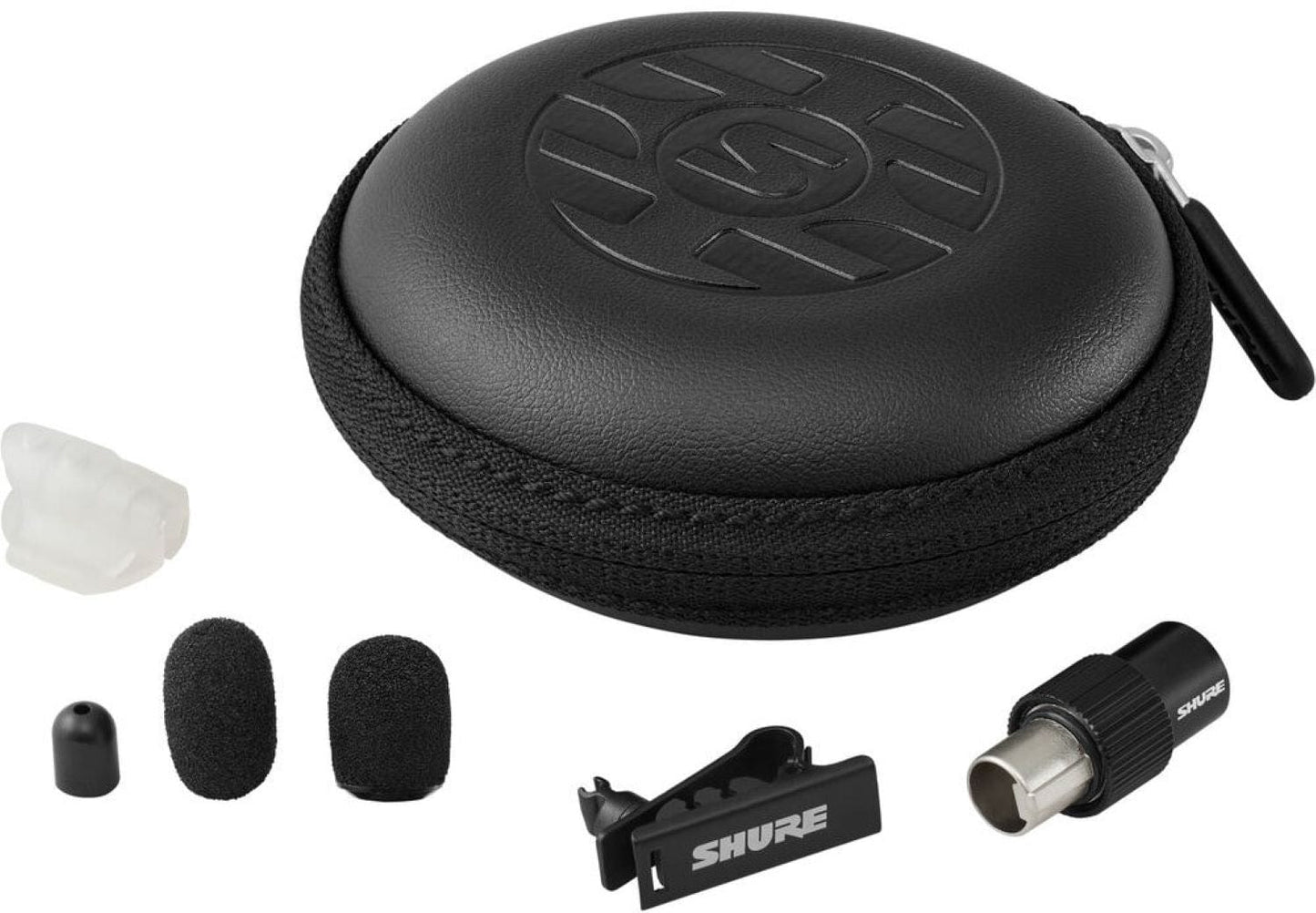

  • Kit includes the following accessories: Case, Foam Windscreen, Snap-fit Windscreen, Single Tie Clip, Sticky Mount, TQG Locking Collar (mTQG/TA4F SKUs only)

Specifications:

  • Microphone Capsule: MEMS
  • Polar Pattern: Omnidirectional
  • Frequency Response: 20 Hz to 20 kHz
  • Sensitivity: –42.5 dBV (7.5 mVRMS) @ 1 kHz
  • Self-Noise: 31 dB SPL-A (A-weighted, Equivalent Acoustical)
  • Signal-to-Noise Ratio: 63 dB
  • Maximum SPL: 132.0 dB SPL (1 kHz @ 1% THD, typical)
  • Dynamic Range: 101.0 dB (Typical)
  • Microphone Current Draw: 220 µA, maximum
  • Bias Voltage (Recommended Operating Voltage): 5 VDC
  • Housing: Molded ABS
  • Polarity:
    • MTQG: Positive Pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1
    • LEMO: Positive pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1
  • Cable Diameter: 1.6 mm
  • Cable Length: 66.0 in (1.67 m)
  • Net Weight: 15.0 g (0.53 oz)
  • Capsule Dimensions (L × D): 14.5 mm × 5.2 mm
