Shure BLX88 Dual Wireless Receiver for BLX Wireless System - J11 Band
Dual analog wireless receiver provides improved linearity and frequency response with group and channel scan for easy set-up. Features include microprocessor internal antenna diversity, frequency QuickScan, and two-color audio status indicator LED.
Features:
- Up to 12 compatible systems (region dependent)
- Microprocessor-controlled internal antenna diversity
- One touch QuickScan locates the best open Frequency
- ¼" and XLR audio outputs
- Two color audio status indicator LED
- Green: Normal audio levels
- Red: Excessive audio levels (overload/clipping)
Specifications:
- System:
- Number of RF Channel Frequencies: 123
- Diversity: Antenna Diversity
- RF Frequency Band: J11(596-616 MHz)
- RF Bandwidth: 24 MHz
- RF Channel Scanning: Auto-Scan
- Max Operating Range: 300' / 91.4 m
- Max Transmitters per Band: 12
- Receiver:
- Receiver Type: Tabletop
- Antenna: 2 x Internal, Fixed
- Number of Audio Channels: 2

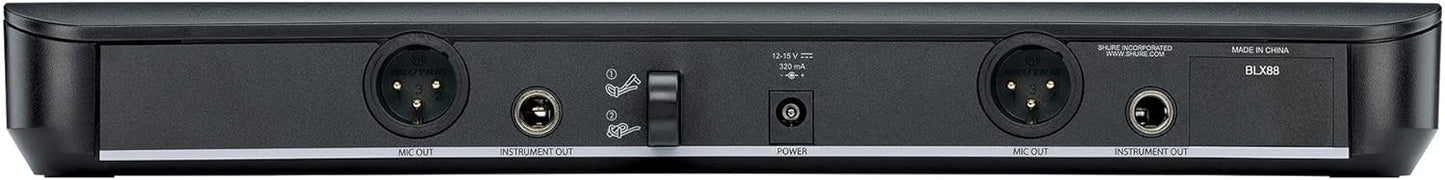

- Audio I/O:
- 2 x XLR 3-Pin Male Balanced Output
- 2 x 1/4" TS Female Unbalanced Output
- Audio Output Level:
- XLR Outputs: -27 dBV (Mic Level)
- 1/4" Outputs: -13 dBV (Instrument Level)
- Frequency Response: 50 Hz to 15 kHz
- Impedance:
- XLR Outputs: 200 Ohms
- 1/4" Outputs: 50 Ohms
- Approximate RF Sensitivity: -105 dBm
- Adjacent Channel Isolation: >50 dB
- Power Requirements: AC/DC Power Adapter
- AC/DC Power Adapter: 12 to 15 VDC at 160 mA, Center-Positive (Included)
- Display & Indicators:
- 1 x Multi-Segment LED (Channel, Group)
- 2 x LED (AF Level, Sync)
- Housing: ABS
- Operating Temperature: 0 to 135°F / -17 to 57°C
- Dimensions: 7.4 x 1.6 x 4.1" / 188 x 40 x 103 mm
- Weight: 15.1 oz / 429 g
- Packaging Info:
- Package Weight: 3.85 lb
- Box Dimensions (LxWxH): 19.1 x 16.2 x 3.6"
