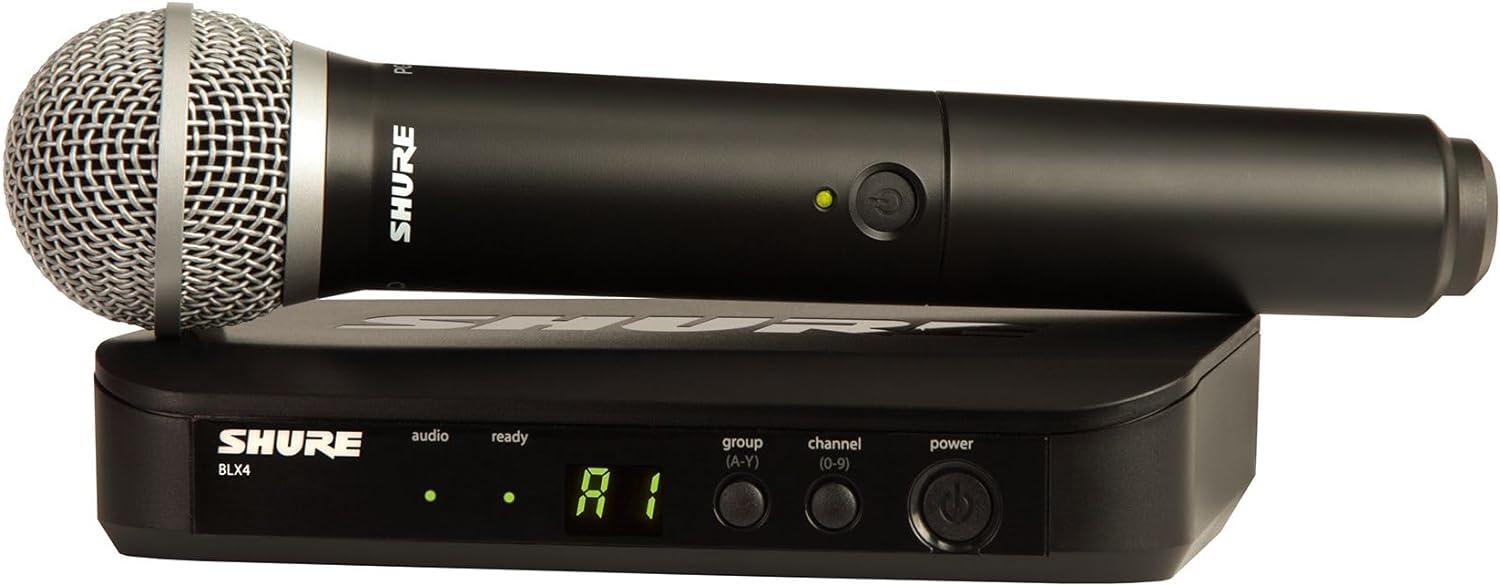

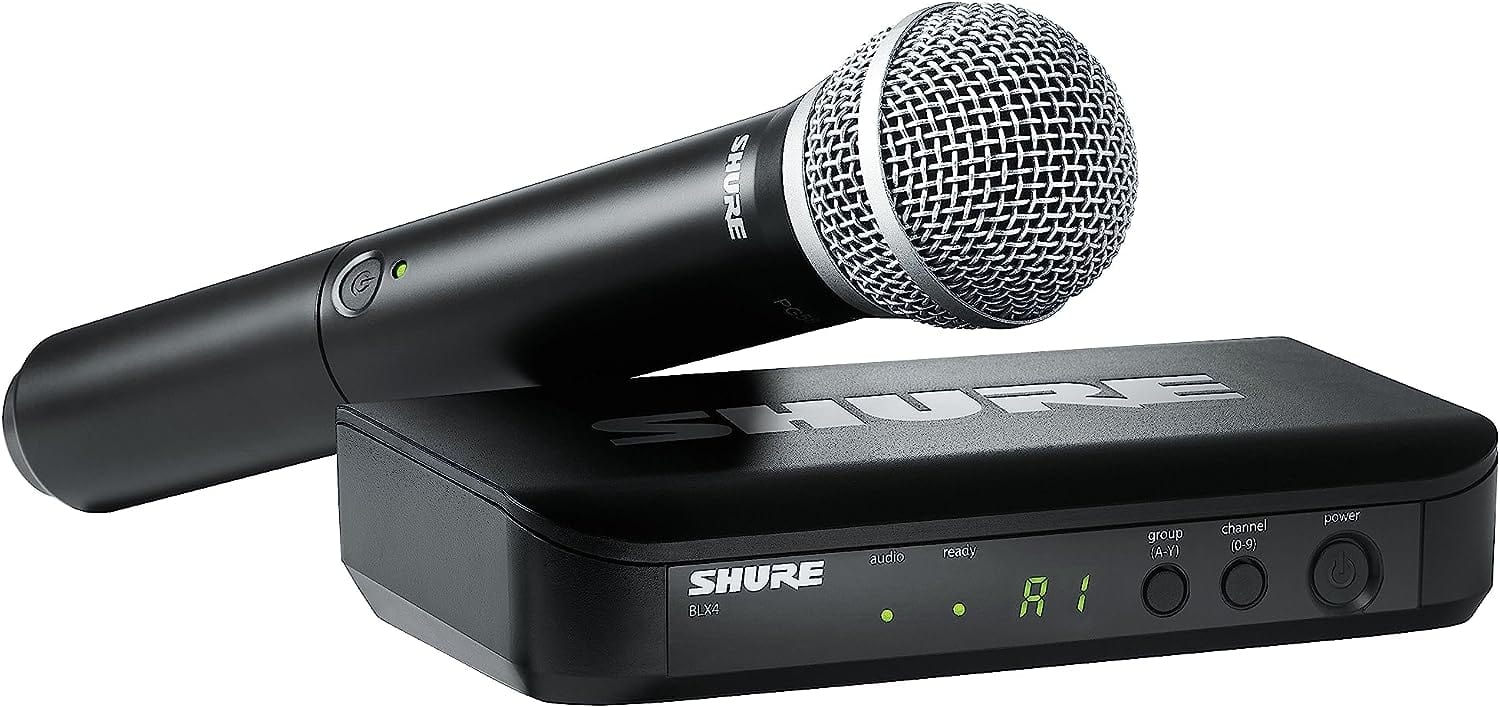

Shure BLX24 / PG58 Wireless Handheld Microphone - J11 Band
The Shure BLX24/PG58 Wireless Vocal System combines professional-quality sound with simple setup and up to 14 hours battery life for legendary audio performance right out of the box. The system includes BLX4 tabletop single-channel receiver, PG58 handheld transmitter, microphone clip, power supply, 2 AA batteries, and user guide.
Features:
- For Presenters and Performers

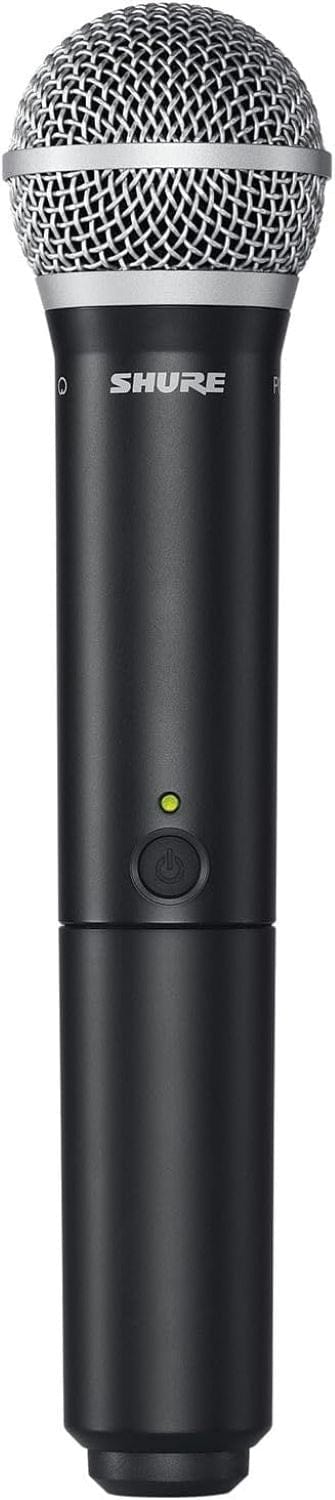

- PG58 Cardioid Mic/Transmitter
- Single-Channel Tabletop Receiver
- 123 Auto-Scan Frequencies
- Internal Antenna Diversity
- 14-Hr AA Batteries
- Expandable to 12 Mic Channels/300' Range
Specifications:
- System:
- Wireless Technology: Analog UHF
- Number of RF Channel Frequencies: 123
- Included Transmitters: 1x Handheld
- Diversity: Antenna Diversity
- RF Frequency Band: J11 (596 to 608 MHz - 614 to 616 MHz)
- RF Bandwidth: 14 MHz
- RF Channel Scanning: Auto-Scan
- Max Operating Range: 300' / 91.4 m (Line of Sight)
- Max Transmitters per Band: 12
- Dynamic Range: 100 dBA

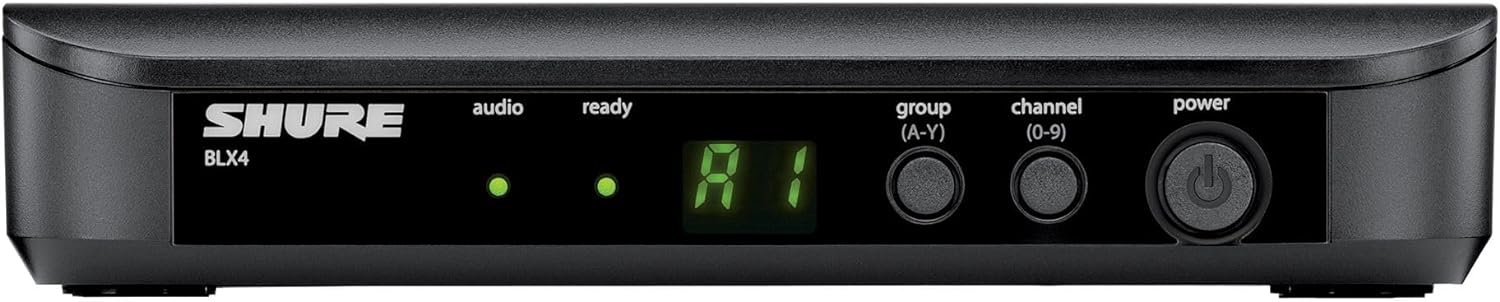

- Receiver:
- Receiver Type: Tabletop
- Antenna: 2x Internal
- Number of Audio Channels: 1

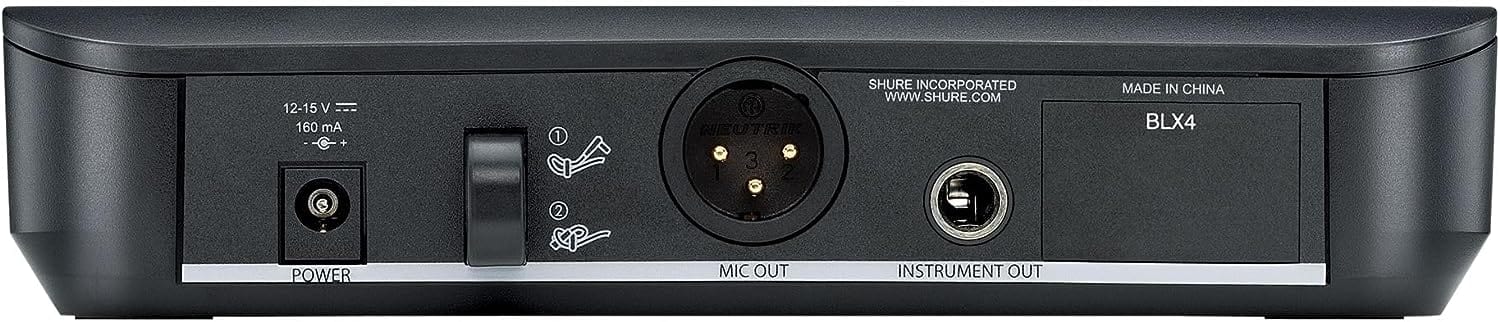

- Audio I/O:
- 1x XLR 3-Pin Male Balanced Output
- 1x 1/4" TS Female Unbalanced Output
- Audio Output Level:
- XLR Output: -27 dBV (Mic Level)
- 1/4" Output: -13 dBV (Instrument Level)
- Frequency Response: 50 Hz to 15 kHz (Dependent on Mic)
- Impedance:
- XLR Output: 200 Ohms
- 1/4" Output: 50 Ohms
- Power Requirements: AC/DC Power Adapter
- AC/DC Power Adapter: 12 to 15 VDC at 160 mA, Center-Positive (Included)
- AC Input Power: 100 to 240 VAC, 50 / 60 Hz
- Display & Indicators:
- 1x Multi-Segment LED (Channel, Group)
- 2x LED (AF Level, Sync)
- Housing: ABS
- Dimensions: 7.4 x 1.6 x 4.1" / 188 x 40 x 103 mm
- Weight: 8.5 oz / 241 g
- Transmitter:
- Transmitter Type: Handheld
- RF Output Power: 10 mW
- Audio I/O: No
- Muting: Off/On Switch
- Auto-Level Control: No
- Gain Range: -20 to -10 dB
- Sync Method: Manual
- Antenna: 1x Internal (Handheld)
- Power Requirements: Battery
- Battery Type: 2x AA (Included)
- Approx. Battery Life: 14 Hours (Alkaline)
- Display & Indicators:
- 1x Multi-Segment LED (Channel, Group)
- 1x LED (Battery Status, Power)
- Housing: ABS
- Dimensions: 2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm
- Weight: 7.7 oz / 218 g (without Batteries)
- Microphone:
- Microphone Type: Handheld Capsule
- Sound Field: Mono
- Capsule: Dynamic
- Polar Pattern: Cardioid
- Frequency Range: 50 Hz to 16 kHz
- Sensitivity: -55 dBV/Pa at 1 kHz
