Shure BLX24R Wireless Rack-mount Vocal System with SM58 - H11 Band

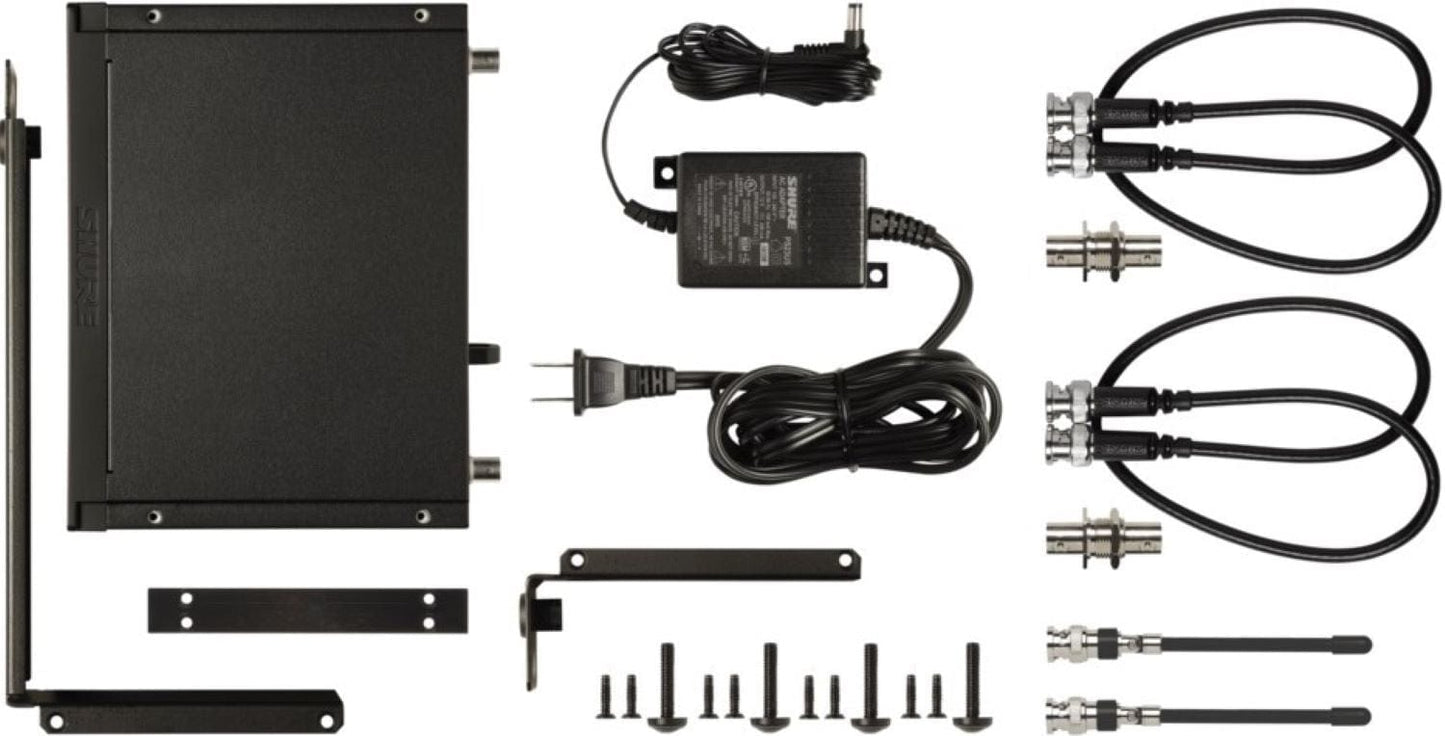

The Shure BLX24R/SM58 Wireless Rack-mount Vocal System combines professional-quality sound with simple setup and up to 14 hours battery life for legendary audio performance right out of the box. The system includes BLX4R half-rack single-channel receiver, legendary SM58 handheld transmitter, microphone clip, power supply, 2 AA batteries, rackmount kit, 2 1/4 wave antennas, and user guide.
Features:
- Superior Audio - Perform with Confidence
- Reliable Signal - Extend your range
- Easy Setup – Own the stage
- Battery Life – 14 hours of power
- Systems Expansions – Run up to 12 channels per frequency band
- Versatility Included – You’ve got options
Specifications:
- System:
- Wireless Technology: Analog UHF
- Number of RF Channel Frequencies: 123
- Included Transmitters: 1 x Bodypack
- Diversity: Antenna Diversity
- RF Frequency Band: H11 (572-596 MHz)
- RF Bandwidth: 24 MHz
- RF Channel Scanning: Auto-Scan
- Max Operating Range: 300' / 91.4 m (Line of Sight)
- Max Transmitters per Band: 12
- Dynamic Range: 100 dBA
- Receiver:
- Receiver Type: Tabletop
- Mounting Options: Rackmount (with Included Hardware)
- Rackmount Size:n 1 RU (1/2 Rack)
- Antenna: 2 x 1/4 Wave External, Detachable (Rear-Mount)
- Number of Audio Channels: 1
- Audio I/O:
- 1 x XLR 3-Pin Male Balanced Output
- 1 x 1/4" TS Female Unbalanced Output
- Audio Output Level:
- XLR Outputs: -20.5 dBV (Mic Level)
- 1/4" Outputs: -13 dBV (Instrument Level)
- Frequency Response: 50 Hz to 15 kHz (Dependent on Mic)
- Impedance:
- XLR Outputs: 200 Ohms
- 1/4" Outputs: 50 Ohms
- Adjacent Channel Isolation: >50 dB
- Power Requirements: AC/DC Power Adapter
- AC/DC Power Adapter: 12 to 15 VDC at 160 mA, Center-Positive (Included)
- Display & Indicators:
- 1 x Backlit LCD (AF Level, Channel, Group, Metering, RF Level)
- 1 x LED (Transmitter Battery Status)
- Housing: Steel
- Dimensions: 7.8 x 2 x 6.4" / 198 x 50 x 163 mm (without Mounting Hardware, Antennas)
- Weight: 35.2 oz / 998 g
- Transmitter:
- Transmitter Type: Handheld
- RF Output Power: 10 mW
- Audio I/O: None
- Muting: Off/On Switch
- Auto-Level Control: No
- Gain Range: -20 to -10 dB
- Sync Method: Manual
- Antenna: 1 x Internal (Handheld)
- Power Requirements: Battery
- Battery Type: 2 x AA (Included)
- Approx. Battery Life: 14 Hours (Alkaline)
- Display & Indicators:
- 1 x Multi-Segment LED (Channel, Group)
- 1 x LED (Battery Status, Power)
- Housing: ABS
- Dimensions: 2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm
- Weight: 7.7 oz / 218 g (without Batteries)
- Microphone:
- Microphone Type: Handheld Capsule
- Color: Black
- Sound Field: Mono
- Capsule: Dynamic
- Polar Pattern: Cardioid
- Frequency Range: 50 Hz to 15 kHz
- Sensitivity: -54.5 dBV/Pa
- Packaging Info:
- Package Weight: 6.895 lb
- Box Dimensions (LxWxH): 18.3 x 14.9 x 3.8"
- System:
- Wireless Technology: Analog UHF
- Number of RF Channel Frequencies: 123
- Included Transmitters: 1 x Bodypack
- Diversity: Antenna Diversity
- RF Frequency Band: H11 (572-596 MHz)
- RF Bandwidth: 24 MHz
- RF Channel Scanning: Auto-Scan
- Max Operating Range: 300' / 91.4 m (Line of Sight)
- Max Transmitters per Band: 12
- Dynamic Range: 100 dBA
- Receiver:
- Receiver Type: Tabletop
- Mounting Options: Rackmount (with Included Hardware)
- Rackmount Size:n 1 RU (1/2 Rack)
- Antenna: 2 x 1/4 Wave External, Detachable (Rear-Mount)
- Number of Audio Channels: 1
- Audio I/O:
- 1 x XLR 3-Pin Male Balanced Output
- 1 x 1/4" TS Female Unbalanced Output
- Audio Output Level:
- XLR Outputs: -20.5 dBV (Mic Level)
- 1/4" Outputs: -13 dBV (Instrument Level)
- Frequency Response: 50 Hz to 15 kHz (Dependent on Mic)
- Impedance:
- XLR Outputs: 200 Ohms
- 1/4" Outputs: 50 Ohms
- Adjacent Channel Isolation: >50 dB
- Power Requirements: AC/DC Power Adapter
- AC/DC Power Adapter: 12 to 15 VDC at 160 mA, Center-Positive (Included)
- Display & Indicators:
- 1 x Backlit LCD (AF Level, Channel, Group, Metering, RF Level)
- 1 x LED (Transmitter Battery Status)
- Housing: Steel
- Dimensions: 7.8 x 2 x 6.4" / 198 x 50 x 163 mm (without Mounting Hardware, Antennas)
- Weight: 35.2 oz / 998 g
- Transmitter:
- Transmitter Type: Handheld
- RF Output Power: 10 mW
- Audio I/O: None
- Muting: Off/On Switch
- Auto-Level Control: No
- Gain Range: -20 to -10 dB
- Sync Method: Manual
- Antenna: 1 x Internal (Handheld)
- Power Requirements: Battery
- Battery Type: 2 x AA (Included)
- Approx. Battery Life: 14 Hours (Alkaline)
- Display & Indicators:
- 1 x Multi-Segment LED (Channel, Group)
- 1 x LED (Battery Status, Power)
- Housing: ABS
- Dimensions: 2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm
- Weight: 7.7 oz / 218 g (without Batteries)
- Microphone:
- Microphone Type: Handheld Capsule
- Color: Black
- Sound Field: Mono
- Capsule: Dynamic
- Polar Pattern: Cardioid
- Frequency Range: 50 Hz to 15 kHz
- Sensitivity: -54.5 dBV/Pa
- Packaging Info:
- Package Weight: 6.895 lb
- Box Dimensions (LxWxH): 18.3 x 14.9 x 3.8"
