Description

Shure BLX1288 Wireless Combo System with SM58 Handheld and WL185 Lavalier - H11 Band

The Shure BLX1288/W85 Wireless Combo System combines professional-quality sound with simple setup and up to 14 hours battery life for great versatility and legendary audio performance right out of the box.

The system includes BLX88 dual-channel receiver, WL185 lavalier microphone w/ BLX1 bodypack transmitter and legendary SM58 handheld transmitter, power supply, microphone clip, lavalier clip, lavalier windscreens, 2 sets of AA batteries, and user guide.

Features:

  • Superior Audio - Perform with Confidence
  • Reliable Signal - Extend your range
  • Easy Setup – Own the stage
  • Battery Life – 14 hours of power
  • Systems Expansions – Run up to 12 channels per frequency band
  • Versatility Included – You’ve got options

Specifications:

  • System:
    • Wireless Technology: Analog UHF
    • Number of RF Channel Frequencies: 123
    • Included Transmitters:
      • 1 x Bodypack
      • 1 x Handheld
    • Diversity: Antenna Diversity
    • RF Frequency Band: H11 (572-596 MHz)
    • RF Bandwidth: 24 MHz
    • RF Channel Scanning: Auto-Scan
    • Max Operating Range: 300' / 91.4 m (Line of Sight)
    • Max Transmitters per Band: 12
  • Receiver:
    • Receiver Type: Tabletop
    • Antenna: 2 x Internal, Fixed
    • Number of Audio Channels: 2
    • Audio I/O:
      • 2 x XLR 3-Pin Male Balanced Output
      • 2 x 1/4" TS Female Unbalanced Output
    • Audio Output Level:
      • XLR Outputs: -27 dBV (Mic Level)
      • 1/4" Outputs: -13 dBV (Instrument Level)
    • Frequency Response: 50 Hz to 15 kHz (Dependent on Mic)
    • Impedance:
      • XLR Outputs: 200 Ohms
      • 1/4" Outputs: 50 Ohms
    • Approximate RF Sensitivity: -105 dBm
    • Power Requirements: AC/DC Power Adapter
    • AC/DC Power Adapter: 12 to 15 VDC at 160 mA, Center-Positive (Included)
    • AC Input Power: 100 to 240 VAC, 50 / 60 Hz at 150 mA
    • Display & Indicators:
      • 1 x Multi-Segment LED (Channel, Group)
      • 2 x LED (AF Level, Sync)
    • Housing: ABS
    • Operating Temperature: 0 to 135°F / -17 to 57°C
    • Dimensions: 15.3 x 1.6 x 4.6" / 388 x 40 x 116 mm
    • Weight: 15.1 oz / 429 g

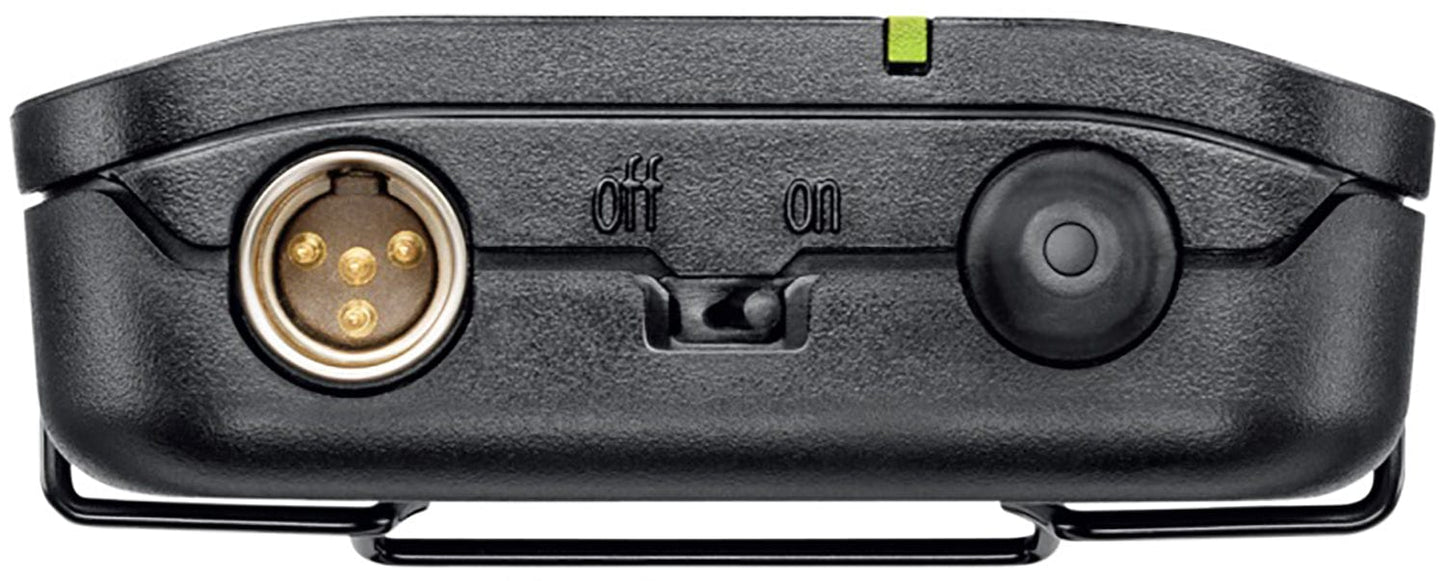

  • Transmitter:
    • Transmitter Type: Bodypack
    • RF Output Power: 10 mW
    • Audio I/O: 1 x TA4/Mini XLR 4-Pin Male Input (Lockable)
    • Muting: Off/On Switch
    • Auto-Level Control: No
    • Gain Range: -16 to +10 dB
    • Sync Method: Manual
    • Antenna: 1 x Flexible Whip, Fixed (Beltpack)
    • Power Requirements: Battery
    • Battery Type: 2 x AA (Included)
    • Approx. Battery Life: 14 Hours (Alkaline)
    • Display & Indicators:
      • 1 x Multi-Segment LED (Channel, Group)
      • 1 x LED (Battery Status, Power)
    • Housing: ABS
    • Dimensions: 2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm
    • Weight: 2.6 oz / 75 g (without Batteries)
  • Microphone:
    • Microphone Type: Lavalier
    • Sound Field: Mono
    • Capsule: Electret Condenser
    • Polar Pattern: Cardioid
    • Frequency Range: 50 Hz to 17 kHz
    • Equivalent Noise Level: 28 dB A-Weighted
    • Maximum SPL: 130.5 dB SPL
    • Impedance: 1800 Ohms
    • Dynamic Range: 102.5 dB
    • Output Connector: 1 x TA4/Mini XLR 4-Pin Female (Lockable)
    • Cable Length: 4.00' / 1.22 m
    • Operating Voltage: 1.5 to 10 V
  • Transmitter 2:
    • Transmitter Type: Handheld
    • RF Output Power: 10 mW
    • Audio I/O: None
    • Muting: Off/On Switch
    • Auto-Level Control: No
    • Gain Range: -20 to -10 dB
    • Sync Method: Manual
    • Antenna: 1 x Internal (Handheld)
    • Power Requirements: Battery
    • Battery Type: 2 x AA (Included)
    • Approx. Battery Life: 14 Hours (Alkaline)
    • Display & Indicators:
      • 1 x Multi-Segment LED (Channel, Group)
      • 1 x LED (Battery Status, Power)
    • Housing: ABS
    • Dimensions: 2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm
    • Weight: 7.7 oz / 218 g (without Batteries)
  • Microphone 2:
    • Second Microphone Type: Handheld Capsule
    • Sound Field: Mono
    • Capsule: Dynamic
    • Polar Pattern: Cardioid
    • Frequency Range: 50 Hz to 15 kHz
  • Packaging Info:
    • Package Weight: 5.05 lb
    • Box Dimensions (LxWxH): 19.2 x 16.1 x 3.5"
