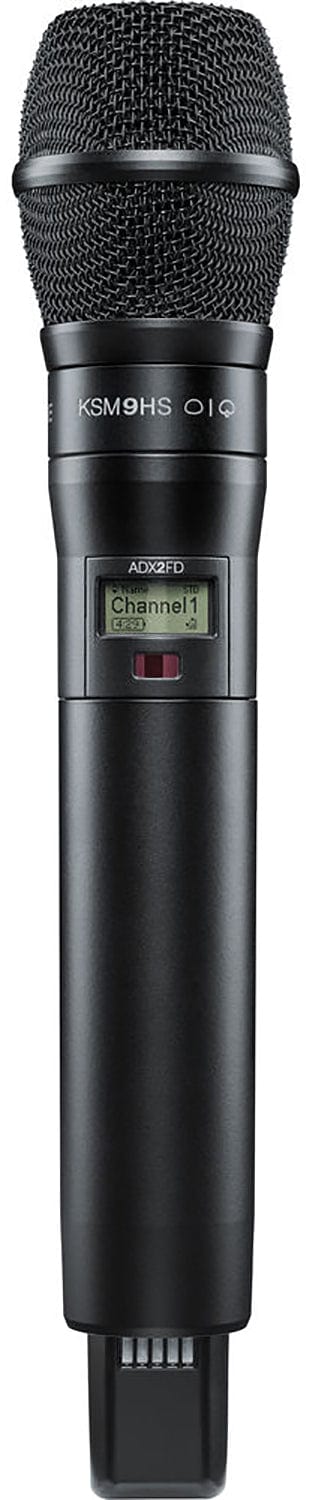

Shure Axient ADX2FD/K9HSB Handheld Wireless Microphone Transmitter - G57 Band
ADX2FD, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.
Features:
- Ability to transmit RF signal on two discrete carriers
- Optional 50 mW High Power mode for driving increased power on a single frequency
- Durable, moisture-resistant, lightweight metal case
- Available in black or nickel finish
- Up to 6.5 hours of runtime with SB920A rechargeable batteries when transmitting on two RF carriers, Up to 9 hours of battery life when transmitting on a single RF carrier
- External contacts for docked charging with optional fully-covered radome
- Diversity ShowLink® enabled for remote transmitter control and automatic interference avoidance
- Two transmission modes:
- Standard for optimal coverage
- New High Density for maximum system channel count and robust coverage
- Encryption-enabled, secure transmission
Specifications:
- Gain Offset Range: –12 to 21 dB (in 1 dB steps)
- Battery Type: SB920A Rechargeable Lithium-Ion
- Battery Run Time (@10 mW):
- Single-Carrier Mode: up to 9 hours
- Frequency Diversity: up to 6.5 hours
- Dimensions (L × Dia.): 10.0 × 2.0 in (254 × 51 mm)
- Weight: 11.9 oz (338 g) without batteries
- Housing: Cast Aluminum
- Audio Input:
- Configuration: Unbalanced
- Maximum Input Level (1 kHz at 1% THD): 145 dB SPL, typical (SM58)
- RF Output:
- Integrated Dual-Band Helical
- Occupied Bandwidth: <200 kHz
- Channel-to-Channel Spacing:
- Standard Mode: 350 kHz
- High-Density Mode: 125 kHz
- Modulation Type: Shure Axient Digital Proprietary
- Power:
- Single Carrier Mode: 2 mW, 10 mW, 20 mW, 50 mW
- Frequency Diversity Mode: 2 × 20 mW
- Specific Absorption Rate (SAR): <0.21 W/kg
- ShowLink®:
- Network Type: IEEE 802.15.4
- Antenna Type: ZigBee Dual Conformal
- Frequency Range: 2.40 to 2.4835 GHz (24 Channels)
- RF Output Power Varies By Region: 10 dBm (ERP)
- Frequency Band: 941 to 960 Mhz
