Description

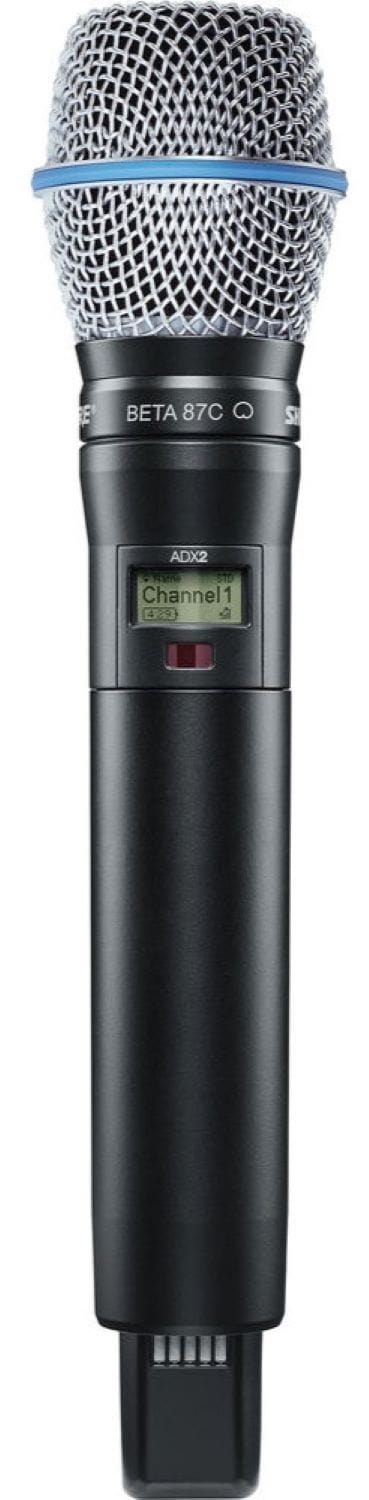

Shure Axient ADX2/B87C Handheld Wireless Microphone Transmitter - G57 Band

ADX2, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.

Features:

  • Durable, moisture-resistant, lightweight metal case in black finish
  • Up to 9 hours of runtime with SB920A rechargeable battery
  • External contacts for docked charging with optional fully covered radome
  • Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
  • Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
  • Encryption-enabled, secure transmission

Specifications:

  • Gain Offset Range: –12 to 21 dB (in 1 dB steps)
  • Battery Type: SB920A Rechargeable Lithium-Ion
  • Battery Run Time @10 mW: up to 9 hours
  • Dimensions (L × Dia.):
    • 10.0 × 2.0 in
    • (254 × 51 mm)
  • Weight: 11.9 oz (338 g) without battery
  • Housing: Cast Aluminum
  • Audio Input:
      Configuration: Unbalanced Maximum Input Level 1 kHz at 1% THD: 145 dB SPL, typical (SM58)
  • RF Output:
    • Antenna Type: Integrated Single-Band Helical
    • Occupied Bandwidth: <200 kHz
    • Modulation Type: Shure Axient Digital Proprietary
    • Power: 2 mW, 10 mW, 20 mW
    • Specific Absorption Rate (SAR): <0.19 W/kg
  • Showlink®:
      Network Type: IEEE 802.15.4 Antenna Type: ZigBee Dual Conformal Frequency Range: 2.40 to 2.4835 GHz (24 Channels) RF Output Power Varies By Region: 10 dBm (ERP)
  • Frequency Band: 470 to 616 Mhz
