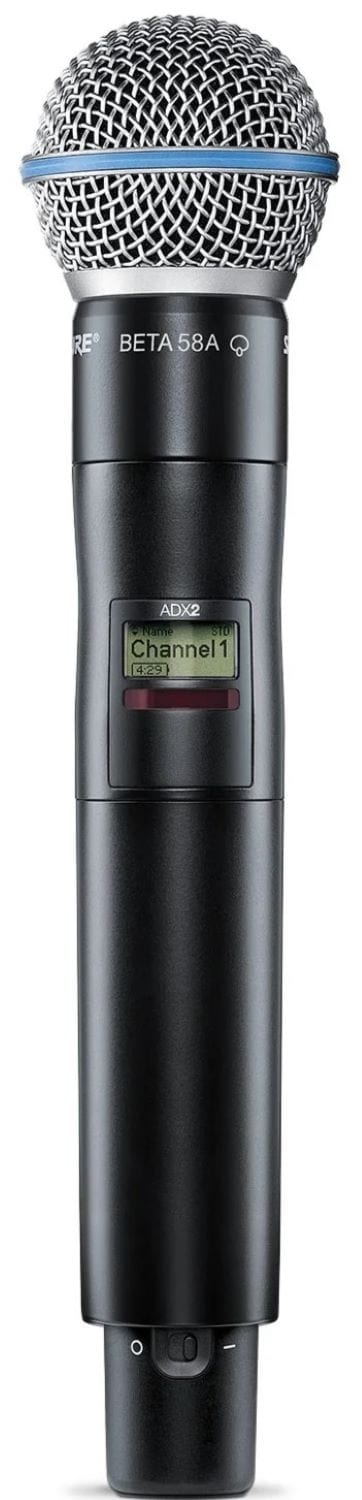

Shure Axient ADX2/B58 Handheld Wireless Microphone Transmitter - K54 Band

ADX2/B58, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.

Features:

  • Durable, moisture-resistant, lightweight metal case in black finish
  • Up to 9 hours of runtime with SB920A rechargeable battery
  • External contacts for docked charging with optional fully covered radome
  • Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
  • Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
  • Encryption-enabled, secure transmission

Specifications:

  • Gain Offset Range: –12 to 21 dB (in 1 dB steps)
  • Battery Type: SB920A Rechargeable Lithium-Ion
  • Battery Run Time @10 mW: up to 9 hours
  • Dimensions (L × Dia.):
    • 10.0 × 2.0 in
    • (254 × 51 mm)
  • Weight: 11.9 oz (338 g) without battery
  • Housing: Cast Aluminum
  • Audio Input:
      Configuration: Unbalanced Maximum Input Level 1 kHz at 1% THD: 145 dB SPL, typical (SM58)
  • RF Output:
    • Antenna Type: Integrated Single-Band Helical
    • Occupied Bandwidth: <200 kHz
    • Modulation Type: Shure Axient Digital Proprietary
    • Power: 2 mW, 10 mW, 20 mW
    • Specific Absorption Rate (SAR): <0.19 W/kg
  • Showlink®:
      Network Type: IEEE 802.15.4 Antenna Type: ZigBee Dual Conformal Frequency Range: 2.40 to 2.4835 GHz (24 Channels) RF Output Power Varies By Region: 10 dBm (ERP)
  • Frequency Band: 606 to 663 Mhz
