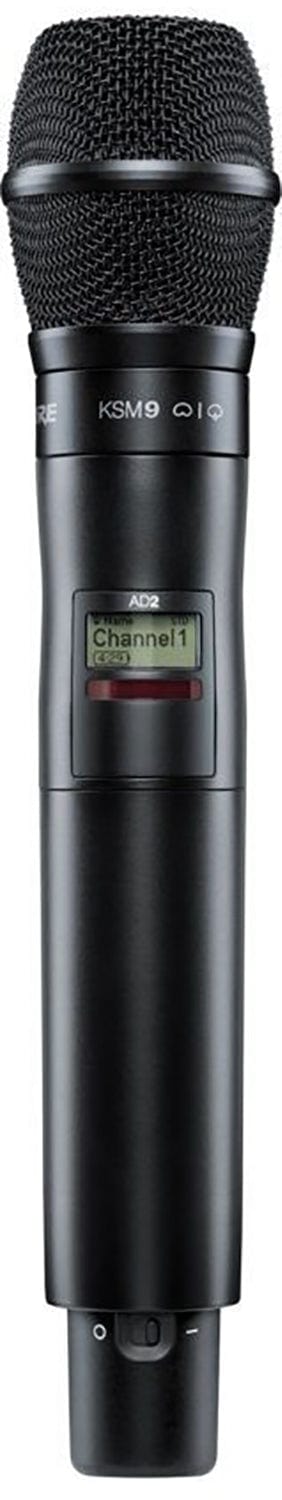

Shure Axient AD2/KSM9 Handheld Wireless Microphone Transmitter - K54 Band
The nickel Shure AD2/KSM9N is a digital handheld wireless microphone transmitter compatible with Axient Digital series receivers.
The AD2/KSM9N comes equipped with a dual-diaphragm KSM9 condenser capsule that captures sonic nuances with superior detail delivering precise vocal reproduction for high-end live performances. The KSM9 capsule offers two switchable polar patterns to provide FOH engineers with more choices in dealing with varying environments or the microphone techniques of different performers. The cardioid pattern offers solid gain before feedback, with minimal off-axis coloration, for a warm, full sound. The supercardioid pattern offers increased sound isolation and gain before feedback; an ideal choice for applications where there are high levels of ambient noise, or where multiple instruments or vocalists are close together.
Features:
- For Axient Digital Systems
- KSM9 Condenser Cardioid/Supercardioid
- Automatic Gain Adjustment
- 2/10/35mW RF Output Power
- Mute Mode, Backlit LCD
- Secure AES-256 Encryption
- Networked Intelligent Charging
- Interchangeable Capsule Design
- 9 Hours with SB900A Rechargeable Battery
Specifications:
- RF Frequency Band: 606 to 663 MHz
- RF Bandwidth: 146 MHz
- Frequency Step Size: 25 kHz
- Max Operating Range: 328.1' / 100 m (Line of Sight)
- Latency: 2 to 2.9 ms (Selectable)
- Encryption: AES 256
- Modulation: Proprietary
- Transmitter:
- Transmitter Type: Handheld
- RF Output Power: 2 / 10 / 35 mW
- Audio I/O: None
- Muting: Mute Switch
- Audio Input Level: 145 dB
- Gain Range: -12 to +21 dB (3 dB Steps)
- Sync Method: IR
- Antenna: 1 x Internal Single-Band Helical (Handheld)
- Power Requirements: Battery
- Battery Type:
- 2 x AA (Included)
- 1 x Shure SB900A (Not Included, Replaceable)
- Approx. Battery Life:
- Med.: 8 Hours (Alkaline)
- Med.:: 9 Hours (Lithium Shure SB900A)
- Display & Indicators: 1 x LCD (Battery Status, Channel, Group, Signal Strength)
- Housing: Aluminum
- Operating Temperature: 0 to 122°F / -17 to 50°C
- Storage Temperature: -20 to 165°F / -28 to 73°C
- Dimensions: 2 x 10.1" / 51 x 256 mm
- Weight: 12 oz / 340 g (without Batteries)
- Microphone:
- Microphone Type: Handheld Capsule
- Sound Field: Mono
- Capsule: Electret Condenser
- Polar Pattern: Cardioid, Supercardioid
- Frequency Range: 50 Hz to 20 kHz
- Maximum SPL: 152 dB SPL
- Sensitivity: -52.5 dBV/Pa at 1 kHz
- RF Frequency Band: 606 to 663 MHz
- RF Bandwidth: 146 MHz
- Frequency Step Size: 25 kHz
- Max Operating Range: 328.1' / 100 m (Line of Sight)
- Latency: 2 to 2.9 ms (Selectable)
- Encryption: AES 256
- Modulation: Proprietary
- Transmitter:
- Transmitter Type: Handheld
- RF Output Power: 2 / 10 / 35 mW
- Audio I/O: None
- Muting: Mute Switch
- Audio Input Level: 145 dB
- Gain Range: -12 to +21 dB (3 dB Steps)
- Sync Method: IR
- Antenna: 1 x Internal Single-Band Helical (Handheld)
- Power Requirements: Battery
- Battery Type:
- 2 x AA (Included)
- 1 x Shure SB900A (Not Included, Replaceable)
- Approx. Battery Life:
- Med.: 8 Hours (Alkaline)
- Med.:: 9 Hours (Lithium Shure SB900A)
- Display & Indicators: 1 x LCD (Battery Status, Channel, Group, Signal Strength)
- Housing: Aluminum
- Operating Temperature: 0 to 122°F / -17 to 50°C
- Storage Temperature: -20 to 165°F / -28 to 73°C
- Dimensions: 2 x 10.1" / 51 x 256 mm
- Weight: 12 oz / 340 g (without Batteries)
- Microphone:
- Microphone Type: Handheld Capsule
- Sound Field: Mono
- Capsule: Electret Condenser
- Polar Pattern: Cardioid, Supercardioid
- Frequency Range: 50 Hz to 20 kHz
- Maximum SPL: 152 dB SPL
- Sensitivity: -52.5 dBV/Pa at 1 kHz
