Description

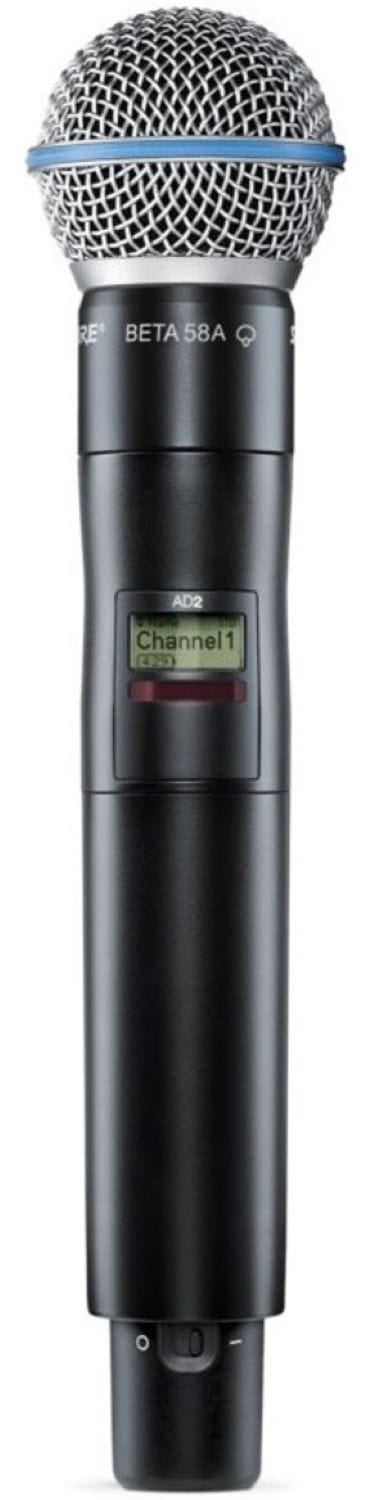

Shure Axient AD2/B58A Handheld Wireless Microphone Transmitter - K54 Band

The Shure AD2/B58 is a digital handheld wireless microphone transmitter compatible with Axient Digital series receivers.

The transmitter operates in a single 146 MHz ultrawide UHF bandwidth with selectable 2/10/35mW RF output power and a transmission range up to 330'. It provides up to 8 hours of operation on two AA batteries and up to 9 hours with an SB900A lithium-ion rechargeable battery (available separately).

Features:

  • For Axient Digital Systems
  • Beta 58A Dynamic Supercardioid Mic
  • Automatic Gain Adjustment
  • 2/10/35mW RF Output Power
  • Mute Mode, Backlit LCD
  • Secure AES-256 Encryption
  • Networked Intelligent Charging
  • Interchangeable Capsule Design
  • 9 Hr with SB900A Rechargeable Battery

Specifications:

  • RF Frequency Band: 606-663 MHz
  • RF Bandwidth: 146 MHz
  • Frequency Step Size: 25 kHz
  • Max Operating Range: 328.1' / 100 m (Line of Sight)
  • Latency: 2 to 2.9 ms (Selectable)
  • Encryption: AES 256
  • Modulation: Proprietary
  • Transmitter:
    • Transmitter Type: Handheld
    • RF Output Power: 2 / 10 / 35 mW
    • Audio I/O: None
    • Muting: Mute Switch
    • Audio Input Level: 145 dB
    • Gain Range: -12 to +21 dB (3 dB Steps)
    • Sync Method: IR
    • Antenna: 1 x Internal Single-Band Helical (Handheld)
    • Power Requirements: Battery
    • Battery Type:
      • 2 x AA (Included)
      • 1 x Shure SB900A (Not Included, Replaceable)
    • Approx. Battery Life:
      • Med.: 8 Hours (Alkaline)
      • Med.: 9 Hours (Lithium Shure SB900A)
    • Display & Indicators: 1 x LCD (Battery Status, Channel, Group, Signal Strength)
    • Housing: Aluminum
    • Operating Temperature: 0 to 122°F / -17 to 50°C
    • Storage Temperature: -20 to 165°F / -28 to 73°C
    • Dimensions: 2 x 10.1" / 51 x 256 mm
    • Weight: 12 oz / 340 g (without Batteries)
  • Microphone:
    • Microphone Type: Handheld Capsule
    • Sound Field: Mono
    • Capsule: Dynamic
    • Polar Pattern: Supercardioid
    • Frequency Range: 50 Hz to 16 kHz
    • Sensitivity: -51.5 dBV/Pa at 1 kHz
  • Packaging Info:
    • Package Weight: 1.645 lb
    • Box Dimensions (LxWxH): 12.8 x 4.95 x 3.6"
