Shure ADX5BP-TA3 Dual TA3 Back Plate for Axient Digital ADX5D Wireless Receiver

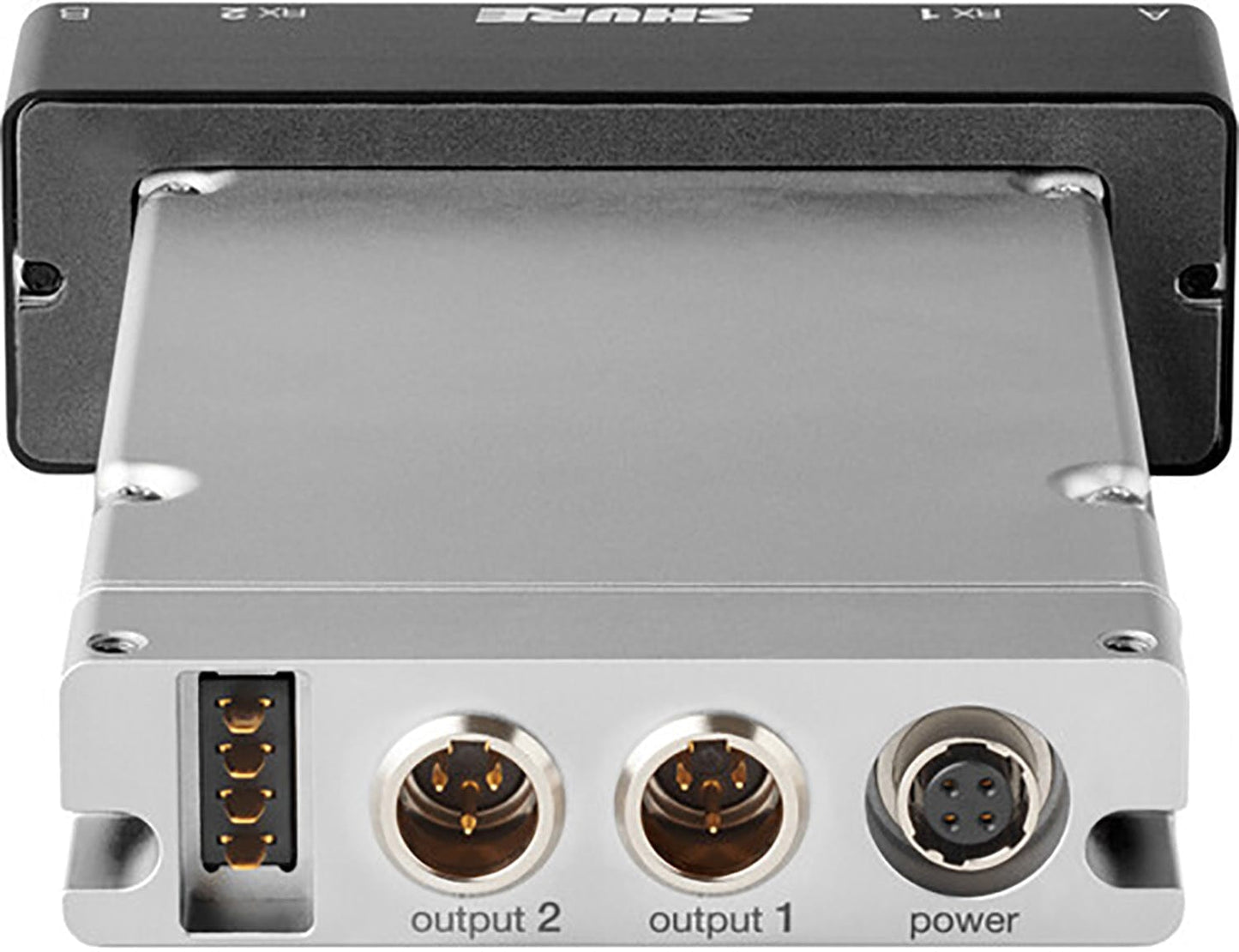

One of the major advantages of the slot-in wireless receiver form factor is its versatility, allowing for multiple applications such as insertion into a camera, multi-coupler device, or standalone use with power provided by a battery distribution system (BDS) or battery sled. The ADX5BP-TA3 Backplate provides standalone connectivity for the Axient® Digital ADX5D, facilitating integration into professional broadcast cameras, multi-coupler devices, and battery distribution systems (BDS). It features a 4-pin connector for mating with a Shure battery sled, two TA3 (mini 3-pin XLR) audio output connectors, and a 4-pin locking Hirose power input connector. Captive Phillips-head screws ensure easy installation to the ADX5D. The backplate offers two channels of audio output: both analog, though Output 1 can be configured for digital AES3 output via the device menu (analog Output 2 is disabled when AES3 is selected).

Features:

• TA3 backplate for the Axient Digital ADX5D dual-channel portable wireless receiver
• 2 x TA3 analog outputs
• Output 1 can be configured as two-channel AES3 digital outputs (Output 2 is disabled when AES3 is selected)
• 1 x 4-pin power connector for battery sled use
• 1 x Hirose 4-pin power connector
• Input voltage: 6V DC to 18V DC
• Captive Phillips head screws provide simple installation to the ADX5D
• Compatible with the Shure WA451 audio cable (TA3F-to-XLR)

Specifications:

• Mounting:
  • Mounting: Not specified by manufacturer
  • Clamping range: Not specified by manufacturer
  • Included rods: Yes
  • VESA mounting pattern: Yes
• General:
  • Power I/O:
    • 1x Hirose (18 VDC) input
    • 1x Proprietary (18 VDC) input
  • Audio I/O:
    • 2x Mini-XLR 3-pin AES3/Line output
