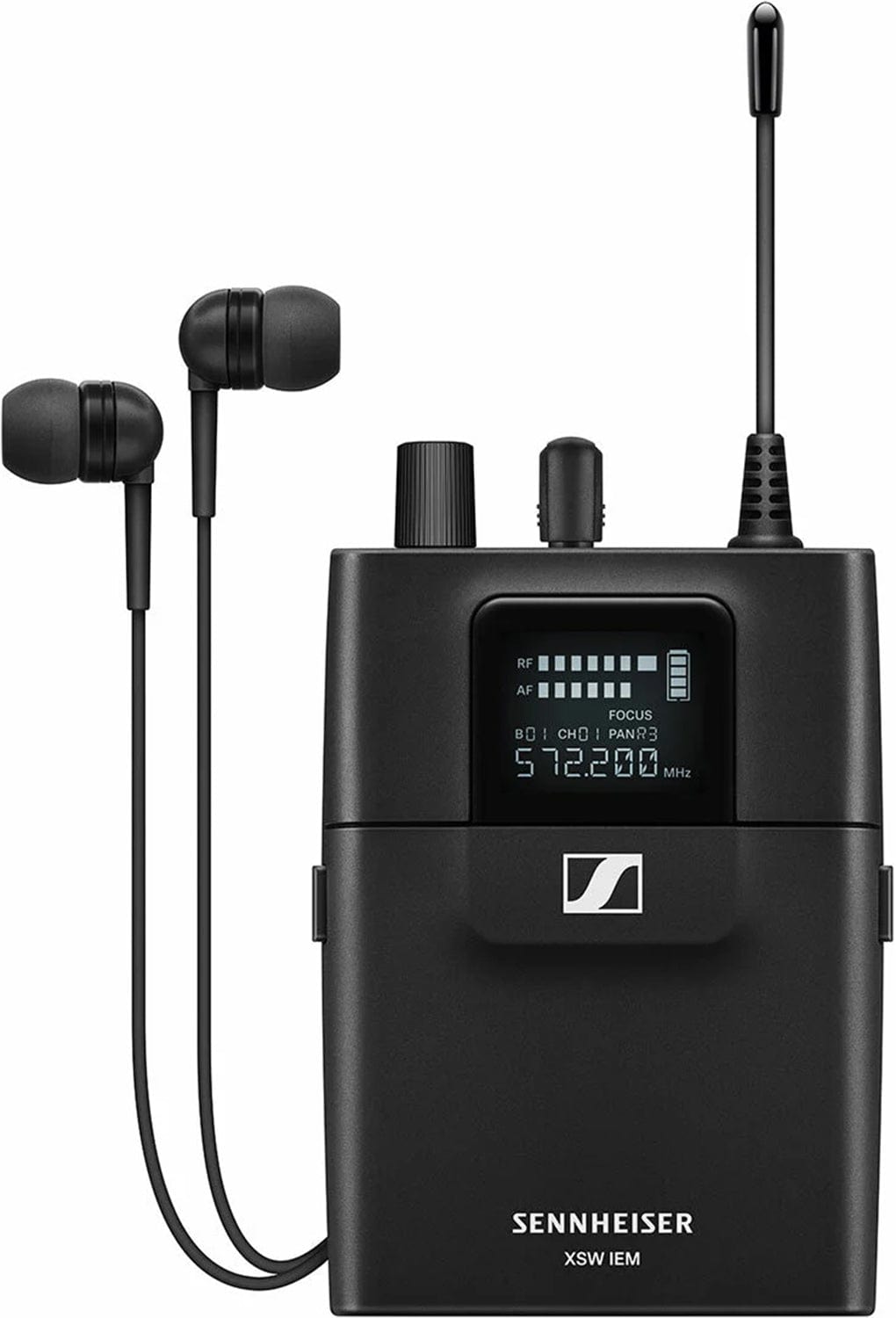

Sennheiser XSW EK In Ear Monitor Belt Pack Receiver and Headphones (572-596 Megahertz)

The Sennheiser XSW IEM EK is a Lightweight in-ear stereo monitoring bodypack receiver– part of the XS Wireless IEM series. With XS Wireless IEM, you can easily link additional receivers to one transmitter – connecting more band members to a new level of detail. The lightweight bodypack remains unnoticed once clipped on your clothing or belt. You can plug in the included IE 4 headphones or upgrade to the IE PRO series with the 3.5 mm output. The status LED shows battery and link status at a glance – while the front panel allows for individual fine-tuning, from balance to focus modes to EQ to Limiter, so you can design your individual mix.

Features:

  • UHF bodypack receiver to expand existing XS Wireless IEM setups
  • Lightweight bodypack with rear clamp and stage-proof control panel
  • Standard 3.5 mm jack plug for supplied IE 4 headphones or optional in-ear sets
  • Backlit front panel and status LED for battery and link status
  • Menu access to receiver sound settings like focus modes, volume control, limiter, and EQ
  • Pan control for individual balance of the input channels
  • Operates with 2x AA primary cells or rechargeable batteries

Specifications:

  • Frequency range: 572-596 MHz
  • Dimensions: Approx. 95 x 70 x 26 mm
  • Weight (incl. batteries): ca. 110 g
  • Switching bandwidth: up to 24 MHz
  • Temperature Range: 0 °C to +40 °C
  • AF frequency response: 45 Hz to 15 kHz
  • Modulation: Wideband FM
  • Signal-to-noise ratio (1 mV, peak deviation): ≥88 dB
  • AF output level at 3.5 mm: 2 x 1,25 Veff at 16 Ω
  • High Boost (EQ): +10 dB at 13 kHz
  • Total harmonic distortion (THD): ≤ 1 %
  • Limiter: -10 dB
  • Power supply: 2 AA batteries, 1.5 V
  • Operating time: Approx. 6 hrs
