Sennheiser SL TS 133 GN SET DW-4 US Wireless Table Microphone Set

The SpeechLine Digital Wireless Table stand Set SL TS 133 GN Set DW from Sennheiser includes the SL Table stand 133-S DW, the MEG 14-40 B goose-neck microphone, the SL Rack Receiver DW and everything needed for usage and installation. The wireless SL Table stand 133-S DW together the included MEG 14-40 B goose-neck microphone with cardioid pickup pattern is dedicated to speech.

Because of its compatibility with all Sennheiser XLR-3 goose-neck microphones, the SL DW Wireless Table stand 133-S is optimized for podium discussions, speeches and lectures.

Being independent from any cables, the SL Table stand 133-S DW offers a highly flexible solution for users. It features the most common wireless Qi charging standard. It can either be charged wirelessly or via USB. The wireless charging base CHG 2W for two mobile devices is available separately. The SL Table stand 133-S DW Set comes with rechargeable accupack with up to 10 hours of operating time. It can be monitored and controlled with the Sennheiser Control Cockpit.

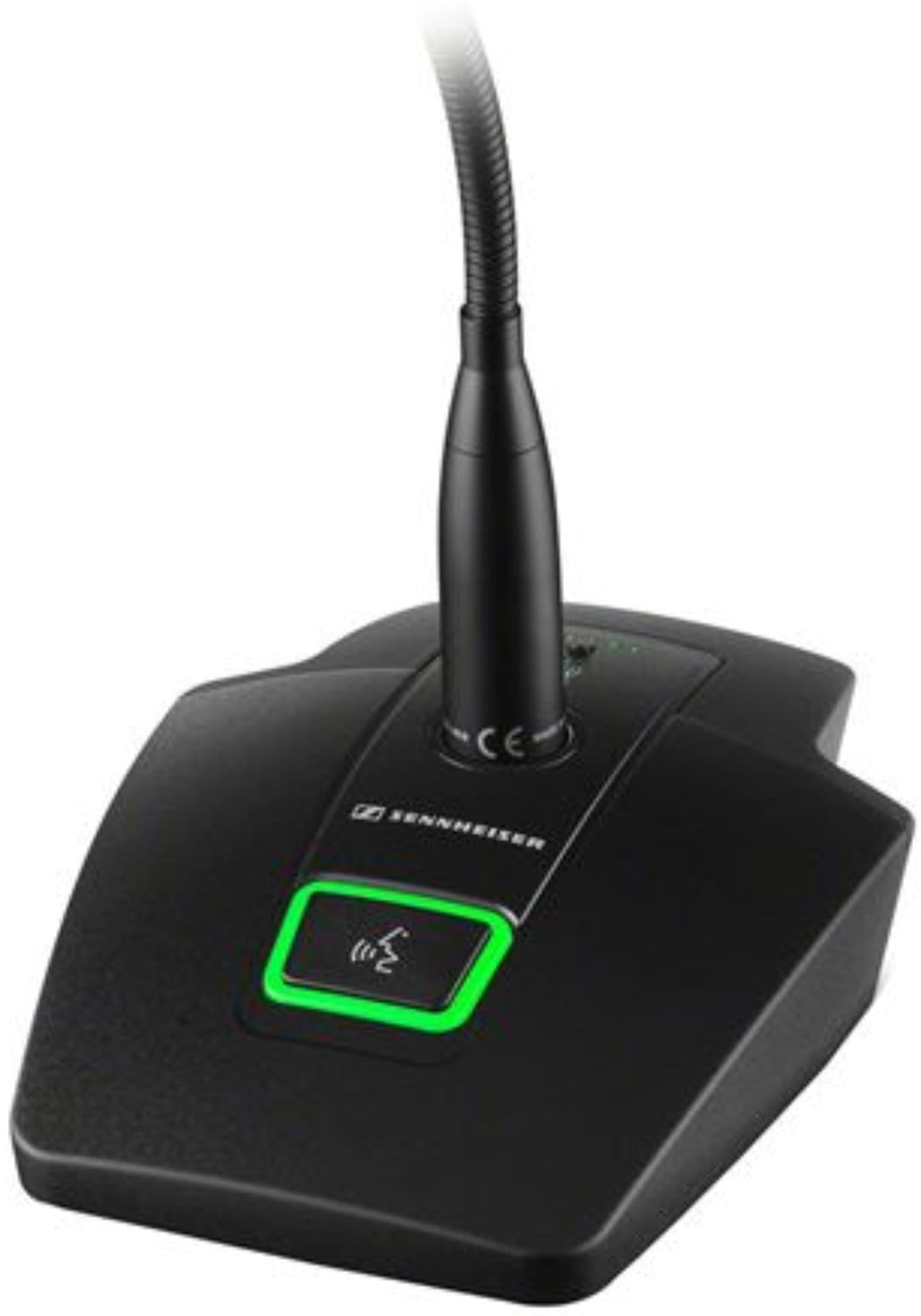

Sennheiser SL Tablestand 133-S DW S B Wireless Table Stand

The SL Tablestand 133-S DW S is a sturdy, wireless table stand that provides a stable base for XLR-3 gooseneck microphones. It has a user-friendly microphone button with a two-color status display that provides quick visual feedback on whether the microphone is active or muted. The model is available in black color.

The wireless SL Tablestand 133-S DW is dedicated to speech. Because of its compatibility with all Sennheiser XLR-3 gooseneck microphones and the legendary Sennheiser capsules, the SL DW Wireless Tablestand 133-S is optimized for podium discussions, speeches and lectures. Being independent from any cables, the SL Tablestand 133-S DW offers a highly flexible solution for users. It features the most common wireless charging standard Qi. It can either be charged wirelessly or via USB. The wireless charging base CHG 2W for two mobile devices is available separately. The SL Tablestand 133-S DW comes with rechargeable accupack with up to 10 hours of operating time. The SL Tablestand 133-S DW can be monitored and controlled with the Sennheiser Control Cockpit.

Sennheiser MEG 14-40 B Gooseneck Microphone with 3-Pin XLR-M - Cardioid

The MEG 14-40 is a matt-black-painted, 40 cm gooseneck microphone with one flexible section, an XLR connection and built-in Sennheiser KE10 cardioid microphone capsule.

The MEG 14-40 features a made in Germany quality gooseneck microphone on an attractive price. It features a Sennheiser KE 10 microphone capsule with cardioid directivity for universal miking. The flexible element of the streamlined 40 cm gooseneck ensures precise alignment of the microphone. Additionally the MEG 14-40-L and MEG 14-40-L-II have an integrated light ring (L: red, L-II: green) which indicates the spokesperson that is allowed to take the floor. All versions come with XLR connector, an XLR 3M for the standard version and an XLR 5M for the MEG 14-40-L and MEG 14-40-L-II which delivers power for the light ring and connects the microphone signal. Please be advised: MEG 14-40 is compatible with Tablestand MAT 133 B, MAT 133-S B and SL Tablestand 133-S DW MEG 14-40-L-II B is compatible with Tablestand MAT 153-S B and SL Tablestand 153-S DW.

Sennheiser SL RACK RECEIVER DW-4-US Rack Receiver

The half 19" stationary SL Rack Receiver DW is the easy-to-integrate core of the SpeechLine Digital Wireless System. It features a clear visible OLED display for easy setup and operation. Thanks to the bi-directional communication all settings of the mobile transmitters can be adjusted from the receiver side. The automatic frequency and interference management allows convenient and reliable operation. Thanks to the easy-to-handle pairing process, the transmitter and receiver are securely linked. Via network integration all settings and statuses are also accessible via AMX/Crestron media control protocol and the dedicated Sennheiser iOS Apps. The antennas can be either back or front-mounted.

Sennheiser GA-4 Rackmount for Evolution Wireless

The GA 4 Rackmount Set from Sennheiser is a kit for mounting the evolution wireless D1 EM stationary receiver. It features all of the accessories necessary to mount the D1 100-200 EM receiver in a standard 19" 1RU rack. Two BNC cables are also included for routing the antennas to the front.

Features:

• Sennheiser SL Tablestand 133-S DW S B Wireless Table Stand:
  • Easy wireless charging
  • Clear battery life indication via dedicated battery status LEDs
  • Compatible with all Sennheiser XLR-3 goosenecks for all speech and lecture applications
  • Can be remote controlled with Sennheiser Control Cockpit
• Sennheiser MEG 14-40 B Gooseneck Microphone with 3-Pin XLR-M - Cardioid:
  • Gooseneck with integrated Sennheiser KE10 microphone capsule
  • RF shielding against intermodulation from wireless devices
  • Streamlined design for seamless integration
  • Premium quality made in Germany
• Sennheiser SL RACK RECEIVER DW-4-US Rack Receiver:

  • Automatic frequency and interference management
  • Speech optimized automatics and sound profiles
  • Clear and easy focused user interface with OLED display
  • Ethernet connectivity (IPv4 and IPv6)
  • Media control protocol integration
  • Secure 256 bit AES encryption
  • Remote controllable
  • Quick setup pairing process
• Sennheiser GA-4 Rackmount for Evolution Wireless:

  • For Sennheiser Wireless D1 EM Receiver
  • 2x BNC Cables Included
  • Mounts Antennas on Front

Specifications:

• Sennheiser SL Tablestand 133-S DW S B Wireless Table Stand:
  • System:
  • AF Frequency Response: 20 Hz to 20 kHz
  • Dynamic Range: > 120 dB
  • THD: 0.1% at 1 kHz
  • Audio Sampling: 24-bit / 48 kHz
  • Signal to Noise Rate: > 90 dB
  • Encryption: AES 256
  • RF Frequency Range: US: 1920 to 1930 MHz
  • Modulation: GFSK with back channel
  • Transmission Method: TDMA, space diversity
  • Latency: 19 ms
  • Relative Humidity: 95% maximum
  • Operating Temperature: 14 to 131°F / -10 to 55 °C
  • Storage Temperature: -4 to 158°F / -20 to 70°C
  • Receiver:
  • RF Sensitivity: < -90 dBm
  • RF Output Channels: Adaptive, up to 250 mW (country-specific)
  • Audio Output Level: XLR Balanced: Maximum +18 dBu
  • RCA Unbalanced: Maximum +6 dBu
  • Audio Effects: Low Cut: -3 dB at 120 Hz
  • Equalizer: 7-band graphic equalizer with sound presets
  • Sound Profiles: Female voice, male voice, and media
  • Display: OLED
  • Network Protocol: Media Control Protocol, TCP/IP IPv4 (DHCP, manual)/IPv6
  • Power Supply: 12 VDC
  • Current Consumption: 350 mA
  • Connectors: 1 x XLR, 2 x RCA, 2 x reverse SMA, 1 x RJ45, 1 x power
  • Dimensions: 8.4 x 1.7 x 6.6" / 21.2 x 4.3 x 16.8 cm
  • Weight: 29 oz / 828 g
  • Power Supply:
  • Nominal Input Voltage: 100 to 240 VAC
  • Power Frequency: 50 or 60 Hz
  • Input Current: Maximum 120 mA
  • Power Consumption: Standby: ≤ 0.3 W
  • Operating Temperature: 14 to 131°F / -10 to 55°C
  • Storage Temperature: -4 to 158°F / -20 to 70°C
  • Relative Humidity: 95%
  • Dimensions: Not specified by manufacturer
  • Weight: Approx. 3.5 oz / 100 g
  • Stand:
  • AF Frequency Response: 75 Hz to 20 kHz
  • Max Input: 1.7 V RMS
  • Input Impedance: 30 kOhms
  • Power Supply: BA 40 accupack
  • Operating Time: Up to 11 hours
  • Microphone Connector: 3-pin XLR
  • Operating Temperature: 50 to 113°F / 10 to 45°C
  • Relative Humidity: 95%
  • Dimensions: 6.6 x 4.7 x 1.9" / 16.7 x 12.0 x 4.8 cm
  • Weight: 23 oz / 660 g without battery
  • Battery:
  • Model: BA 40
  • Capacity: 2200 mAh
  • Output Voltage: 3.6 V
  • Microphone:
  • Pick Up Pattern: Cardioid
  • Frequency Response: 50 Hz to 20 kHz
  • Acoustic Principle: Gooseneck microphone (condenser)
  • Output Impedance: < 100 Ohms at 1 kHz
  • Sensitivity: 15 mV/Pa
  • Maximum Sound Pressure Level (SPL): 130 dB at 1 kHz < 3%
  • Equivalent Noise Level: 37 dB (CCIR), 26 dB (A)
  • Power Supply: Microphone: 12 to 48 V phantom power
  • Current Consumption: 3 mA
  • Connector: 3-pin XLR
  • Operating Temperature: 32 to 104°F / 0 to 40°C
  • Storage Temperature: -13 to 158°F / -25 to 70°C
  • Length: 17.7" / 45.0 cm
  • Packaging Info:
  • Package Weight: 7.65 lb
  • Box Dimensions (LxWxH): 16 x 13.7 x 3"
• Sennheiser MEG 14-40 B Gooseneck Microphone with 3-Pin XLR-M - Cardioid:
  • Microphone connector: XLR 3M
  • Impedance: < 100 Ω
  • Length: 450 mm (17,72")
  • Frequency response (Microphone): 50 Hz - 20 kHz
  • Transducer principle (Microphone): pre polarised condenser microphone
  • Weight: 147 g (4,72 oz)
  • Pick-up pattern: cardioid
  • Operating temperature: 0 ... +40 °C
  • Equivalent noise level: 26 dB (A)
  • Equivalent noise level weighted as per CCIR: 37 dB
  • Maximum sound pressure level (passive): 130 dB SPL
  • Power supply: P12 - P48 V
  • Current consumption: 3 mA
  • Color: Black
• Sennheiser SL RACK RECEIVER DW-4-US Rack Receiver:

  • Frequency response: 20 to 20,000 Hz
  • Power supply: Power supply
  • Weight: approx. 828 g
  • Power consumption: 350 mA
  • Signal-to-noise ratio: > 90 dB(A)
  • Dynamic range: > 120 dB(A)
• Sennheiser GA-4 Rackmount for Evolution Wireless:

  • Package Weight: 2.27 lb
  • Box Dimensions (LxWxH): 9.85 x 8.4 x 1.85"
