Sennheiser SL Handheld SET DW-4-US R Vocal Set

The sleek but robust SL Handheld DW is optimized for speech in presentations or lectures where every word matters.

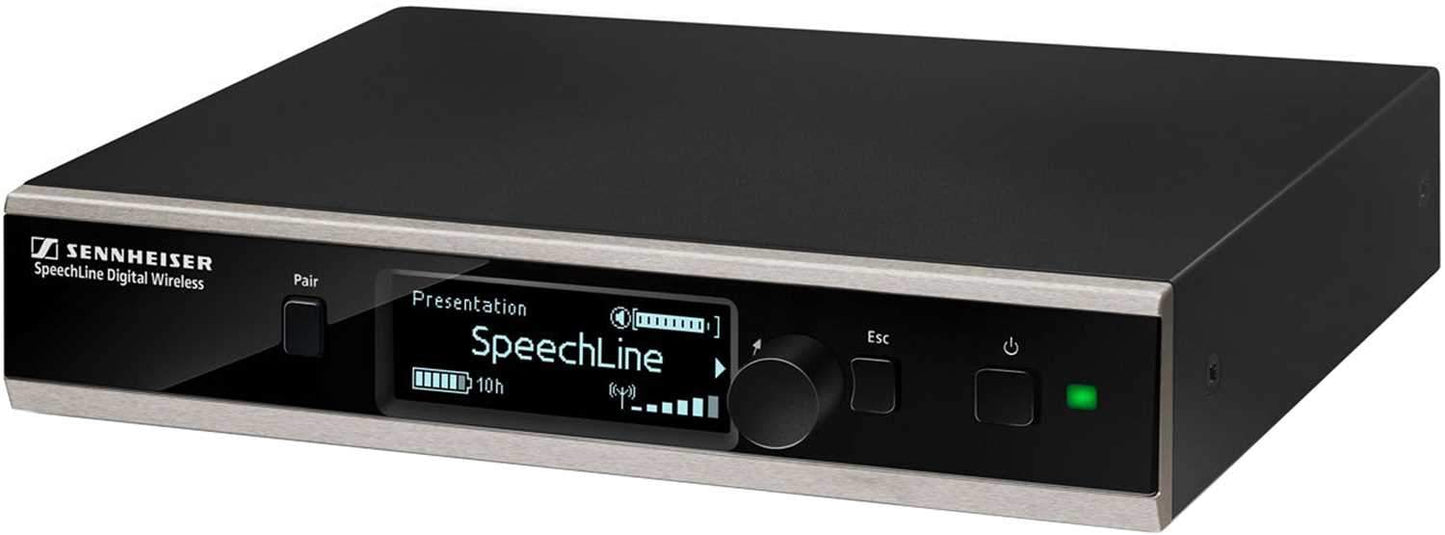

The SL Handheld Set includes the handheld transmitter, stationary receiver and everything to use or install. It comes wiht the MME 865 condensor capsule – so not just a capsule, but the best capsule for speech.

All sets also come with rechargeable accupacks with up to 15 hrs of operating time. The accupack is also USB rechargeable, the cable is in the box, the USB socket is presumably just a step away from you.

The two types of sets are either Rackmount Sets (-R version), which come with everything needed for rack mounting, or Case Sets (-C version), in a transport case – without rackmounts, if you do not want to install the receiver.

What's in the box

• SL Handheld DW
• MME 865 capsule
• BA 10 rechargable battery
• GA 4 Rackmount Kit and Pouch

Features:

• Automatic frequency and interference management
• Speech optimized condenser microphone capsule
• Clear and easy focused user interface
• Long operation time (up to 15 hours)
• Advanced power management and Li-Ion rechargeables
• Secure 256 bit AES encryption
• Remote controllable

Specifications:

• Frequency response: 20 to 20,000 Hz
• Sound pressure level (SPL): 152 dB
• THD, total harmonic distortion: typ. 0.1 %
• Transducer principle: Condenser
• Power consumption: 350 mA
• Signal-to-noise ratio: > 90 dB(A)
• RF output power: adaptive, up to 250 mW (country-specific)
• Operating time: Accupack: typ. 15 h
• Operating time: Batteries: typ. 10 h
• Power supply: 12 V DC
• Antenna connector: 2 x reverse SMA
• Audio output level (balanced): max. -18 dBu, typ. -24 dBu
• Audio output level (unbalanced): max. +6 dBu
• Dynamic range: > 120 dB(A)
• Frequency range: Eu: 1,880 to 1,900 MHz
• Frequency range: Usa: 1,920 to 1,930 MHz
• Frequency range: Brazil: 1,910 to 1,920 MHz
• Frequency range: Taiwan: 1,880 to 1,895 MHz
• Frequency range: Japan: 1,893 to 1,906 MHz
• Sensitivity: 1,6 mV/Pa
• Sampling rates: 24 bit/48 kHz
• Connection
• Audio out: XLR 3M
• Audio out: 2x RCA
• Connection: Network: RJ 45
