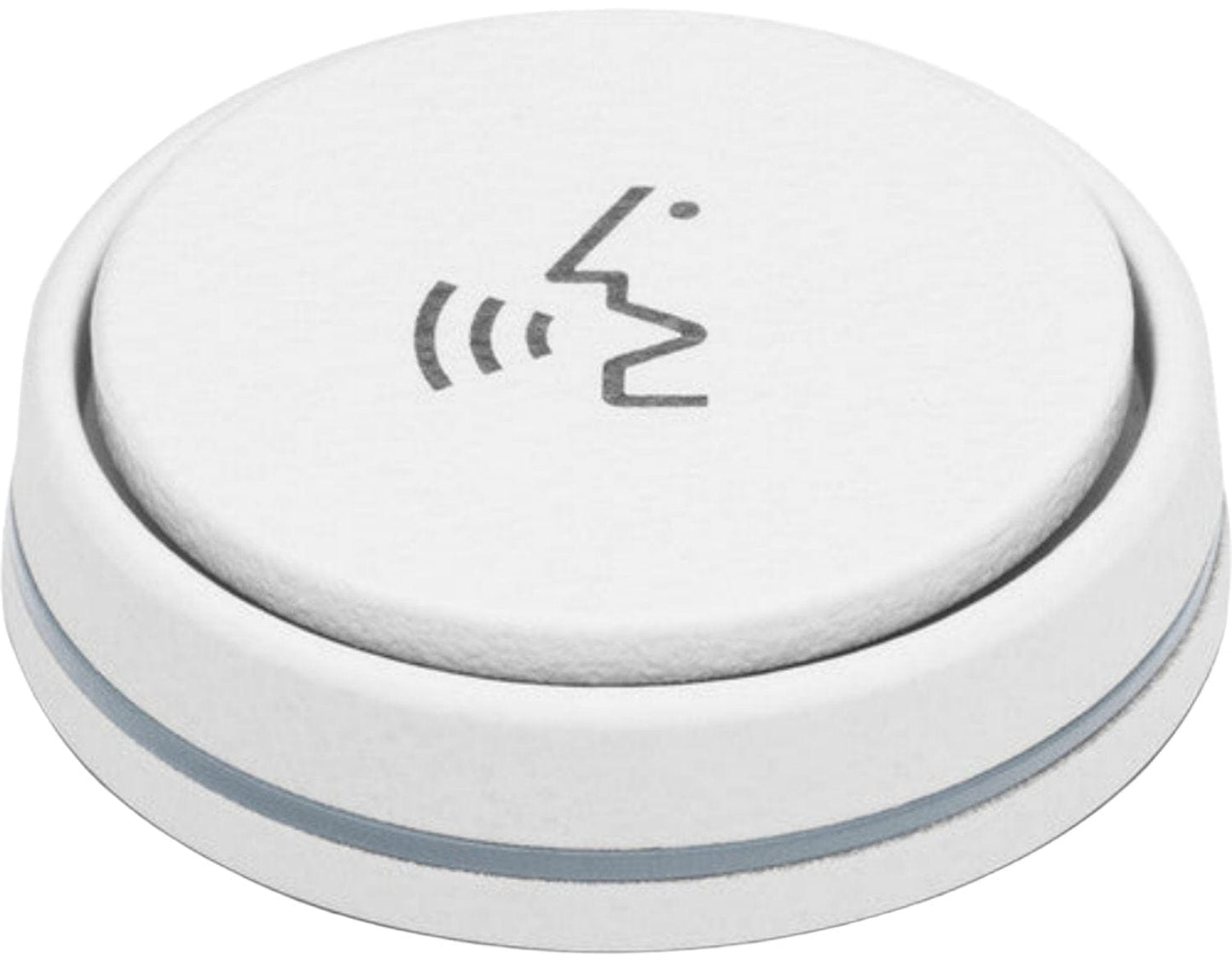

Sennheiser MAS 1 W Microphone Activation Button
Robust microphone button with understated design and intuitive pictograms. Together with the MAS 133 inline switch box, this can be used to control any microphone connected via XLR with switchable activation modes (PTT, PTM, Toggle on/off, Permanent on). The two-color status indicator adds even more user-friendliness.
Features:
- Rugged microphone button
- Unobtrusive and timeless design
- Bi-color status indication
- Made in Germany
Specifications:
- Dimensions (HxWxD): 1.7" x 5.9" x 1.7"
- Connector:
- Mic in: XLR-3F
- Mic out: XLR-3M Pin assignment: 1 = Ground, 2 = Positive (+), 3 = Negative (-)
- Switch in: XLR-5F Pin assignment: 1 = Ground, 2 = Switch, 3 = LED Red (-), 4 = LED Green (-), 5 = LEDs + 12 V out
- Weight: 7.47oz
- Operating temperature: 14°F to 122°F
- Current consumption: 4.5mA
- Output voltage:
- High level: output voltage > 2.4V
- Low level: output voltage < 0.4V
- Dimensions (HxWxD): 1.7" x 5.9" x 1.7"
- Connector:
- Mic in: XLR-3F
- Mic out: XLR-3M Pin assignment: 1 = Ground, 2 = Positive (+), 3 = Negative (-)
- Switch in: XLR-5F Pin assignment: 1 = Ground, 2 = Switch, 3 = LED Red (-), 4 = LED Green (-), 5 = LEDs + 12 V out
- Weight: 7.47oz
- Operating temperature: 14°F to 122°F
- Current consumption: 4.5mA
- Output voltage:
- High level: output voltage > 2.4V
- Low level: output voltage < 0.4V
