Description

Sennheiser ew IEM G4 Wireless Stereo IEM Set A

Engineered for professional live sound: Rugged all-in-one wireless monitoring system for in-ear applications.

Full control over your performance – your direct link, everywhere, everyday. The G4 In-Ear Monitoring Sets make your gig an extraordinary experience – not just for your audience, but also for you. Robust bodypack receiver and reliable in-ear monitoring IE 4 headphones delivering clarity along the whole frequency spectrum for daily use on stage.

What's in the box
  • SR IEM G4 stereo transmitter
  • EK IEM G4 stereo receiver
  • IE 4 earphones
  • 2 AA batteries
  • rod antenna
  • GA 3 rackmount set
  • quick guide
  • safety guide
  • manufacturer declaration sheet
  • power supply

Features:

  • Engineered for professional live sound: Rugged all-in-one wireless monitoring system for in-ear applications.
  • Robust bodypack receiver and reliable in-ear monitoring IE 4 headphones delivering clarity along the whole frequency spectrum for daily use on stage
  • Half-rack stereo transmitter in a full-metal housing with OLED display for full control
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Compatible with Sennheiser WSM control software for flexible frequency allocation
  • Up to 16 compatible channels
  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
  • Transmission Range: up to 100 meters / 300 feet
  • High RF output power (up to 50 mW) depending on country regulations

Specifications:

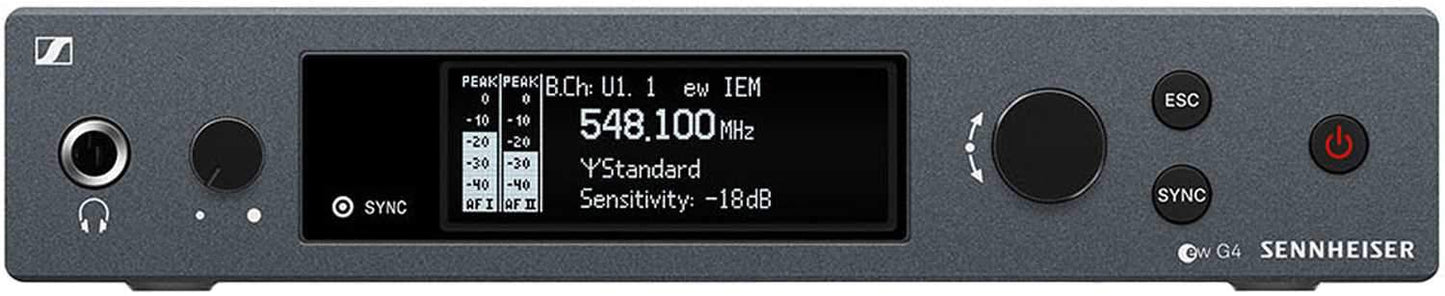

    SR IEM G4

  • Frequency range: 516 - 558 MHz
  • Dimensions: Approx. 202 x 212 x 43 mm
  • Compander Sennheiser: HDX
  • THD, total harmonic distortion <0.9 %
  • Weight: Approx. 980 g
  • Audio input: 2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced
  • Audio output: ¼" (6.3 mm) stereo jack socket, balanced
  • Signal-to-noise: ratio >90 dB
  • RF output power: switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
  • Switching bandwidth: up to 42 MHz
  • Peak deviation: ±48 kHz
  • Nominal deviation ±24 kHz
  • Modulation: Wideband FM stereo (MPX pilot tone)
  • Power supply: 12 V DC
  • Current consumption: max. 350 mA
  • Max. Input voltage: +22 dBu
  • Transmission frequency: Max. 1680 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels
  • AF frequency response: 25 Hz to 15 kHz
  • Temperature Range: -10 °C to +55 °C
  • Frequency stability: ±10 ppm
  • Antenna Output: BNC socket, 50 ?
  • EK IEM G4

  • Dimensions: Approx. 82 x 64 x 24 mm
  • Compander: Sennheiser HDX
  • THD, total harmonic distortion: ? 0.9 %
  • Weight: (incl. batteries) approx. 125 g
  • Signal-to-noise ratio: approx. 90 dBA
  • Switching bandwidth: up to 42 MHz
  • Peak deviation: ±48 kHz
  • Nominal deviation: ±24 kHz
  • Operating time: approx. 4 to 6 hours (depending on volume level)
  • Modulation: Wideband FM
  • Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
  • Current consumption: at nominal voltage: approx. 140 mA with transmitter switched off: ? 25 µA
  • Adjacent channel rejection: Typically ? 65 dB
  • Audio-Output-Power: 2 x 100 mW at 32 ?
  • Intermodulation attenuation: Typically ? 70 dB
  • Limiter: –18 dB to –6 dB, adjustable in steps of 6 dB, can be switched off
  • Powering: 3 V battery / 2.4 V rechargeable battery
  • Receiving frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels
  • RF sensitivity: < 4 ?V, typ. 1.6 ?V for 52 dBA rms S/N
  • Squelch: 5 to 25 dBµV, adjustable in steps of 2 dB
  • Bass Boost: +8 dB at 80 kHz
  • Temperature Range: -10 °C to +55 °C
  • Receiver Principle: Adaptive diversity
  • Blocking: ? 80 dB
