Name: Sennheiser ew 500 FILM G4 Evolution Wireless Portable Combo Mic Set
Brand: Sennheiser
SKU: EW500-FILM-G4-GW1

Description

Sennheiser ew 500 FILM G4 Portable Combo Set GW1

Highly versatile solution for professional film sound: Rugged all-in-one wireless system for professional interviews and recording

The professional‘s choice for broadcast quality sound. Providing the highest flexibility for your video sound and field recording applications. A robust wireless microphone system that offers ultimate sound quality, simple mounting and ease of use. Covers all sorts of applications on the set: The 48V phantom-power equipped SKP 500 turns all wired mics into a wireless transmitter, the MKE 2 Gold is a state-of-the-art professional clip-on microphone offering the highest speech intelligibility.

What's in the box:

EK 500 G4 camera receiver

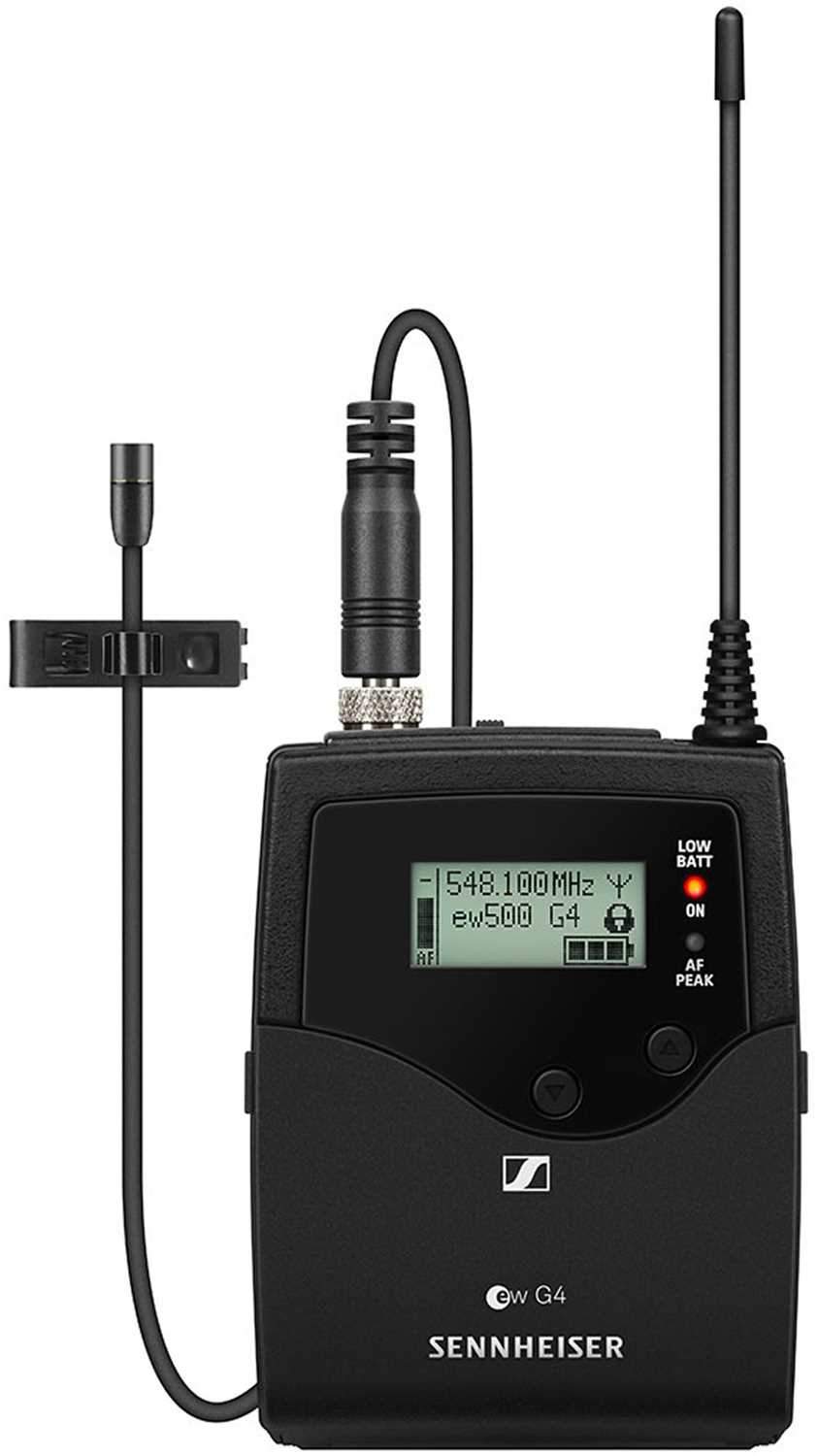

SK 500 G4 bodypack transmitter
SKP 500 G4 pro plug-on transmitter
MKE 2 clip-on microphone
4 AA batteries
CL 1 3.5 mm jack cable
CL 500 XLR to 3.5 mm jack adapter cable
CA 2 camera adapter
fur windscreen for MKE 2
quick guide
safety guide
manufacturer declaration sheet

Features:

Highly versatile solution for professional film sound: Rugged all-in-one wireless system for professional interviews and recording
Professional sound and excellent construction quality
Easy to use and fast setup time
Easy and flexible wireless synchronisation between transmitter and receiver via infrared
Up to 88 MHz bandwidth, up to 32 channels
Range: up to 100 meters / 330 feet
Increased RF output power (10/30/50 mW)
Up to 8 hours of operation time
With 48 V phantom powering

Specifications:

EK 500 G4

Frequency range: 558 - 608 MHz
Dimensions: Approx. 82 x 64 x 24 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: ? 0.9 %
Weight: (incl. batteries) approx. 130 g
Audio output: 3.5 mm jack socket: +17 dBu (mono, balanced)
Signal-to-noise ratio: Line: ? 110 dBA Phones: approx. 90 dBA
Switching bandwidth: up to 88 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Operating time: Typically 8 h
Modulation: Wideband FM
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption: at nominal voltage: typ. 140 mA with receiver switched off: ? 25 µA
Adjacent channel rejection: Typically ? 65 dB
Intermodulation attenuation: Typically ? 65 dB
Powering: 3 V battery / 2.4 V rechargeable battery
Receiving frequency: Max. 3520 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels
RF sensitivity: < 1.6 ?V for 52 dBA eff S/N
Squelch: low: 5 dBµV middle: 15 dBµV high: 25 dB?V
Temperature Range: -10 °C to +55 °C
Receiver Principle: Adaptive diversity
Blocking: ? 70 dB

SK 500 G4

Dimensions: Approx. 82 x 64 x 24 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: ? 0.9 %
Weight: (incl. batteries) approx. 160 g
Signal-to-noise ratio: ? 115 dBA
RF output power: switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
Switching bandwidth: up to 88 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Operating time: Typically 8 h
Modulation: Wideband FM
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: ? 25 µA
Input impedance: 40 k?, unbalanced / 1 M?
Max. Input voltage: 3 Veff
Powering: 3 V battery / 2.4 V rechargeable battery
Transmission frequency: Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
AF frequency response: Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz
Temperature Range: -10 °C to +55 °C
Frequency stability: ? ±15 ppm

SKP 500 G4

Dimensions: Approx. 105 x 43 x 43 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: ? 0.9 %
Weight: (incl. batteries) approx. 195 g
Signal-to-noise ratio: ? 120 dBA
RF output power: switchable: Low: typ. 10 mW Standard: typ. 30 mW High: typ. 50 mW
Switching bandwidth: up to 88 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Operating time: Typically 8 h
Modulation: Wideband FM
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption: at nominal voltage: typ. 210 mA with transmitter switched off: ? 25 µA
Input impedance: 68 k?, unbalanced
Max. Input voltage: 6 Veff
Powering: 3 V battery / 2.4 V rechargeable battery
Transmission frequency: Max. 3520 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels
AF frequency response: 80 – 18,000 Hz
Temperature Range: -10 °C to +55 °C
Frequency stability: ? ±15 ppm
