Sennheiser EK 500 G4 Portable Camera Receiver GW1
Professional sound and excellent construction quality
Powerful black camera receiver with increased bandwidth and transmission power for evolution wireless G4 500P Series systems. For professional film productions, easily mounted on any kind of camera.
What's in the box?- EK 500 G4 camera receiver
- 2 AA batteries

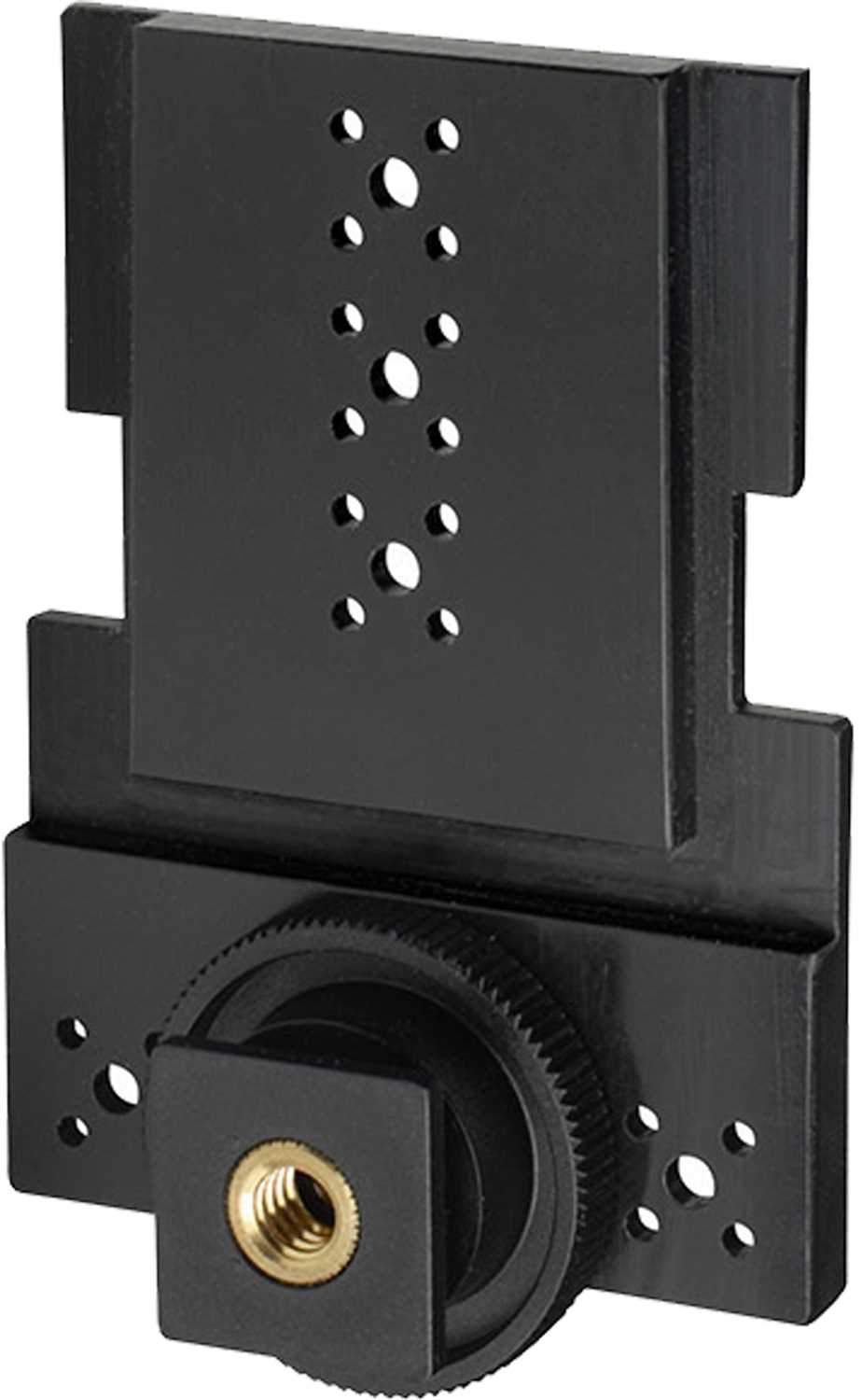

- CA 2 camera adapter
- CL 1 3.5 mm jack cable
- CL 500 XLR to 3.5 mm jack adapter cable
- quick guide
- safety guide
- manufacturer declaration sheet
Features:
- Professional sound and excellent construction quality
- Easy to use and fast setup time
- Easy and flexible wireless synchronisation between transmitter and receiver via infrared
- Up to 88 MHz bandwidth, up to 32 channels
- Range: up to 100 meters / 330 feet
- Increased RF output power (10/30/50 mW)
- Up to 8 hours of operation time
Specifications:
- Frequency range: 558 - 608 MHz
- Dimensions: Approx. 82 x 64 x 24 mm
- Compander: Sennheiser HDX
- THD, total harmonic distortion: ? 0.9 %
- Weight: (incl. batteries) approx. 130 g
- Audio output: 3.5 mm jack socket: +17 dBu (mono, balanced)
- Signal-to-noise ratio: Line: ? 110 dBA, Phones: approx. 90 dBA
- Switching bandwidth: up to 88 MHz
- Peak deviation: ±48 kHz
- Nominal deviation: ±24 kHz
- Operating time: Typically 8 h
- Modulation Wideband: FM
- Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
- Current consumption at nominal voltage: typ. 140 mA with receiver switched off: ? 25 µA
- Adjacent channel rejection: Typically ? 65 dB
- Intermodulation attenuation: Typically ? 65 dB
- Powering: 3 V battery / 2.4 V rechargeable battery
- Receiving frequency: Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
- RF sensitivity: < 1.6 ?V for 52 dBA eff S/N
- Squelch low: 5 dBµV, middle: 15 dBµV, high: 25 dB?V
- Temperature Range: -10 °C to +55 °C
- Receiver Principle: Adaptive diversity
- Blocking: ? 70 dB
