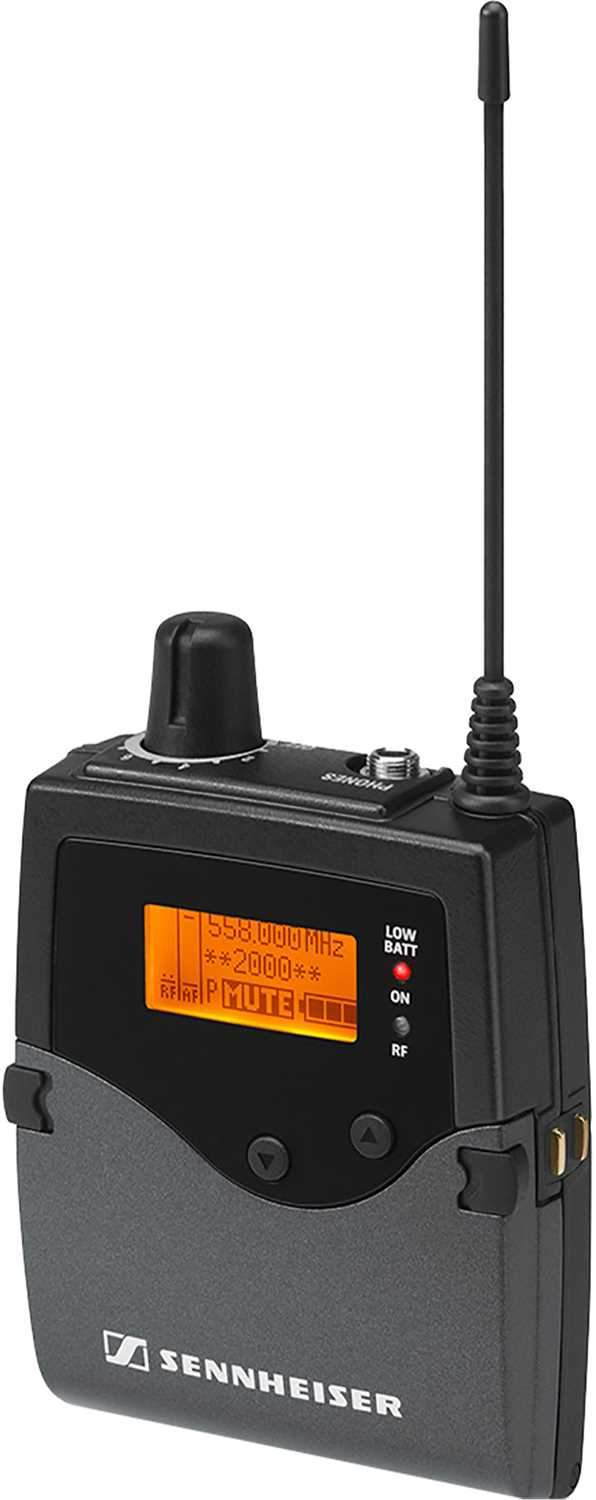

Sennheiser EK-2000-IEM-GW1 Bodypack Receiver GW1
Wireless monitoring set receiver with adaptive diversity technology. Combined with IE 4 ear-canal phones it conveys an authentic acoustic pattern of live sound and allows you to monitor your own performance perfectly.
This wireless monitoring set's receiver uses adaptive-diversity technology. The earphone cable serves as a second antenna, which considerably reduces the number of drop-outs. Combined with IE 4 ear-canal phones for precise sound reproduction, EK 2000 IEM conveys an authentic acoustic pattern of live sound and allows you to monitor your own performance perfectly.
What's in the box:
- 1 EK 2000 IEM diversity receiver
- 1 IE 4 earphones
- 1 instruction manual
- 1 supplementary frequency sheet
Features:
- Sturdy all-metal housing
- Up to 3000 frequencies in up to 75 MHz switching bandwidth
- 20 fixed frequency banks with up to 32 compatible presets
- 6 banks with up to 32 tunable channels
- Adaptive-diversity technology for high reliability
- Pilot tone squelch can be set in 2 dB steps for interference-free reception
- Frequency scan feature searches for available reception frequencies
- Wireless synchronization of receiver parameters from transmitter
- User-friendly menu interface with a backlit graphic display
- HDX compander for crystal clear sound
- Enhanced AF frequency response
- Backlit graphic display
- 4-stage battery status display
- Charging contacts for recharging BA2015
- Auto-lock feature to prevent settings from being changed accidentally
- Hi Boost, adjustable limiter, stereo/focus mode, selectable balance on receiver
- Wide range of accessories for virtually any use
Specifications:
- Frequency Band: Gw: 558 - 626MHz
- Dimensions: 82 x 64 x 24 mm
- Presets: max. 32
- Frequency response: 25 - 15000 Hz
- Jack plug: 3,5 mm Jack
- Weight: 200 g
- Signal-to-noise ratio: > 90 dB(A)
- RF frequency range: 516 ... 865 MHz
- Switching bandwidth: max. 75 MHz
- Operating time: 4 - 6 h
- Modulation: FM, MPX-stereo
- Carrier frequencies: max. 3000
- Squelch threshold: off, 5 ... 25 dB?V in 2 dB steps
- Audio-Output-Power: 100 mW @32 ?
- Operating voltage (stand alone): 2 x 1,5V AA
- Frequency range: 516 ... 558 MHz / US
- Frequency Band: Gw: 558 - 626MHz
- Dimensions: 82 x 64 x 24 mm
- Presets: max. 32
- Frequency response: 25 - 15000 Hz
- Jack plug: 3,5 mm Jack
- Weight: 200 g
- Signal-to-noise ratio: > 90 dB(A)
- RF frequency range: 516 ... 865 MHz
- Switching bandwidth: max. 75 MHz
- Operating time: 4 - 6 h
- Modulation: FM, MPX-stereo
- Carrier frequencies: max. 3000
- Squelch threshold: off, 5 ... 25 dB?V in 2 dB steps
- Audio-Output-Power: 100 mW @32 ?
- Operating voltage (stand alone): 2 x 1,5V AA
- Frequency range: 516 ... 558 MHz / US
