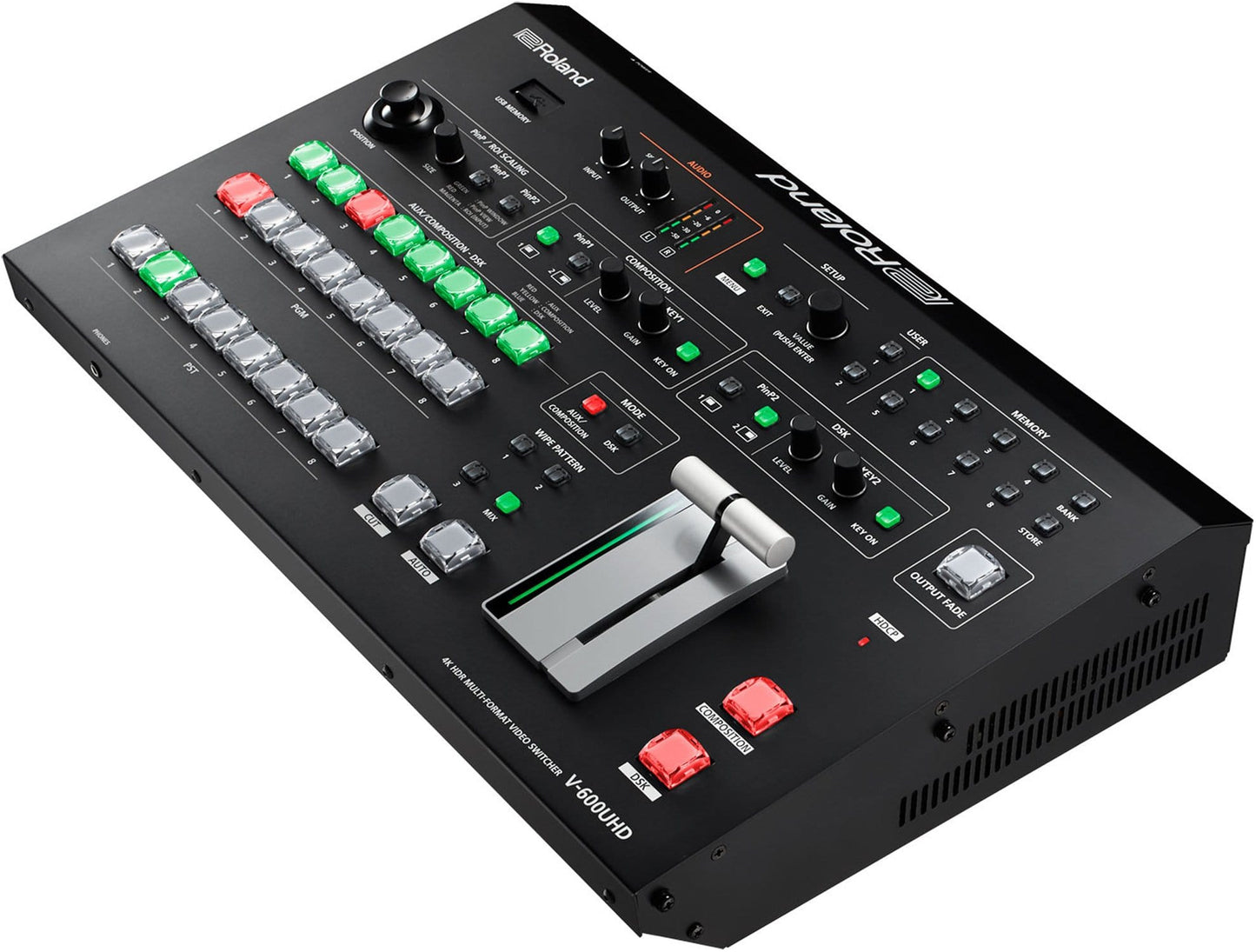

Roland V-600UHD 8-Channel 4K UHD Video Switcher
As clients and audiences start demanding 4K at events, your current HD sources and displays shouldn’t become obsolete—and the V-600UHD lets you transition to 4K workflows as demand and budgets allow. With Roland’s Ultra Scaler technology, scaling is provided on every input, so you can use Full HD and 4K sources simultaneously, and output at multiple resolutions. You can also leverage the high pixel density of 4K camera sources in Full HD workflows for problem-free, visually-impressive productions.
Features:
-
High Dynamic Range [HDR] - The V-600UHD uses High Dynamic Range [HDR] so your events look amazing. You don’t just see more pixels, you see better, more dynamic-looking pixels that preserve the details in the darkest and brightest areas of an image. HDR provides well-balanced stage lighting without oversaturation for IMAG (and it’s easier to achieve compared with using SDR.) And SDR dynamic range signals can also be input and switched with the V-600UHD.
-
Full 60Hz Frame Rate - With full 60Hz framerate support, the V-600UHD delivers a smooth, crisp video image without the blur that’s common when fast motion is displayed at 30Hz refresh rates.
-
A More Vivid Color Space - The V-600UHD supports Rec.2020, the highest-specification Wide Color Gamut (WCG), as well as RGB and Rec.709 standards to display the widest range of visible colors. This provides an increased level of realism and improved color accuracy, especially for red and yellow color ranges.
-
10-bit 4:4:4 Pixel-accurate Color - Internal 10-bit Color Depth processing reduces color banding and sharpens high-detail sources from computers. This makes it easier to read small fonts and other fine details, even when drastically scaled and magnified.
-
Support for DCI Cinema 4K Resolution - Not all 4K content has the same aspect ratio. Although 4K content is always 2160 pixels high, DCI or “Cinema 4K” is 4096 pixels wide, which is 256 pixels wider than UHD. The V-600UHD lets you switch and display content at the originally intended aspect ratio, without cropping or letter boxing.
Specifications:
-
Processing
- Video Processing
- 4:4:4 (Y/Pb/Pr), 10-bit
- Supported Video Input Formats
- HDMI (Video, CEA-861-F): 720/50p, 720/59.94p
- HDMI (Video, CEA-861-F): 1080/50i, 1080/59.94i
- HDMI (Video, CEA-861-F): 1080/50p, 1080/59.94p
- HDMI (Video, CEA-861-F): 2160/50p (UHD 4K), 2160/59.94p (UHD 4K)
- HDMI (Video, CEA-861-F): 2160/50p (DCI 4K), 2160/59.94p (DCI 4K)
- HDMI (PC, VESA DMT): 1024 x 768/60Hz (XGA)
- HDMI (PC, VESA CVT): 1280 x 768/60Hz (WXGA)
- HDMI (PC, VESA DMT): 1280 x 1024/60Hz (SXGA)
- HDMI (PC, VESA CVT): 1400 x 1050/60Hz (SXGA+)
- HDMI (PC, VESA DMT): 1600 x 1200/60 Hz (UXGA)
- HDMI (PC, CEA-861-F): 1920 x 1080/30 Hz (FHD), 1920 x 1080/60 Hz (FHD)
- HDMI (PC, VESA CVT): 1920 x 1200/60 Hz (WUXGA, Reduced blanking)
- HDMI (PC, CEA-861-F): 3840 x 2160/24 Hz (UHD 4K), 3840 x 2160/30 Hz (UHD 4K), 3840 x 2160/60 Hz (UHD 4K)
- HDMI (PC, CEA-861-F): 4096 x 2160/24 Hz (DCI 4K), 4096 x 2160/30 Hz (DCI 4K), 4096 x 2160/60 Hz (DCI 4K)
- RGB (PC, VESA DMT): 1600 x 1200/60Hz (UXGA)
- RGB (PC, CEA-861-F): 1920 x 1080/60Hz (FHD)
- SDI (Video, SMPTE ST274): 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
- SDI (Video, SMPTE ST2036): 2160/59.94p (UHD 4K), 2160/50p (UHD 4K)
- SDI (Video, SMPTE ST2048): 2160/59.94p (DCI 4K), 2160/50p (DCI 4K)
- Still Image: Windows Bitmap File (.bmp), Maximum 4096 x 2160 pixels, 24-bit per pixel, uncompressed
- Still Image: PNG File (.png), Maximum 4096 x 2160
- Supported Video Output Formats
- HDMI (Video, CEA-861-F): 1080/50p, 1080/59.94p
- HDMI (Video, CEA-861-F): 2160/50p (UHD 4K), 2160/59.94p (UHD 4K)
- HDMI (Video, CEA-861-F): 2160/50p (DCI 4K), 2160/59.94p (DCI 4K)
- HDMI (PC, CEA-861-F): 1920 x 1080/30Hz (FHD) (*2), 1920 x 1080/60Hz (FHD)
- HDMI (PC, CEA-861-F): 3840 x 2160/30Hz (UHD 4K), 3840 x 2160/60Hz (UHD 4K)
- HDMI (PC, CEA-861-F): 4096 x 2160/30Hz (DCI 4K), 4096 x 2160/60Hz (DCI 4K)
- *2 Available when Down Convert of HDMI OUT 1-3 is set to "Enabled".
- SDI (Video, SMPTE ST274):1080/59.94p, 1080/50p
- SDI (Video, SMPTE ST2036):2160/59.94p (UHD 4K), 2160/50p (UHD 4K)
- SDI (Video, SMPTE ST2048):2160/59.94p (DCI 4K), 2160/50p (DCI 4K)
- * Conforms to VESA DMT, VESA CVT, CEA-861-F
- * Color Gamut: Rec.709, Rec.2020
- * Dynamic Range: SDR, HDR PQ (HDR10), HDR HLG
- Video Effects
- Transition: Mix, Cut, Wipe (9 patterns)
- Composition: PinP, Key (*1), PinP + Key (*1)
- DSK: PinP, Key (*1), PinP + Key (*1)
- Others: Output Fade, Output Freeze, Output Capture
- *1 Luminance Key, Chroma Key
- Audio Processing
- 24 bits/48 kHz
- Audio formats
- SDI IN/OUT: Linear PCM, 24 bits/48 kHz, 16 ch (Conforms to SMPTE 299M)
- HDMI IN/OUT: Linear PCM, 24 bits/48 kHz, 2 ch
- Audio Effects
- Matrix mixer
- Delay (1 ms units, max 500 ms)
- Test tone output
-
Connectors
- Input Connectors
- HDMI IN 1--4 connectors: HDMI type A (HDMI 2.0)
- SDI IN 5--6 connectors: BNC type (12G/3G/HD-SDI, Conforms to SMPTE 2082, 424M (Level-A, Level-B), 292M)
- RGB IN 1 connector: HD DB-15 type (Analog RGB, Select HDMI IN 1 or RGB IN 1 using menu)
- AUDIO IN L/R connectors: XLR-3-31 type (balanced)
- Output Connectors
- SDI OUTPUT connector: BNC type (12G/3G-SDI, Conforms to SMPTE 2082, 424M (Level-A, Level-B))
- HDMI OUT 1--3 connectors: HDMI type A (HDMI 2.0)
- MULTI-VIEW connector: HDMI type A (HDMI 1.4)
- AUDIO OUT L/R connectors: XLR-3-32 type (balanced)
- PHONES jack: Stereo miniature phone type
- Other Connectors
- USB MEMORY port: USB A type (for USB flash drive)
- RS-232 connector: DB-9 type (Male) (for Remote Control)
- LAN port: RJ45 type, 100BASE-TX (for Remote Control)
- TALLY/GPI port: DB-25 type (Female) (Tally: 16, GPI: 8)
- * XLR type: 1 GND, 2 HOT, 3 COLD
-
Audio Input/Output Characteristics
- Input Level
- AUDIO IN L/R: +4 dBu (Maximum: +24 dBu)
- Input Impedance
- AUDIO IN L/R: 15 k ohms
- Output Level
- AUDIO OUT L/R: +4 dBu (Maximum: +24 dBu)
- PHONES: 92 mW + 92 mW (32 ohms)
- Output Impedance
- AUDIO OUT L/R: 600 ohms
- PHONES: 10 ohms
-
Other
- Power Consumption
- 80 W
- Dimensions
- 482 (W) x 300 (D) x 109 (H) mm
- 19 (W) x 11-13/16 (D) x 4-5/16 (H) inches
- * When rack mount angles are fitted.
- Weight
- 5.3 kg
- 11 lbs 11 oz
- * Including rack mount angles.
- Operation Temperature
- +5 to +40 degrees Celsius
- +41 to +104 degrees Fahrenheit
- Accessories
- Owner's Manual
- Power cord
- Rack-mount angle x 2
-
Processing
- Video Processing
- 4:4:4 (Y/Pb/Pr), 10-bit
- Supported Video Input Formats
- HDMI (Video, CEA-861-F): 720/50p, 720/59.94p
- HDMI (Video, CEA-861-F): 1080/50i, 1080/59.94i
- HDMI (Video, CEA-861-F): 1080/50p, 1080/59.94p
- HDMI (Video, CEA-861-F): 2160/50p (UHD 4K), 2160/59.94p (UHD 4K)
- HDMI (Video, CEA-861-F): 2160/50p (DCI 4K), 2160/59.94p (DCI 4K)
- HDMI (PC, VESA DMT): 1024 x 768/60Hz (XGA)
- HDMI (PC, VESA CVT): 1280 x 768/60Hz (WXGA)
- HDMI (PC, VESA DMT): 1280 x 1024/60Hz (SXGA)
- HDMI (PC, VESA CVT): 1400 x 1050/60Hz (SXGA+)
- HDMI (PC, VESA DMT): 1600 x 1200/60 Hz (UXGA)
- HDMI (PC, CEA-861-F): 1920 x 1080/30 Hz (FHD), 1920 x 1080/60 Hz (FHD)
- HDMI (PC, VESA CVT): 1920 x 1200/60 Hz (WUXGA, Reduced blanking)
- HDMI (PC, CEA-861-F): 3840 x 2160/24 Hz (UHD 4K), 3840 x 2160/30 Hz (UHD 4K), 3840 x 2160/60 Hz (UHD 4K)
- HDMI (PC, CEA-861-F): 4096 x 2160/24 Hz (DCI 4K), 4096 x 2160/30 Hz (DCI 4K), 4096 x 2160/60 Hz (DCI 4K)
- RGB (PC, VESA DMT): 1600 x 1200/60Hz (UXGA)
- RGB (PC, CEA-861-F): 1920 x 1080/60Hz (FHD)
- SDI (Video, SMPTE ST274): 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
- SDI (Video, SMPTE ST2036): 2160/59.94p (UHD 4K), 2160/50p (UHD 4K)
- SDI (Video, SMPTE ST2048): 2160/59.94p (DCI 4K), 2160/50p (DCI 4K)
- Still Image: Windows Bitmap File (.bmp), Maximum 4096 x 2160 pixels, 24-bit per pixel, uncompressed
- Still Image: PNG File (.png), Maximum 4096 x 2160
- Supported Video Output Formats
- HDMI (Video, CEA-861-F): 1080/50p, 1080/59.94p
- HDMI (Video, CEA-861-F): 2160/50p (UHD 4K), 2160/59.94p (UHD 4K)
- HDMI (Video, CEA-861-F): 2160/50p (DCI 4K), 2160/59.94p (DCI 4K)
- HDMI (PC, CEA-861-F): 1920 x 1080/30Hz (FHD) (*2), 1920 x 1080/60Hz (FHD)
- HDMI (PC, CEA-861-F): 3840 x 2160/30Hz (UHD 4K), 3840 x 2160/60Hz (UHD 4K)
- HDMI (PC, CEA-861-F): 4096 x 2160/30Hz (DCI 4K), 4096 x 2160/60Hz (DCI 4K)
- *2 Available when Down Convert of HDMI OUT 1-3 is set to "Enabled".
- SDI (Video, SMPTE ST274):1080/59.94p, 1080/50p
- SDI (Video, SMPTE ST2036):2160/59.94p (UHD 4K), 2160/50p (UHD 4K)
- SDI (Video, SMPTE ST2048):2160/59.94p (DCI 4K), 2160/50p (DCI 4K)
- * Conforms to VESA DMT, VESA CVT, CEA-861-F
- * Color Gamut: Rec.709, Rec.2020
- * Dynamic Range: SDR, HDR PQ (HDR10), HDR HLG
- Video Effects
- Transition: Mix, Cut, Wipe (9 patterns)
- Composition: PinP, Key (*1), PinP + Key (*1)
- DSK: PinP, Key (*1), PinP + Key (*1)
- Others: Output Fade, Output Freeze, Output Capture
- *1 Luminance Key, Chroma Key
- Audio Processing
- 24 bits/48 kHz
- Audio formats
- SDI IN/OUT: Linear PCM, 24 bits/48 kHz, 16 ch (Conforms to SMPTE 299M)
- HDMI IN/OUT: Linear PCM, 24 bits/48 kHz, 2 ch
- Audio Effects
- Matrix mixer
- Delay (1 ms units, max 500 ms)
- Test tone output
- Video Processing
-
Connectors
- Input Connectors
- HDMI IN 1--4 connectors: HDMI type A (HDMI 2.0)
- SDI IN 5--6 connectors: BNC type (12G/3G/HD-SDI, Conforms to SMPTE 2082, 424M (Level-A, Level-B), 292M)
- RGB IN 1 connector: HD DB-15 type (Analog RGB, Select HDMI IN 1 or RGB IN 1 using menu)
- AUDIO IN L/R connectors: XLR-3-31 type (balanced)
- Output Connectors
- SDI OUTPUT connector: BNC type (12G/3G-SDI, Conforms to SMPTE 2082, 424M (Level-A, Level-B))
- HDMI OUT 1--3 connectors: HDMI type A (HDMI 2.0)
- MULTI-VIEW connector: HDMI type A (HDMI 1.4)
- AUDIO OUT L/R connectors: XLR-3-32 type (balanced)
- PHONES jack: Stereo miniature phone type
- Other Connectors
- USB MEMORY port: USB A type (for USB flash drive)
- RS-232 connector: DB-9 type (Male) (for Remote Control)
- LAN port: RJ45 type, 100BASE-TX (for Remote Control)
- TALLY/GPI port: DB-25 type (Female) (Tally: 16, GPI: 8)
- * XLR type: 1 GND, 2 HOT, 3 COLD
-
Audio Input/Output Characteristics
- Input Level
- AUDIO IN L/R: +4 dBu (Maximum: +24 dBu)
- Input Impedance
- AUDIO IN L/R: 15 k ohms
- Output Level
- AUDIO OUT L/R: +4 dBu (Maximum: +24 dBu)
- PHONES: 92 mW + 92 mW (32 ohms)
- Output Impedance
- AUDIO OUT L/R: 600 ohms
- PHONES: 10 ohms
- Input Level
-
Other
- Power Consumption
- 80 W
- Dimensions
- 482 (W) x 300 (D) x 109 (H) mm
- 19 (W) x 11-13/16 (D) x 4-5/16 (H) inches
- * When rack mount angles are fitted.
- Weight
- 5.3 kg
- 11 lbs 11 oz
- * Including rack mount angles.
- Operation Temperature
- +5 to +40 degrees Celsius
- +41 to +104 degrees Fahrenheit
- Accessories
- Owner's Manual
- Power cord
- Rack-mount angle x 2
