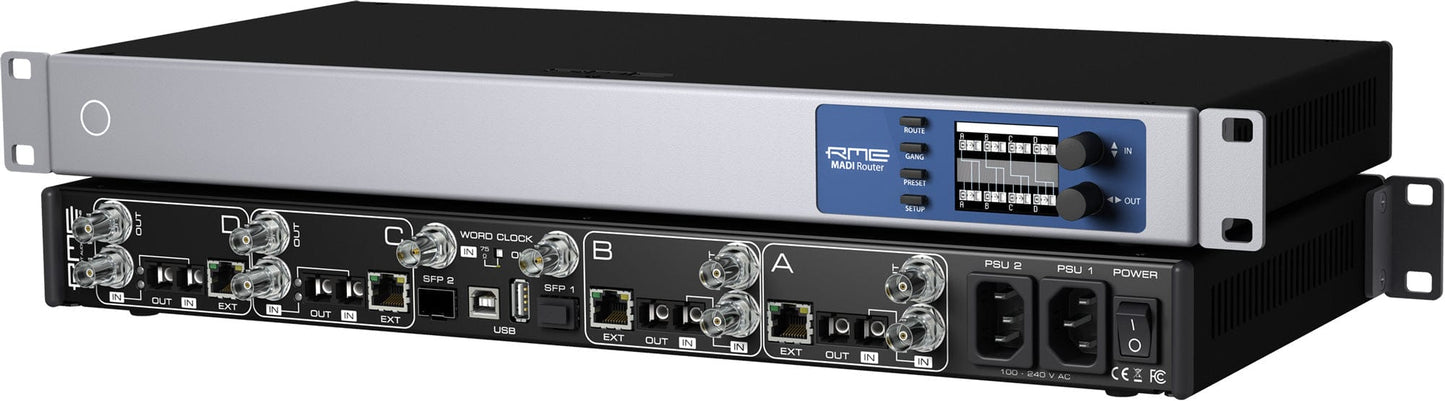

RME MADI-RT Digital Patch Bay and Format Converter

The 1RU MADI-RT 12-Channel Digital Patch Bay Router and Format Converter from RME Audio is designed to interconnect MADI devices of any manufacturer, providing flexible signal routing. It serves as a format converter between optical and electrical signals, as a signal repeater, and as a distributor and merger of several MADI signals. The MADI Router combines advantages of point-to-point audio connections, such as low latency and fast recovery time from signal line interruptions, with the flexibility of networked audio connections in which any device has access to any channel available on the network of connected devices. At the most basic level, input signals are passed on to the desired output unaltered. This type of connection is beneficial when manufacturers have embedded additional status or remote control data information in the MADI stream. It is also possible to create new arrangements of audio channels within a MADI output stream. For this purpose four independent matrices are provided, each one reflecting 768 IN x 64 OUT audio channels. Any channel of any valid MADI input stream may act as source to each crosspoint matrix. The output of each matrix can then be passed on to any of the 12 MADI Router's outputs.

Features:

• Can be programmed and controlled independently, via four buttons, two rotary encoders, and a TFT display on the front panel.
• Switch for internal termination 75 ohm
• Automatic double/quad speed detection
• SteadyClock guarantees super-low jitter synchronization
• Capacitive-coupled, galvanically isolated input
• Signal Adaptation Circuit: signal refresh through auto-center and hysteresis
• Overvoltage protection
• 15 internal presets let you save, recall, preview, and preselect routings
• Settings are automatically saved via the Autosave feature, and can be automatically recalled within ten seconds after the unit is switched back on
• Four optical and four coaxial MADI inputs accept MADI signals at any sampling rate and channel format
• The MADI signal can be carried over distances of up to 656.2' (coaxial) or 1.2 miles (optical)
• Four MADI TP ports can directly connect MADI TP devices over distances of up to 492' over twisted pair network cables and can pass on power along with the MADI signals
• The 12 MADI ports are independent but grouped in four sections 'A' to 'D' for quick identification
• The word clock input may be used as reference to any of the four routing matrices or be refreshed and passed on to the output
• Two redundant 100W switching power supplies provide sufficient power for the MADI Router plus up to eight additional passive devices that draw their power from the MADI TP connections

Specifications:

• Converter Type: Format Converter
• Number of Channels: 12
• Connectivity:
  • Analog Audio I/O: None
  • Digital Audio I/O:
    • 4 x BNC Coaxial MADI Input
    • 4 x Duplex SC-Plug Optical MADI Input
    • 4 x RJ45 MADI In/Out
  • Host Connection / USB: None
  • USB (Non-Host): 1 x USB Type-A (USB 2.0, External Storage)
  • Sync I/O:
    • 1 x BNC Word Clock Input
    • 1 x BNC Word Clock Output
  • Network I/O: None
  • MIDI I/O: None
• Performance:
  • Impedance:
    • BNC Coaxial MADI Inputs: 75 Ohms
    • BNC Coaxial MADI Outputs: 75 Ohms
    • Word Clock Inputs: 10 Kilohms
    • Word Clock Outputs: 10 Ohms
• Power:
  • AC Input Power: 100 to 240 VAC, 50 / 60 Hz
• Physical:
  • Rackmount Size: 1 RU
  • Operating Humidity: 0 to 75%
  • Operating Temperature: 41 to 122°F / 5 to 50°C
  • Dimensions: 17.3 x 9.45 x 1.73" / 44 x 24 x 4.4 cm (without Rack Ears)
  • Weight: 6.2 lb / 2.8 kg
• Packaging Info:
  • Package Weight: 10.4 lb
  • Box Dimensions (LxWxH): 22.7 x 11.6 x 3.9"
