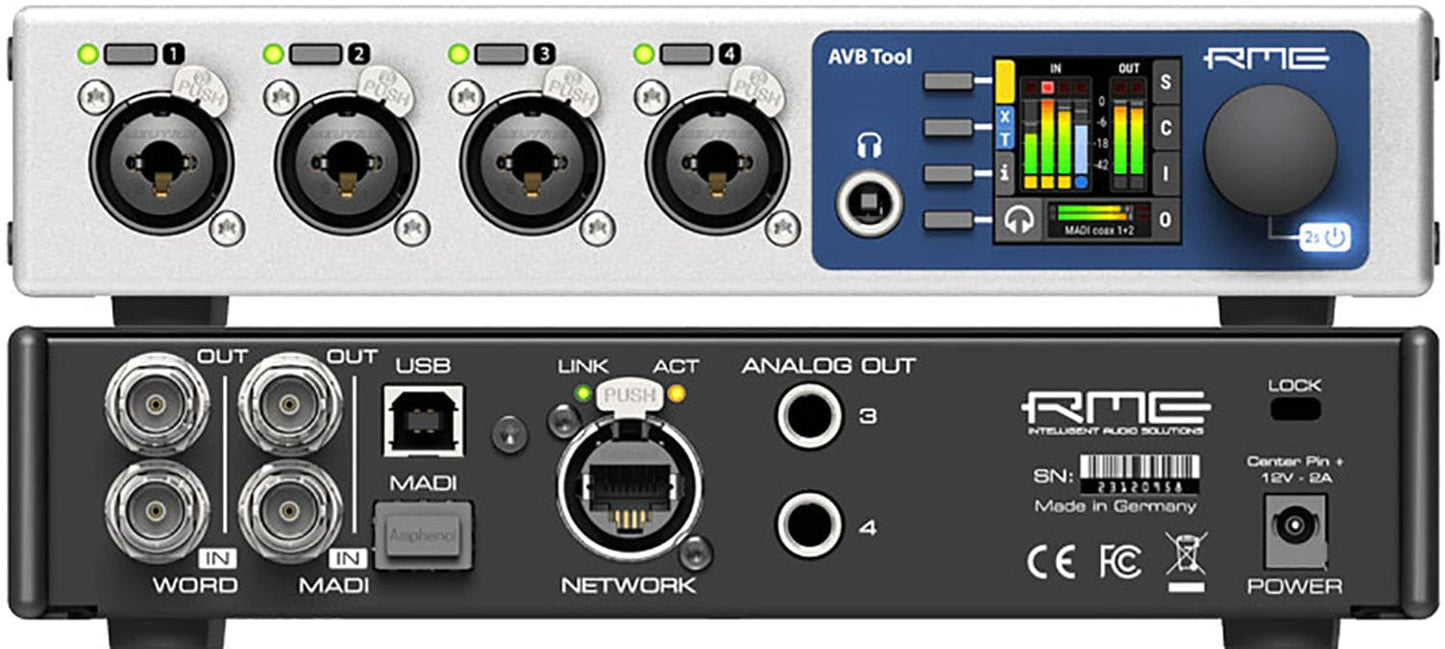

RME AVB-TOOL MADI to AVB Converter with 4 Mic/Line/Instrument Inputs
The RME AVB Tool combines MADI and deterministic AVB networked audio with four high-precision microphone, instrument and line level inputs, plus headphone and separate line level outputs. Following RME’s concept of maximum versatility and connectivity, 128 channels of MADI I/O have been also added to this half rack 19” device.
Features:
- 4 x XLR/TRS Mic/Inst/Line
- 1 x Phones Output
- 2 x Line Output
- 1 x Word Clock I/O
- 1 x MADI I/O coaxial
- 1 x MADI Optical SFP (optional)
- 1 x Gigabit Ethernet (802.3 compliant)
- SteadyClock FS
- USB for firmware & remote control
Specifications:
- Inputs:
- XLR In 1-4:
- Input: XLR, electronically balanced
- Input impedance: 3.4 kOhm
- Gain range: 75 dB, 1 dB steps
- Resolution AD: 24 bit
- Frequency response @ 44.1 kHz, -0.1 dB: 8 Hz – 20.8 kHz
- Frequency response @ 96 kHz, -0.5 dB: 4 Hz – 29.2
- Frequency response @ 192 kHz, -1 dB: 3 Hz – 43.7
- THD @ 30 dB gain: < -110 dB, < 0.00032 %
- THD+N @ 30 dB gain: < -104 dB, < 0.00063 %
- Channel separation: > 110 dB
- Signal to Noise ratio (SNR): > 117 dB RMS unweighted, > 120 dB(A)
- Equivalent Input Noise (EIN), 30 dB Gain: 123 dB RMS unweighted, 125.5 dB(A) @ 150 Ohm
- Maximum input level, Gain 0 dB: +18 dBu
- Maximum input level, Gain 75 dB: -57 dBu
- TRS In 1-4 (As above, but):
- Signal to Noise ratio (SNR): 115 dB RMS unweighted, 118 dBA
- TRS jack, balanced
- Gain range: 42 dB, 1 dB steps
- Maximum input level, Gain 8 dB: +20 dBu
- Maximum input level, Gain 50 dB: -22 dBu
- Switchable high impedance (unbalanced TS): 1 MOhm
- MADI:
- Coaxial via BNC, 75 Ohm, according to AES10-1991
- Optical via optional SFP module
- 62.5/125 and 50/125 compatible
- Accepts 56 channel and 64 channel mode, plus 96k Frame
- Single Speed: up to 64 channels 24 bit 48 kHz
- Double Speed: up to 32 channels 24 bit 96 kHz
- Quad Speed: up to 16 channels 24 bit 192 kHz
- Word Clock:
- 75 ohm Word Clock BNC connectivity
- Support 44.1kHz - 192kHz
- Support full or single speed operation
- SteadyClock FS extracts low jitter clock signal
- Intelligent Clock Control switches clock source seamlessly
- Outputs:
- Analog Out 3/4:
- Output: two 6.3 mm TRS mono (balanced) jacks
- Maximum output level at 0 dBFS: +4 dBu or +19 dBu
- Phones 1/2:
- Resolution: 24 Bit
- Noise (DR): 115 dB RMS unweighted, 118 dBA
- Frequency response @ 44.1 kHz, -0.5 dB: 9 Hz – 22 kHz
- Frequency response @ 96 kHz, -0.5 dB: 9 Hz – 45 kHz
- Frequency response @ 192 kHz, -1 dB: 8 Hz - 75 kHz
- THD+N: < -100 dB, < 0.001 %
- Channel separation: > 110 dB
- Output: 6.3 mm TRS stereo (unbalanced) or mono (balanced) jack
- Maximum output level at 0 dBFS: +13 dBu (unbalanced), +19 dBu (balanced)
- MADI:
- Coaxial via BNC, 75 Ohm, according to AES10-1991
- Optical via optional SFP module
- 62.5/125 and 50/125 compatible
- Accepts 56 channel and 64 channel mode, plus 96k Frame
- Single Speed: up to 64 channels 24 bit 48 kHz
- Double Speed: up to 32 channels 24 bit 96 kHz
- Quad Speed: up to 16 channels 24 bit 192 kHz
- Word Clock:
- 75 ohm Word Clock BNC connectivity
- Support 44.1kHz - 192kHz
- Support full or single speed operation
- SteadyClock FS extracts low jitter clock signal
- Intelligent Clock Control switches clock source seamlessly
- General:
- 1 x RJ45 1 GigE AVB, 8 streams (each up to 16 ch.) per direction
- MADI input redundancy (requires optional SFP module)
- Internal routing of up to 260x260 channels
- MADI-AVB conversion
- 1,54” full color display with control knob and four buttons for convenient, direct access to all features
- SteadyClock FS - ultra-low jitter digital clock technology
- Remote control via HTTP, JSON, IEEE 1722.1, ATDECC, MIDI over MADI
- USB 2.0 (for remote control and firmware updates)
- DC-coupled outputs
- K-slot lock port
- Hardware:
- Dimensions: 215 x 44 x 130 mm (8.5 x 1.7 x 5.1 inches)
- Weight: 1.0 kg (2.2 lbs)
- Package: 347 x 216 x 83 mm (13.7 x 8.5 x 3.3 inches)
- Conformity: CE, FCC, WEEE, RoHS
- Power supply: external 2 A 100-240 V AC
- Power consumption: typ. 13W, standby 0.5W
- Power consumption: typ. 20 W, standby 0.5W
