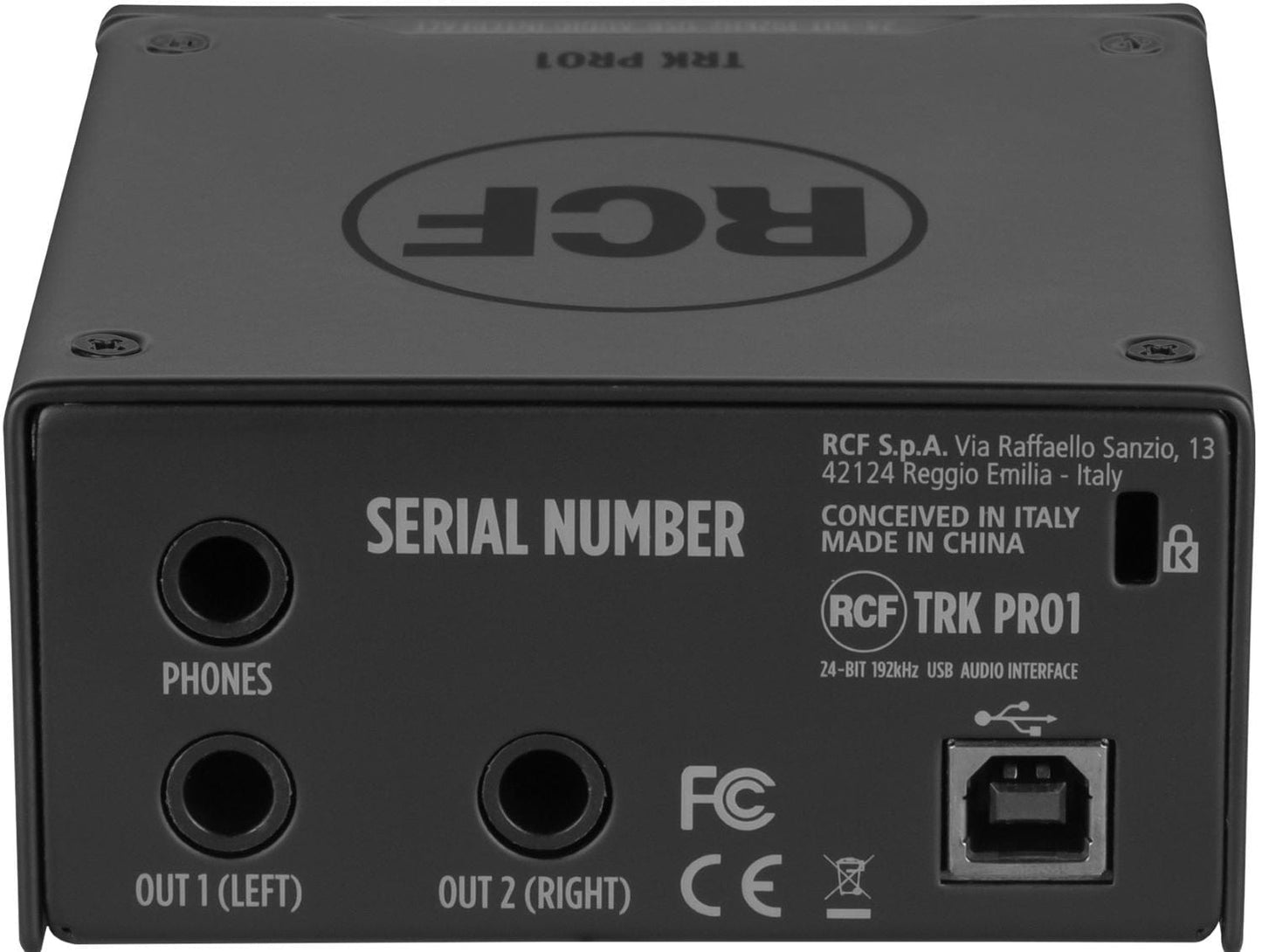

RCF TRK-PRO1 1X2 Channel USB Interface
RCF TRK PRO1 hardware interface packs a robust and well-thought USB 2.0 studio-in-a-box with all the connectivity required for microphones, musical instruments, or line-level signals to a computer running macOS or Windows. The internal linear preamp circuit allows the connection of 48V phantom-powered microphones and Hi-Z level instruments. The input signal can be routed to DAW (Digital Audio Workstation) at up to 24-bit, 192 kHz resolution. The interface can be connected to an amplifier and speakers, powered monitors, headphones, an analog mixer, or any other analog audio device.
Features:
- 1 In 2 Out USB 2.0 Bus-Powered Audio Interface
- Up to 24-Bit/192kHz
- 1 Mic and Instrument/line Combo input
- High-quality preamp
- Balanced Output
- Independent headphone volume control
- Robust Metal Case
- Perfect for RDNet Measures
- 48V Phantom Power Supply
- Independent Gain Control with Signal-Peak LED
Specifications:
- General:
- Mic Input (Balanced):
- Freq. Response: 20Hz-20kHz, +/-0.1 dB
- THD+N: <0.0011%, -1dBFS, 20Hz-20kHz
- Noise EIN: < -120dB
- Dynamic Range: 107dB (A-weighted)
- Input Impedance: 3.5KOhm
- Gain Range: -9 dB ~ +47 dB
- Maximum Input Level: +9 dBu
- Line Input (Balanced):
- Freq. Response: 20Hz-20kHz, +/-0.1dB
- THD+N <0.0011%, -1dBFS, 20Hz ~ 20kHz
- Dynamic Range 107 dB (A-weighted)
- Input Impedance: 15 kOhm
- Gain Range: -20 dB ~ +36 dB
- Maximum Input Level +20 dB
- Instrument Input (Unbalanced):
- Freq. Response: 20Hz-20kHz, +/-0.1dB
- THD+N: <0.0025%, -1dBFS, 20Hz-20k
- Input Impedance: 1MOhm
- Gain Range: -10 dB ~+46 dB
- Maximum Input Level: +10 dBu
- Dynamic Range: 107 dB (A-weighted)
- Analog Output (Balanced):
- Maximum Output Level 0dBFS=12dBu
- Freq. Response: 20 Hz~20 kHz, +/-0.2
- THD+N <0.0012%, -1dBFS, 20 Hz-20 kHz
- Dynamic range: 107 dB (A-weighted)
- Headphones Output (Unbalanced):
- Output Impedance: <10 Ohm
- Max Output Level: 500 Ohm - 114 mW
- Supported Sample Rate: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
- Supported Bit Depth: 16 Bit, 24 Bit
- Standard Compliance:
- Safety agency: CE compliant
- Physical:
- Cabinet/Case Material: Steel
- Color: Black - RAL 9005
- Size:
- Height: 46 mm / 1.81 inches
- Width: 91.4 mm / 3.6 inches
- Depth: 125.8 mm / 4.95 inches
- Weight: 0.5 kg / 1.1 lbs
- Shipping Information:
- Package Height: 80 mm / 3.15 inches
- Package Width: 162 mm / 6.38 inches
- Package Depth: 170 mm / 6.69 inches
- Package Weight: 0.6 kg / 1.32 lbs
