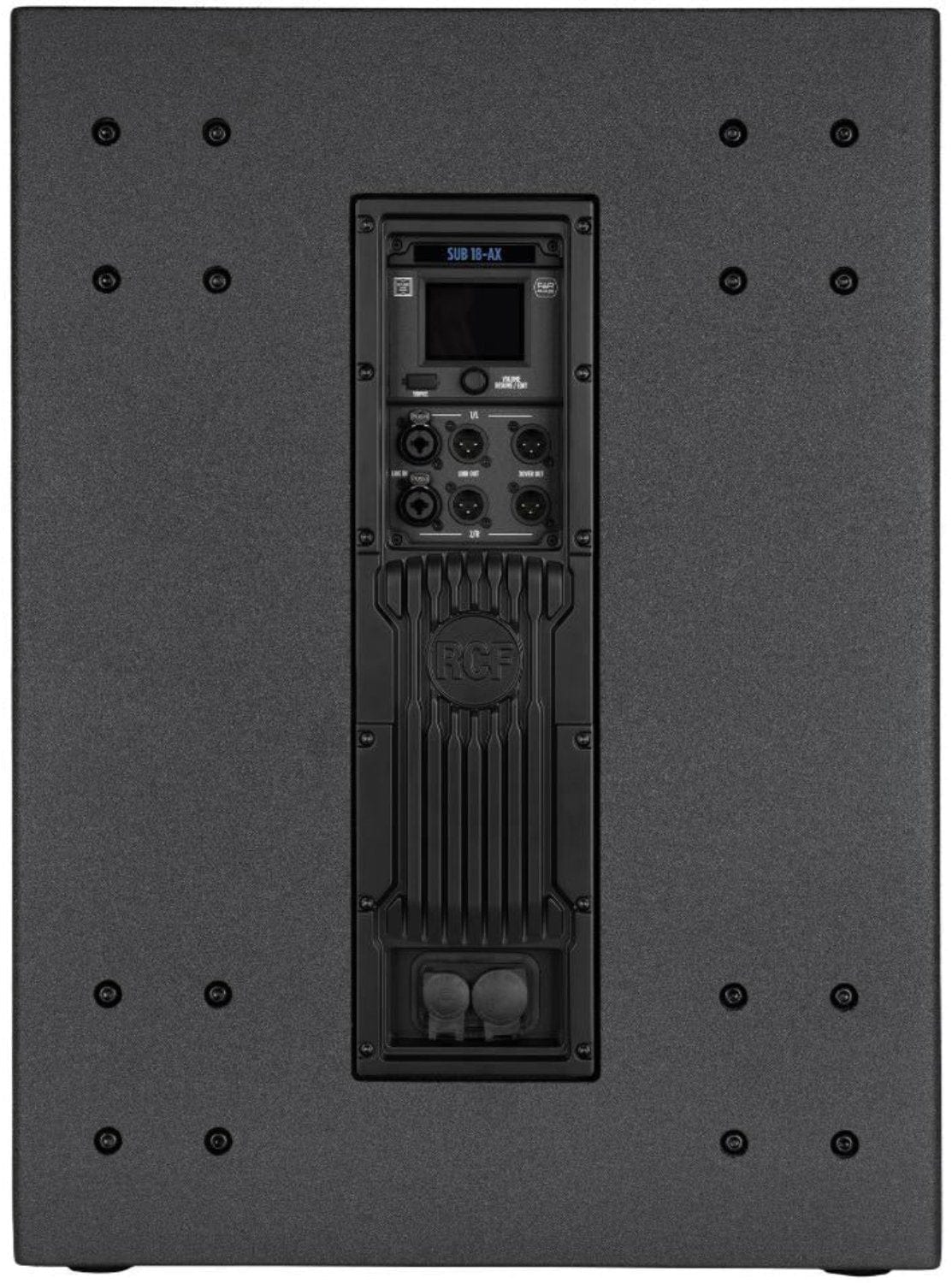

RCF SUB18-AX Active 18 Inch Powered Subwoofer with 2200 Watt Class-D Amplifier - Black

The SUB 18-AX is a portable 18" high-power active subwoofer designed for live sound applications, offering advanced processing, a color touch panel, and remote control via Bluetooth®. Its next-generation transducer and powerful Class-D amplifier produce sound pressure levels up to 135 dB with impressive clarity and headroom. Ideal for small to mid-sized venues, the SUB 18-AX is perfect for portable setups and serves as the ideal complement to 10", 12", or 15" loudspeakers. It centralizes speaker management, offering dual crossovers, 8-band EQs, routing, delays, cardioid configurations, and recallable crossover presets. The polyurea-coated all-wood cabinet includes a sealed Powercon True1 Top connector for durability.

Features:

• 2200 Watt Class-D Amplifier
• 135 dB MAX SPL
• 18” Woofer, bass reflex housing
• Digital Crossover w/ Presets
• Multi-ply hardwood polyurea-coated
• LiveRemote App
• Dual XLR/TRS combo Input + Link, Dual XLR Xover Out
• Bass Motion Control excursion management
• Powercon True1 Top Sealed AC Connector

Specifications:

• Acoustical Specifications:
• Frequency Response: 35 Hz ÷ 120 Hz
• Max SPL @ 1m: 135 dB
• Transducers:
• Woofer: 1 x 18'', 4.0'' v.c
• Input/Output Section:
• Input signal: balanced/unbalanced
• Input connectors: Combo XLR/Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu
• Processor Section:
• Protections: Thermal
• Limiter: Soft Limiter
• Controls: Encoder for Volume control and data entry, Touch Screen for parameter management and monitoring
• Power Section:
• Total Power: 2200 W Peak, 1100 W RMS
• Cooling: Convection
• Connections: Powercon TRUE1 TOP IN/OUT
• Physical Specifications:
• Cabinet/Case Material: Plywood
• Handles: 1 handle per side
• Pole mount/Cap: Yes
• Grille: Steel
• Color: Black
• Size:
• Height: 693 mm / 27.28 inches
• Width: 505 mm / 19.88 inches
• Depth: 685 mm / 26.97 inches
• Weight: 43.8 kg / 96.56 lbs
