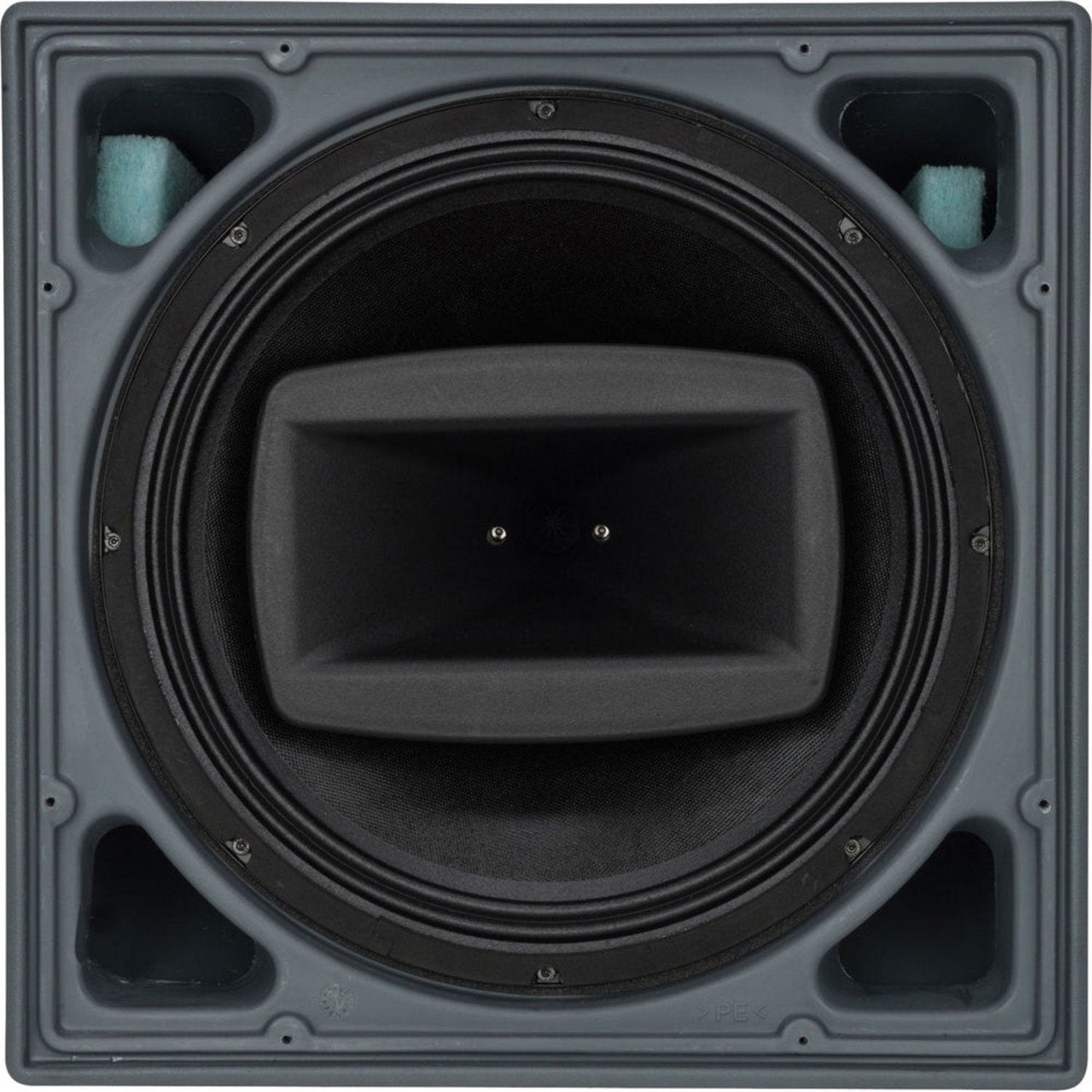

RCF P 3115T Passive 15 Inch 2-Way Coaxial Weatherproof Speaker - 300 Watt RMS - Grey

The P 3115T is a weatherproof full range, wide-dispersion, coaxial two-way loudspeaker system for a variety of professional indoor or outdoor applications. The speaker can be installed individually or coupled in array configurations. The low-frequency transducer is a 15" woofer with a 3" voice coil. The high-frequency section combines a 1.3" RCF Precision compression driver with a 2.5" diaphragm assembly centrally mounted in the throat of the LF driver and loaded on a constant directivity CMD horn for smooth, wide dispersion.

The P3115-T features a selectable line transformer for 70 - 100 volt applications, built-in LICC crossover, and Active Mosfet Compression Driver Protection (AMCDP). The single-piece roto-molded cabinet is fully UV protected and meets IP-55 standard requirements, equipped with M10 brass inserts (12x), and a durable and corrosion-resistant 316P stainless steel U-Bracket with spacers (2x) for 90° mounting. The aluminum grille cover is powder coated with water-repellent backing material and has a rotatable logo plate.

Features:

• 300 W RMS power handling
• 129 dB max SPL
• 75 Hz - 20000 Hz frequency range
• 15" neodymium woofer, 2.5" v.c.
• 1.75" v.c. neodymium compression driver
• 90° x 60° constant directivity
• Weatherproof IP55 cabinet with UV protection
• Aluminum grille
• AISI 316L stainless steel bracket
• Built-in 100V line transformer

Specifications:

• Acoustical Specifications:
• Frequency Response (-10dB): 75 Hz - 20000 Hz
• Max SPL @ 1m: 129 dB
• Horizontal coverage angle: 90°
• Vertical coverage angle: 60°
• Directivity index Q: 13
• System Sensitivity: 98 dB
• Power Section:
• Amplification: Full Range
• Nominal Impedance: 16 ohm
• Power Handling: 300 W
• Peak Power Handling: 1200 W PEAK
• Recommended Amplifier: 600 W
• Protections: Dynamic active mosfet
• Crossover Frequencies: 1300 Hz
• Transducers:
• Compression Driver: 1.0", 1.5" v.c
• Woofer: Coaxial 15", 2.5" v.c
• Input/Output Section:
• Input connectors: Neoprene Cable
• Constant Voltage Transformer: 100 V
• Power selection 1: 120 W - 83 ohm
• Power selection 2: 60 W - 167 ohm
• Power selection 3: 30 W - 333 ohm
• Standard Compliance:
• IP protection grade: IP 55
• Safety agency: CE compliant
• Physical Specifications:
• Cabinet/Case Material: PE Low Density
• Hardware: 12 x M10 inserts + U-brackets and pair of spacers
• Grille: Aluminum with waterproof clothing
• Color: Grey
• Size:
• Height: 463 mm / 18.23 inches
• Width: 463 mm / 18.23 inches
• Depth: 433 mm / 17.05 inches
• Weight: 18.4 kg / 40.57 lbs
• Shipping Information:
• Package Height: 530 mm / 20.87 inches
• Package Width: 490 mm / 19.29 inches
• Package Depth: 490 mm / 19.29 inches
• Package Weight: 23.2 kg / 51.15 lbs
