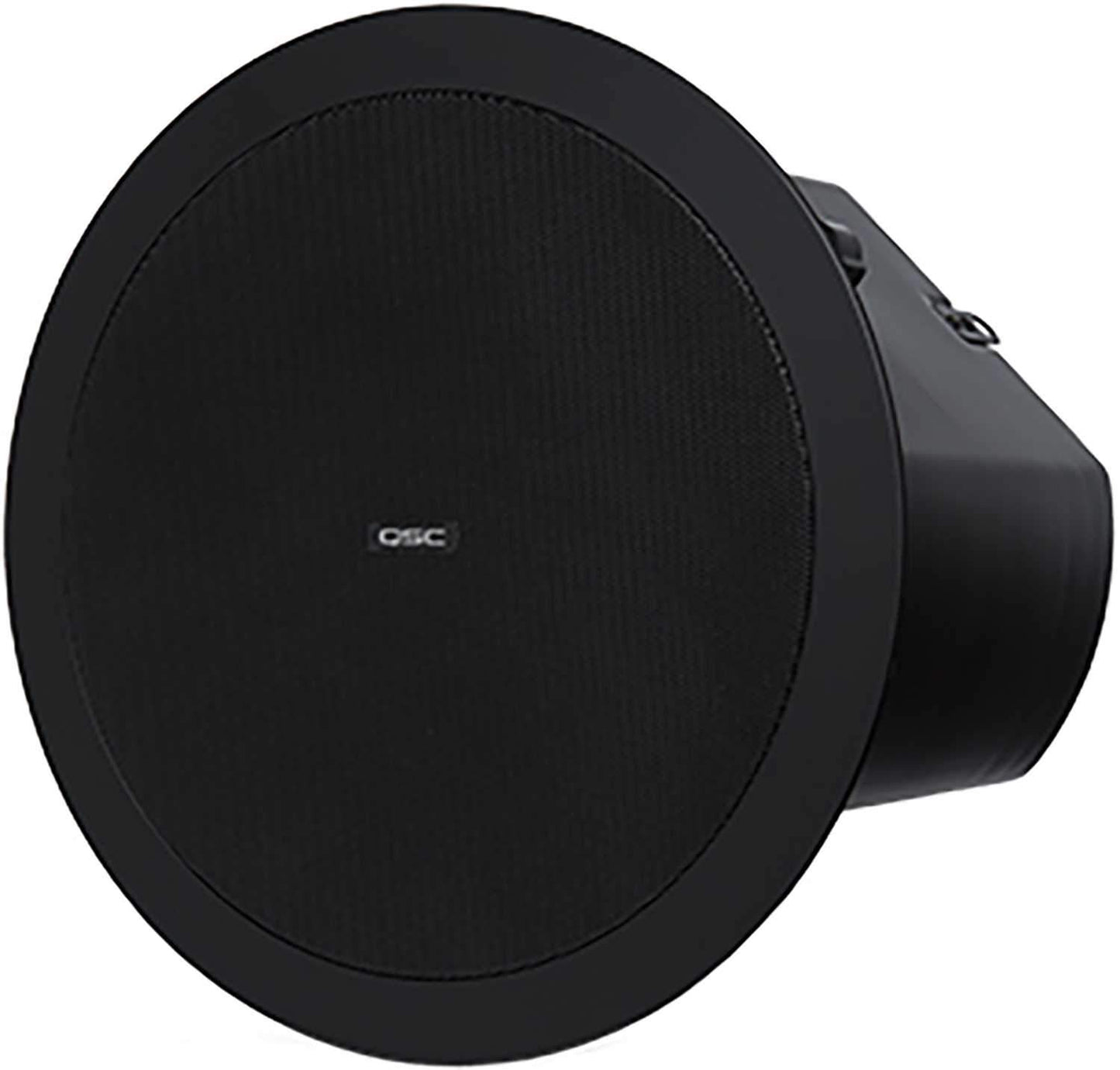

QSC AD-C6T-BK 6-Inch Two-way Ceiling Speaker

Features

• Consistent tonal characteristics across the entire AcousticDesign family in both surface or ceiling applications
• DMT (Directivity Matched Transition) waveguide ensures smooth, uniform frequency response over the coverage area
• Snap-fit magnetic grille
• 3x double stepped, long travel dog-ear blind mount system
• Advanced Intrinsic Correction voicings available via Q-SYS networked audio processing platforms, including CXD amplifiers
• Low-saturation and low-loss 70/100V transformers with 16ohms bypass
• Blemish-free removable logo
• Removable conduit cover plate, also available as accessory for pre-install wiring
• UL1480 and UL2043 certified EN54-24 Type A
• Available in black (RAL 9011) or white (RAL 9010)
• Complete EASE, CF2, CAD, & BIM information available online

Specifications:

• Effective frequency range1: 65 Hz ñ 20 kHz
• Rated noise power / voltage2: 60 watts / 31 volts (rms)
• Sensitivity [dB]3: 88
• Sensitivity at 4m, 100V maximum tap: TBD
• Rated coverage (-6 dB)4: 135? conical DMT
• Directivity factor (Q): 6.5
• Directivity index (DI) [dB]: 8
• Maximum continuous SPL [dB]5: 106
• Maximum peak SPL [dB]5: 112
• Nominal impedance [ohms]: 16
• Recommended amplifier: 120 watts
• Transformer taps / impedance:
• 16ohms (in bypass setting)
• 7.5W (70V); 15W (100V) Tap: 667ohms
• 15W (70V); 30W (100V) Tap: 333ohms
• 30W (70V); 60W (100V) Tap: 167ohms
• 60W (70V); N/A (100V) Tap: 83ohms
• LF transducer: 165 mm [6.5-inch] weather resistant paper cone woofer
• HF transducer: 25 mm [1-inch] aluminum dome tweeter
• Input connector type: Euroblock connector with parallel output
• Enclosure material: ABS baffle on powder coated steel back can
• Grille material: Powder coated steel
• Ingress protection: IP-34
• Operating environment: Designed for indoor use
• Operating temperature range: -20 to 50? C [-4 to 122? F]
• Cutout dimension: ÿ 245 mm [ÿ 9.65-inch]
• Net weight: 4.3 kg [9.5 lb]
• Product dimensions (Diameter x Height): ÿ 280 x 237 mm [ÿ 11.02 x 9.32-inch]
• Shipping weight: 12.6 kg [27.8 lb] (pair packed)
• Shipping dimensions (H x W x D): 330 x 737 x 381 mm [13 x 29 x 15-inch] (pair packed)
• Included accessories: C-ring and tile rails, rail screws, euroblock connector, cut-out template, tether grille
• Optional accessories:
• AD-MR6 (pre-install mud ring)
• AD-CC6 (pre-install conduit cover)
• Safety Agency:
• EN54-24: 2008 type A (No. pending)
• UL1480, UL2043, NFPA90, NFPA70 suitable for use in air handling spaces. Transformer UL registered per UL1876, ROHS, C-Tick X000, CE compliant. Baffle meets UL94-V0 and UL94-5VB flammability rating; in accordance with IEC60849 / EN60849 systems.
• 1. Half Space, -10dB from on-axis sensitivity
• 2. IEC60268-5 50hz high passed noise at 2 Hrs, 16ohms
• 3. Free-field, on-axis, 2.83V, 1m
• 4. -6 dB from on-axis, 500 Hzñ5 kHz average
• 5. Calculated from rated noise voltage and sensitivity
