PreSonus Revelator Dynamic USB Microphone

Every musician knows the secret to a great sound is a great microphone, and at its core, Revelator™ delivers the professional performance you’d expect from a studio microphone. But we didn’t stop there. Revelator’s mixer features compression and EQ modeled on world-class analog processors. An independent reverb bus lets you add just the right amount of shimmer to your sound. Two stereo loopback channels make it easy to add backing tracks and more. When you’re looking for the ultimate live streaming and home recording set-up for singer-songwriters, look no further than Revelator.

Features:

• Professional bus-powered USB-C^®-compatible microphone for podcasting, streaming, vlogging, gaming, home recording, and more
• Three different patterns to choose from:
  • Cardioid—for single-source applications
  • Figure 8—perfect for interviews and collaboration
  • Omnidirectional—to pick up the entire room
• Headphone output with volume control and zero-latency monitoring
• 96 kHz / 24-bit operation for pristine audio recording

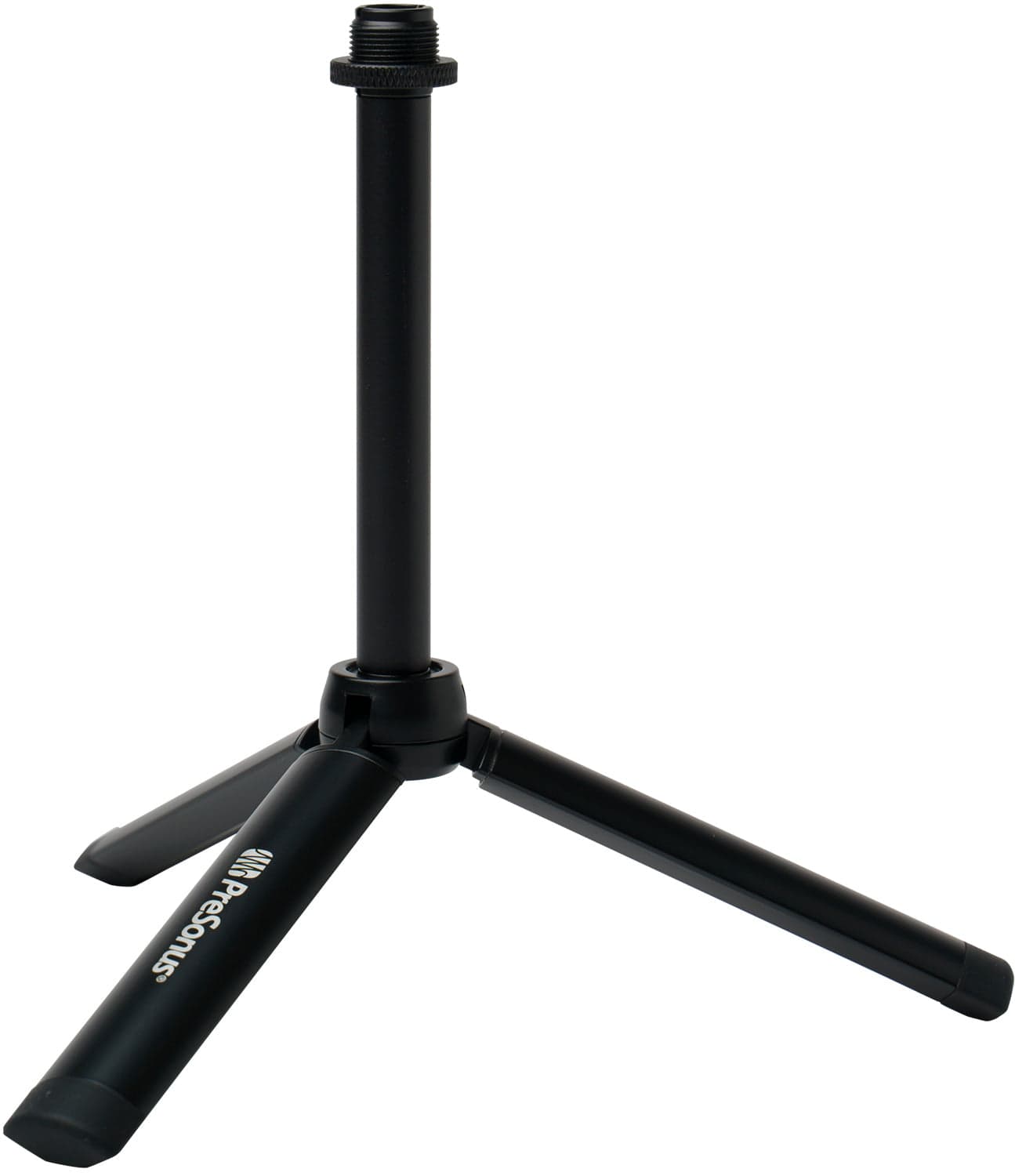

• Elegant desktop stand with built-in cable management
• Unique Multi Mode configures Revelator as three stereo devices—Revelator, Revelator Loopback 1, and Revelator Loopback 2—to make recording Zoom calls or streaming gameplay a breeze
• 6-in/6-out audio interface
  • 2 dedicated input streams for the Revelator microphone
  • 2 dedicated output streams for headphone monitoring
  • 4-in/4-out virtual streams for application-to-application recording and playback with loopback options for macOS and Windows
• Built-in Fat Channel with EQ, compressor, gate, and limiter plus voice effects, and reverb, with 8 easy-to-use factory presets and 8 user presets.
  • Access up to 4 presets from Revelator; additional presets are available in Universal Control
• Universal Control Surface software mixer with effects editing and hardware control
• Studio One^® Artist included
• Studio Magic software bundle included
• Ableton^® Live Lite included
• macOS^® and Windows^® compatible
• iOS^® and iPadOS^® compatible (may require a Camera Connection Kit)
• Chromebook compatible

Specifications:

• Microphone:
  • Type: Mono Condenser
  • Polar Pattern: Cardioid, Bidirectional (Figure 8), Omnidirectional
  • Frequency Response (±3.0 dB): 20 Hz to 20 kHz
  • Sensitivity: 1 mV/Pa
  • Max SPL: 110 dB <3% THD
• Headphone Output:
  • Type: 1/8" TRS active stereo
  • Power Output (RMS): 22.6 mW (16Ω)
  • THD: 0.008%
  • Frequency Response: 20 Hz to 20 kHz
  • Impedance: 16Ω
  • Dynamic Range: 77.5 dB
• Audio Interface:
  • Type: USB-C® compatible USB 2.0
  • Sample Rate: 44.1, 48, 88.2, and 96 kHz (​Note: 44.1 and 48 kHz only on macOS while in Multi Mode)
  • Bit Depth: 24-bit
  • Power: USB Bus Power
  • Hardware Controls: Direct Monitor, Mic Gain, Headphone Level, Mute, Preset Select
  • Software Controls: DirectMic Gain, Pattern Select, Monitor Mix, Preset Management
  • Onboard DSP:
    • PreSonus Fat Channel: High Pass Filter, Noise Gate, 3 Compressor models, 3 EQ models, and Limiter
    • Voice Effects: Comb Filter, Delay, Doubler, Ring Modulator, Vocoder
    • Reverb
• Physical:
  • Dimensions (HxWxD): 8.875" x 5.125" x 5.125" (225 x 130 x 130 mm)
  • Weight: 1.6 lbs. (0.73 kg)
