Pioneer DJ DM-50D 5-Inch Powered Studio Monitors (Pair)

Set the Scene:
The DM-50D speakers deliver balanced, punchy bass sound and they can pump out extra power thanks to the new Class D amplifier and 5-inch woofer in each unit. Flick the switch to change from DJ mode to Production mode and the DSP settings will automatically create the best sound for each application.

2-way sound mode – optimized for DJing and music production:
There’s no need to decide whether you want a set of monitors that are best for DJing or making music, because the DM-50D speakers are perfect for both. Just flip the switch to choose either DJ mode or Production mode and the DSP settings will be optimized for the task, leaving you free to concentrate on your mix.

Easy to use with different DJ or production equipment:
With RCA, mini jack, and the newly added TRS input terminals, you can connect different kinds of gear such as DJ controllers and mixers, or the laptop or soundcard you use. Connecting your headphones is simple via the socket on the front panel and the level knob is right in front of you too.

Class D amplifier:
Each DM-50D speaker produces pure, balanced bass sound thanks to a new Class D amplifier with 96kHz sampling DSP.

DECO convex diffusers:
Another advancement from the DM-40 model comes in the updated design of the DECO convex diffusers which help deliver crystal-clear high frequencies in every direction, so you can enjoy a wide sweet spot and 3D stereo sound wherever you are in the room.

Time alignment:
The woofer and tweeter are perfectly aligned so you’ll hear all sound frequencies clearly

Grooved ducts:
The grooves on the ducts reduce air friction so bass is tight and punchy, even if you position the speakers against a wall. Plus, the curved front edges provide maximum rigidity and minimum resonance for clean audio at any volume level.

5-inch woofer:
The 5-inch woofer creates powerful sound without distorting, even if you pump up the volume.

Specifications:

• Type
  • 2-way bass reflex, active monitor speakers
• Tweeter
  • 3/4” (19 mm) soft dome
• Woofer
  • 5" (127 mm) fiberglass cones
• What's in the box
  • DM-50D
  • Power cord
  • Audio converter cable (3.5 mm stereo mini plug to RCA)
  • Speaker cord
  • Bottom cushion
  • Quick Start Guide
  • Precautions for Use
  • Warranty
• Dimensions
  • Left Ch: 175 x 262 x 257 mm / 6.89” x 10.32” x 10.12”
  • Right Ch: 175 x 262 x 247 mm / 6.89” x 10.32” x 9.72”
• Weight
  • Left Ch: 3.9 kg / 8.6 lbs.
  • Right Ch: 3.5 kg / 7.7 lbs.
• Power Supply
  • AC 100-240 V, 50 Hz / 60Hz
• Amplifier Output
  • Left Ch: 25 W / 4 Ω
  • Right Ch: 25 W / 4 Ω
• Impedance
  • 10 kΩ
• Enclosure
  • Bass reflex
• Enclosure material
  • MDF vinyl laminate
• Power Consumption
  • 25 W
• Power consumption during standby mode
  • 0.3 W or less

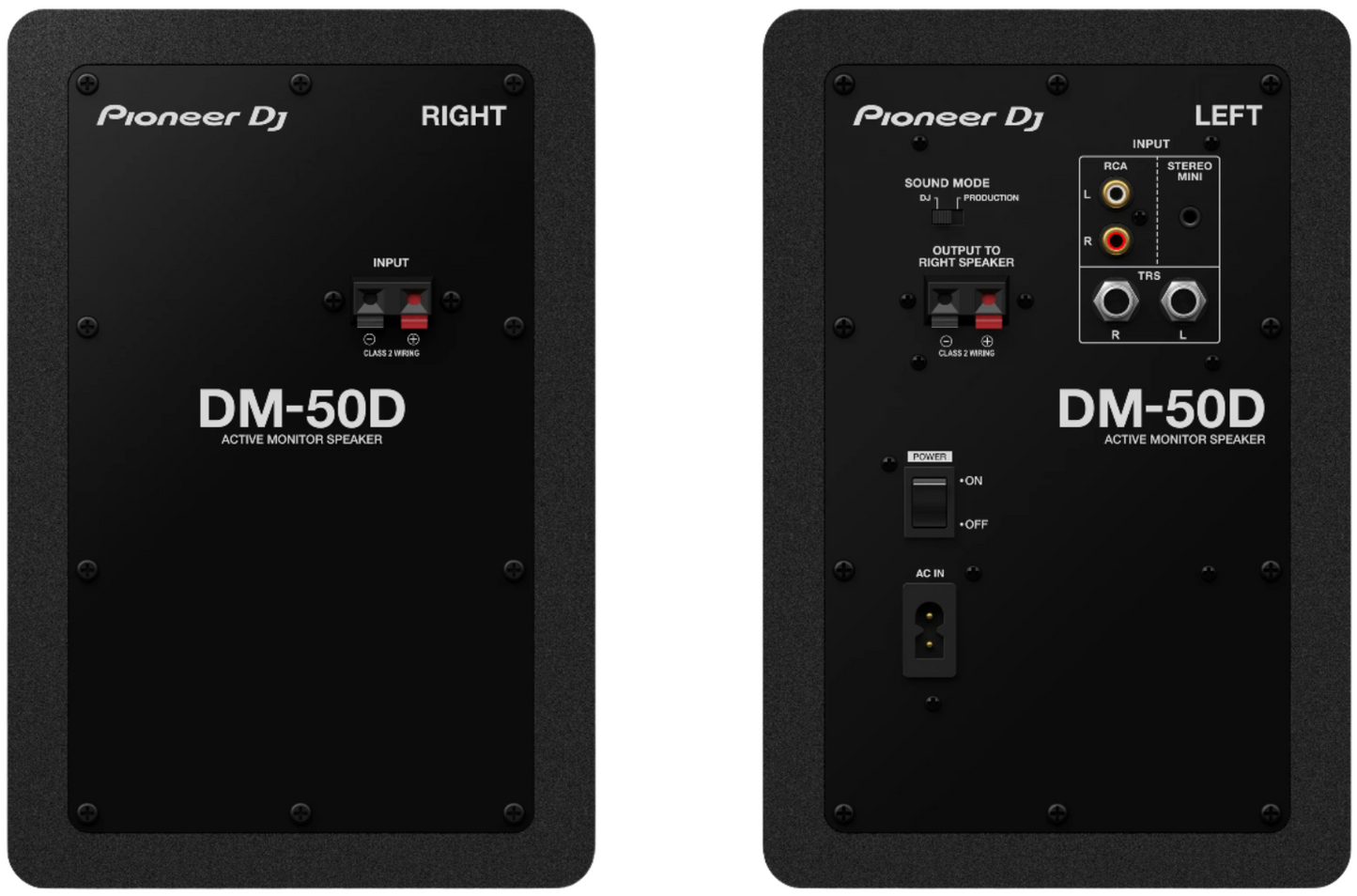

• Terminals
  • Inputs
    • 1/4” TRS jack x 1 (balanced input)
    • RCA pin jack x 1 (unbalanced input)
    • 3.5 mm stereo mini jack x 1 (unbalanced input)
  • Outputs
    • 3.5 mm stereo mini jack x 1
