Neumann U-87AI-MT K 67 Capsule Multi-Pattern Microphone with Pop Filter in Woodbox - Matte Black
A definitive legend for decades, the black Neumann U 87 Ai MT is a large-diaphragm condenser microphone offering the timeless and special sound that remains highly coveted for singers, voice-over artists, announcers, producers, and recording engineers to this day. By combining the same dual-diaphragm capsule design as the heralded U 67 with FET circuitry and a transformer-balanced output, the U 87 Ai retains the voicing that made the U 87 famous while ensuring low-noise performance and optimal signal purity.
Features:
- Studio Standard for Vocals & Instruments
- Cardioid, Omni & Figure-8 Polar Patterns
- Dual-Diaphragm Condenser Capsule
- Low-Noise FET Circuit
- Transformer-Balanced Output
- -10 dB Pad
- Switchable Low-Cut Filter
- Optional Shockmount Reduces Vibration
- Includes Wooden Box
- 48V Phantom Powered
Specifications:
- Microphone:
- Primary Applications: Studio Recording, Broadcast
- Form Factor: Large Diaphragm Mic / Stand/Boom Mount
- Intended Sound Sources: Vocals, Speech/Voice-Over, Instruments
- Sound Field: Mono
- Element Type: Condenser
- Polar Pattern: Cardioid / Figure-8 / Omnidirectional
- Pattern Selection: Switched (Adjustable on Mic)
- Orientation: Side Address
- Circuitry: Solid-State (FET)
- Pad: -10 dB
- High-Pass Filter: Yes
- On-Board Controls: High-Pass Filter, Pad, Polar Pattern
- Performance:
- Frequency Range: 20 Hz to 20 kHz
- Maximum SPL:
- Cardioid: 117 dB SPL (1 kHz, .5% THD)
- Cardioid: 127 dB SPL (1 kHz, .5% THD, with Pad)
- Impedance: 200 Ohms
- Load Impedance: 1000 Ohms
- Sensitivity:
- Omnidirectional: 20 mV/Pa at 1 kHz into 1 Kilohms
- Cardioid: 28 mV/Pa at 1 kHz into 1 Kilohms
- Figure-8: 22 mV/Pa at 1 kHz into 1 Kilohms
- Signal-to-Noise Ratio:
- Omnidirectional: 79 dB A-Weighted
- Cardioid: 82 dB A-Weighted
- Figure-8: 80 dB A-Weighted
- Omnidirectional: 68 dB CCIR
- Cardioid: 71 dB CCIR
- Figure-8: 69 dB CCIR
- Equivalent Noise Level:
- Omnidirectional: 15 dB A-Weighted
- Cardioid: 12 dB A-Weighted
- Figure-8: 14 dB A-Weighted
- Omnidirectional: 26 dB CCIR
- Cardioid: 23 dB CCIR
- Figure-8: 25 dB CCIR
- Connectivity:
- Analog Output: 1x XLR 3-Pin Male (on Mic)
- Power:
- Power Sources: Phantom Power
- Physical:
- Color: Black
- Dimensions: ø: 2.2 x L: 7.9" / ø: 5.6 x L: 20.1 cm
- Weight: 1.1 lb / 500 g
- Bundle Include:

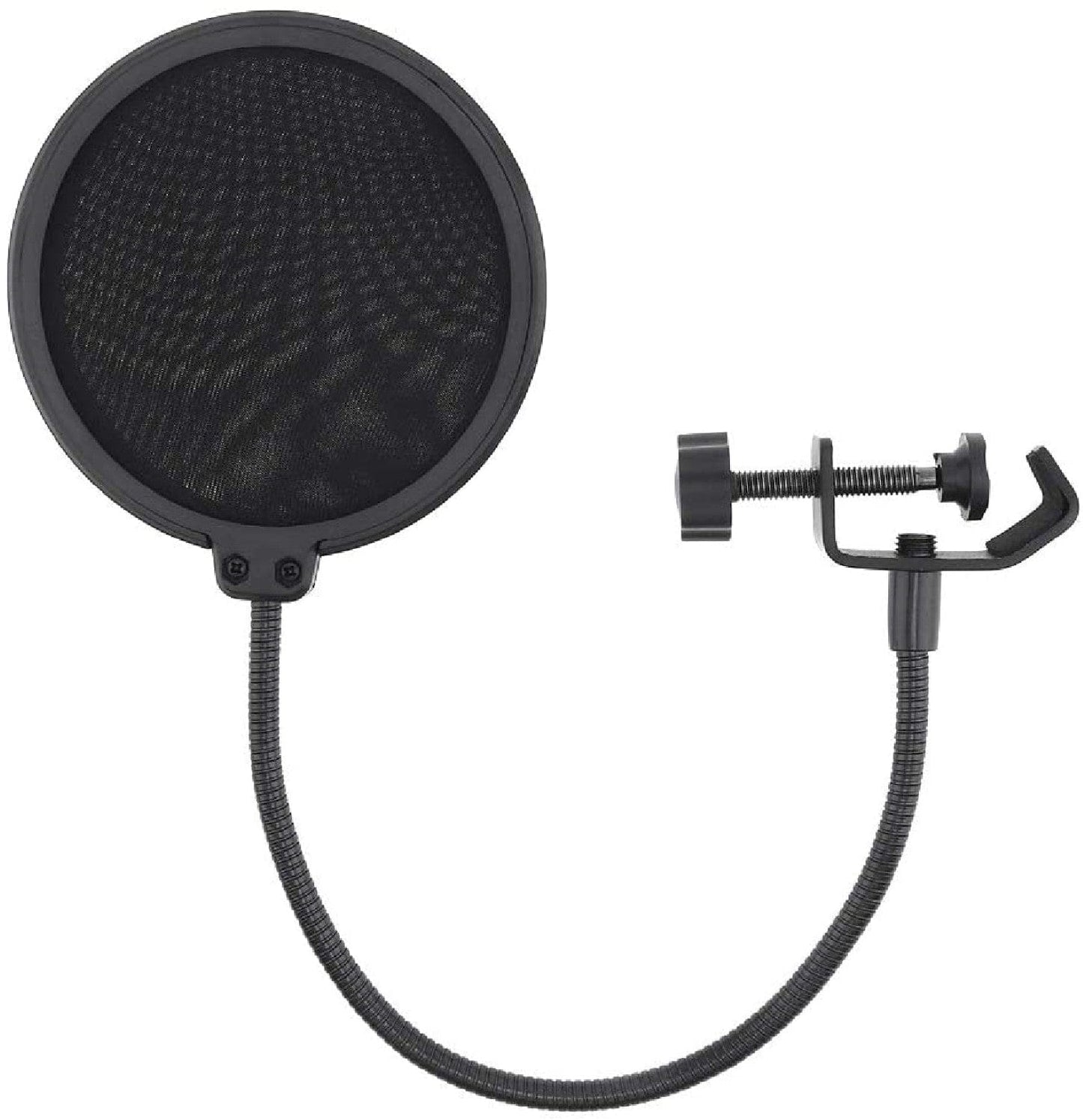

- Pop Filter
- Neumann Wood Box
