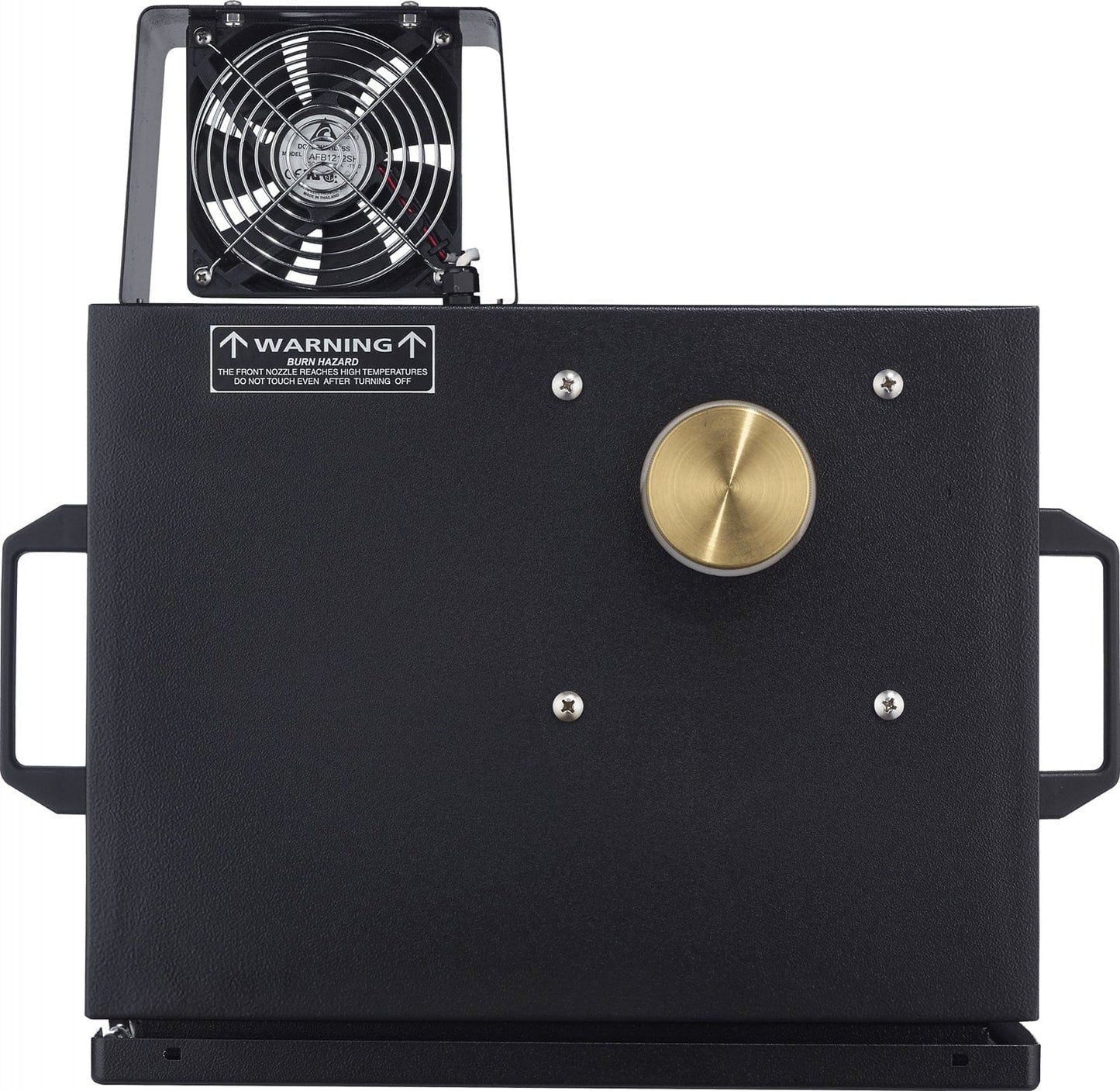

MDG ATMe WPE Weather Proof Enclosure - IP55 Single High Output Haze Generator
The ATMe WPE is the weatherproof version of the ATMe haze generator, and the perfect solution for theme parks, outdoor festivals and events, come rain or shine.
Features:
-
EXTREMELY QUIET OPERATION - Noise emission (at 1m/3.3ft): 45.4 dB in standard mode. The theatre mode reduces the fan speed depending on haze output level.
-
LOWEST FLUID CONSUMPTION ON THE MARKET - At 1.38 bar (20 psi) ATMe uses only 55 ml (1.86 oz) of fluid per hour to give a total running time of 46 hours from its 2.5 L (0.66 US gallon) reservoir.
-
LONGEST HANGING TIME - Our MDG Neutral fluid is specially created for the longest hanging time.
-
VARIABLE HAZE OUTPUT - 0-100% haze output control from your DMX / RDM device. 100% duty cycle.
-
APS™ (AUTOMATIC PURGING SYSTEM) - This system purges the heating module after the first heating cycle and after every emission of haze preventing residual build up and clogging.
-
NUMEROUS CONTROL OPTIONS - 4-button LCD user interface, 3 standard USITT DMX512 channels, XLR-5 connectors, RDM compliant.
-
WEATHERPROOF ENCLOSURE - With its weatherproof and dust-resistant enclosure this IP55-rated WPE version is ideal for outdoor use.
Specifications:
- Fluid consumption:
- 55 ml (1.86 oz) per hour at 1.38 bar (20 psi)
- 110 ml (3.3 oz) per hour at 2.76 bar (40 psi)
- CO2 consumption:
- 0.18 kg (0.4 lb) per hour at 1.38 bar (20 psi)
- 0.36 kg (0.8 lb) per hour at 2.76 bar (40 psi)
- Reservoir capacity: 2.5 L (0.66 US gallon)
- APS™ (Automatic Purging System): Standard
- Haze colour: Pure white
- Particle size: 0.5 - 0.7 micron
- Total running time:
- 46 hours at 1.38 bar (20 psi) with a full tank
- 23 hours at 2.76 bar (40 psi) with a full tank
- Warm-up time: 8 minutes (maximum)
- Fluid type: MDG Neutral
- Operating voltage: 100 - 250 VAC, 50/60 Hz single phase
- Power consumption: 715 W
- Noise emission: 45.4 dB (A) at 1 m (3.3 ft)
- Dimensions:
- Length: 46.7 cm (18.4”)
- Width: 48.8 cm (19.2”)
- Height: 60.7 cm (23.9”)
- Weight: 26.8 kg (59 lb)
- Shipping weight: 35.8 kg (79 lb) with flight case
- Approval: CB, CSA and UL Certified. CE Declaration
- Fluid consumption:
- 55 ml (1.86 oz) per hour at 1.38 bar (20 psi)
- 110 ml (3.3 oz) per hour at 2.76 bar (40 psi)
- CO2 consumption:
- 0.18 kg (0.4 lb) per hour at 1.38 bar (20 psi)
- 0.36 kg (0.8 lb) per hour at 2.76 bar (40 psi)
- Reservoir capacity: 2.5 L (0.66 US gallon)
- APS™ (Automatic Purging System): Standard
- Haze colour: Pure white
- Particle size: 0.5 - 0.7 micron
- Total running time:
- 46 hours at 1.38 bar (20 psi) with a full tank
- 23 hours at 2.76 bar (40 psi) with a full tank
- Warm-up time: 8 minutes (maximum)
- Fluid type: MDG Neutral
- Operating voltage: 100 - 250 VAC, 50/60 Hz single phase
- Power consumption: 715 W
- Noise emission: 45.4 dB (A) at 1 m (3.3 ft)
- Dimensions:
- Length: 46.7 cm (18.4”)
- Width: 48.8 cm (19.2”)
- Height: 60.7 cm (23.9”)
- Weight: 26.8 kg (59 lb)
- Shipping weight: 35.8 kg (79 lb) with flight case
- Approval: CB, CSA and UL Certified. CE Declaration
