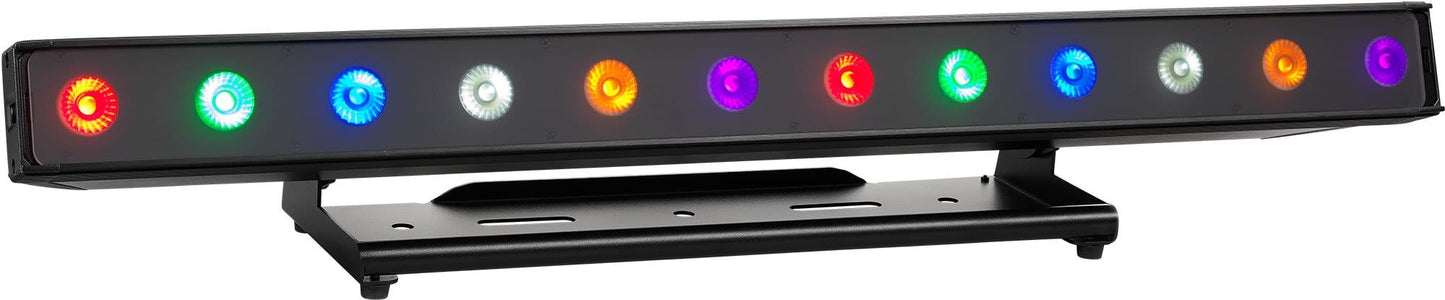

Martin RUSH BATTEN 1 HEX RGBAW+UV LED Wash Bar
The RUSH BATTEN 1 HEX is an ultra-bright 12-cell batten color + UV wash fixture with full pixel control. Featuring 12 watt RGBAW+UV 6-in-1 LEDs, the RUSH BATTEN 1 HEX can providing intense light for color, white, or blacklight applications. With available pixel mapping of the individual LEDs and controllable electronic dimming, strobe, and pulse effects, designers can achieve a variety of exciting looks. A removable diffuser/lens increases the beam angle from 25° to 32°, and brackets are available for floor or truss mounting. The LED source and rugged, lightweight construction make it ideal for live shows, TV events, stage, concerts, and nightclubs.
- Bright batten with 12 individually-controllable RGBAW+UV LEDs
- Electronic dimming, strobe, and pulse effects
- 25° and 32° beam angles available
Features:
- 12-cell batten with RGBAW+UV 6-in-1 LEDs
- Full pixel control of individual LEDs
- Removable diffuser/lens that increases the beam angle from 25° to 32°
- Electronic dimming and Strobe
- Brackets are available for floor or truss mounting
- Lightweight construction (8 kg / 15 lbs.)
Specifications:
Physical
- Dimensions (L x W x H): 900 x 100 x 200 mm (35.4 x 3.9 x 7.9 in.)
- Weight: 6.8 kg (15 lbs.)
Dynamic Effects
- Dimming: 0 – 100%, coarse & fine control
- Shutter: Strobe & pulse effects, instant open and blackout
- Color: RGBAWUV (6-in-1) color mixing
Control and Programming
- Control system: USITT DMX512/1990 with RDM
- DMX channels: 13, 80
- RDM compliance: ANSI/ESTA E.120
- Interface: Control panel with backlit LCD display
Optics
- Beam angle: 25° (without diffuser), 33° (with diffuser)
- Field angle: 44° (without diffuser), 63° (with diffuser)
Construction
- Color: Black
- Housing: Extruded aluminium, thermoplastic end caps
- IP rating : IP 20
Installation
- Mounting points : Adjustable bracket, surface or truss mount
- Location: Indoor location only
- Orientation: Any
- Minimum distance to illuminated surfaces: 0.5 m (20 in.)
- Minimum distance to combustible materials: 0.1 m (4 in.)
Connections
- AC power input/output: Neutrik PowerCon
- DMX & RDM data in/out : 3-pin and 5-pin locking XLR
-
Physical
- Dimensions (L x W x H): 900 x 100 x 200 mm (35.4 x 3.9 x 7.9 in.)
- Weight: 6.8 kg (15 lbs.)
- Dimming: 0 – 100%, coarse & fine control
- Shutter: Strobe & pulse effects, instant open and blackout
- Color: RGBAWUV (6-in-1) color mixing
- Control system: USITT DMX512/1990 with RDM
- DMX channels: 13, 80
- RDM compliance: ANSI/ESTA E.120
- Interface: Control panel with backlit LCD display
- Beam angle: 25° (without diffuser), 33° (with diffuser)
- Field angle: 44° (without diffuser), 63° (with diffuser)
- Color: Black
- Housing: Extruded aluminium, thermoplastic end caps
- IP rating : IP 20
- Mounting points : Adjustable bracket, surface or truss mount
- Location: Indoor location only
- Orientation: Any
- Minimum distance to illuminated surfaces: 0.5 m (20 in.)
- Minimum distance to combustible materials: 0.1 m (4 in.)
- AC power input/output: Neutrik PowerCon
- DMX & RDM data in/out : 3-pin and 5-pin locking XLR
